DTC P2009: Intake Manifold Runner Control Circuit Low (Bank 1); DTC P2010: Intake Manifold Runner Control Circuit High (Bank 1): Procedure

1. Inspect the intake manifold.Refer to ON-VEHICLE INSPECTION - Step 3 .

NG → See step   4

OK: Go to next step

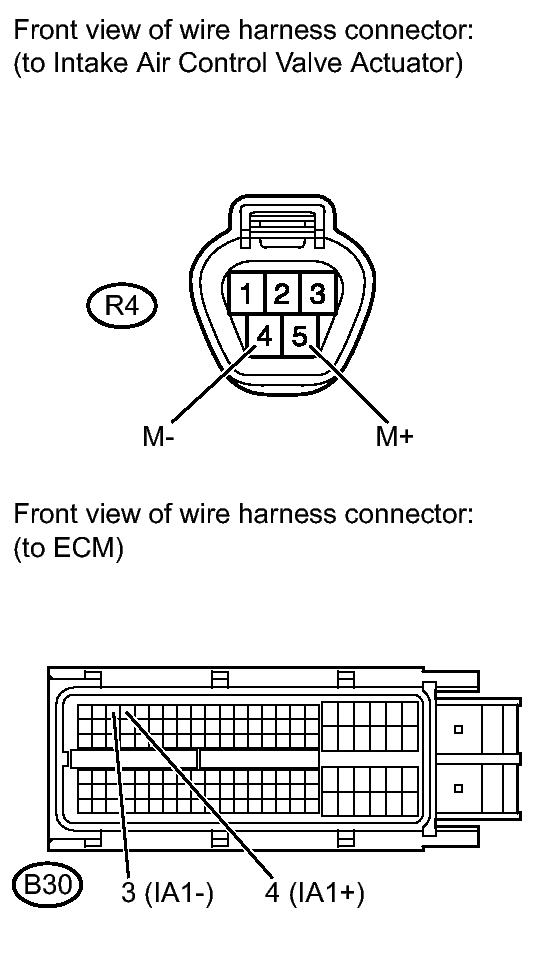

Fig 1: Checking Harness And Connector (ECM - DC Motor For TCV)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the ECM connector.
2. Disconnect the intake air control valve actuator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for open):

   Tester Connection	Condition	Specified Condition
   B30-3 (IA1-) - R4-4 (M-)	Always	Below 1 Ω
   B30-4 (IA1+) - R4-5 (M+)	Always	Below 1 Ω

   Standard Resistance (Check for short):

   Tester Connection	Condition	Specified Condition
   B30-3 (IA1-) or R4-4 (M-) - Body ground	Always	10 kΩ or higher
   B30-4 (IA1+) or R4-5 (M+) - body ground	Always	10 kΩ or higher

4. Reconnect the ECM connector.
5. Reconnect the intake air control valve actuator connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs.Refer to DTC CHECK / CLEAR .
5. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
6. Read DTCs.
   RESULT



   Display (DTC Output)	Proceed to
   P2009 or P2010	A
   No DTC	B

B → See step   5

A → See step   6
