Confirmation Driving Pattern
HINT:

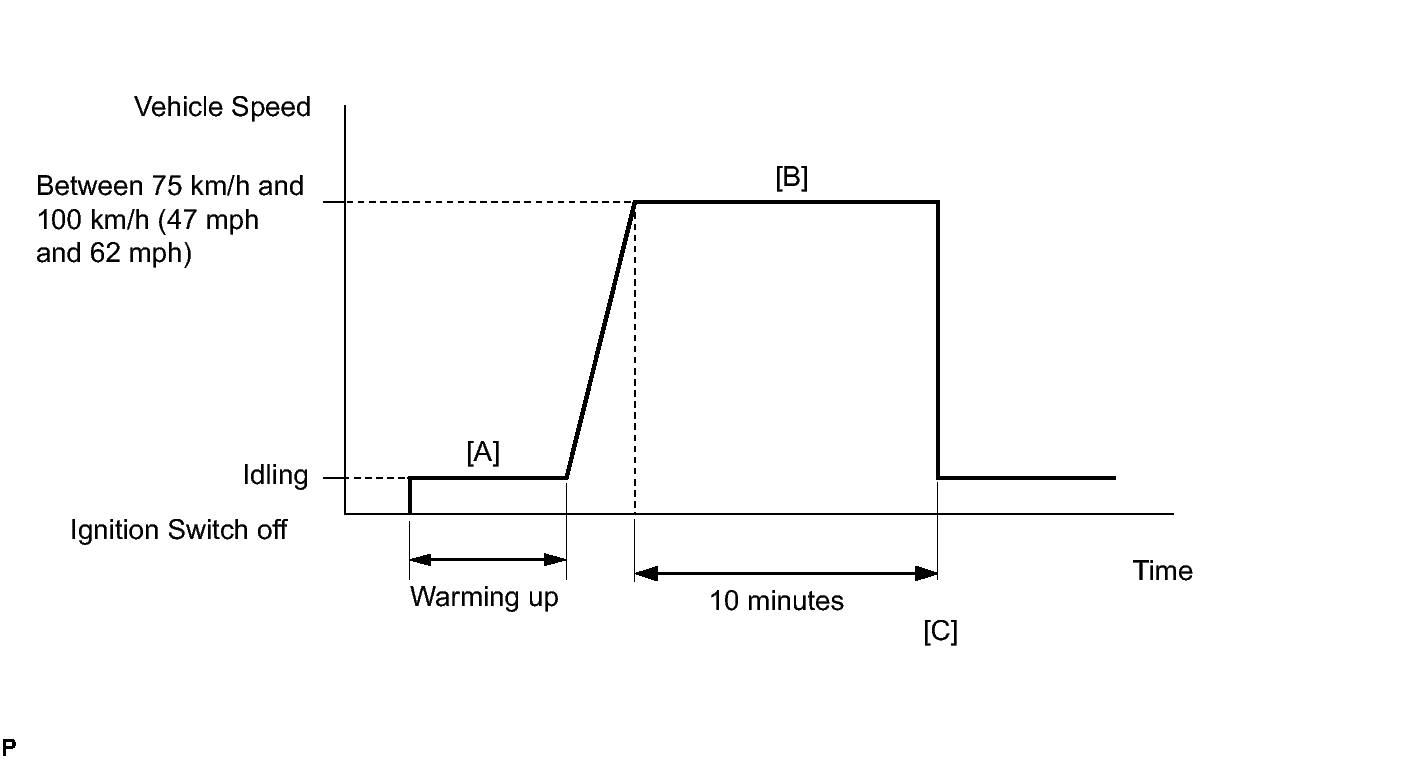

Performing this confirmation pattern will activate the A/F sensor response monitor.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream ON.
- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation) [A].
- Enter the following menus: Powertrain / Engine and ECT / Monitor / O2 Sensor / Details.
- Check that RES RATE B1S1 and RES RATE B2S1 are Incomplete.
- Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or higher) [A].
- Drive the vehicle at a constant speed of between 75 and 100 km/h (47 and 62 mph) for 10 minutes [B].
- Check the monitor result values on Techstream by entering the following menus: Powertrain / Engine and ECT / Monitor / O2 Sensor / Details / RES RATE B1S1 and B2S1.
- If the values indicated on the Techstream do not change, perform READINESS MONITOR DRIVE PATTERN for the A/F sensor and heated oxygen sensor.Refer to READINESS MONITOR DRIVE PATTERN .
- Note the value of the Monitor Result.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P2A00.
- Check the DTC judgment result [C].
Tester Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
If the judgment result shows ABNORMAL, the system has a malfunction.
- If the test result is N/A, enter the following menus: Powertrain / Engine and ECT / Trouble Code / Pending.
- Read Pending DTCs.
HINT:
If a pending DTC is output, the system is malfunctioning.
- If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs.Refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
