Unable to Lock Steering Wheel: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Read the DTCs of the certification ECU by following the prompts displayed on the Techstream screen.

   OK

   No DTCs related to the certification ECU are output.

NG → GO TO RELEVANT DTC

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Read the DTCs of the main body ECU by following the prompts displayed on the Techstream screen.

   OK

   No DTCs related to the main body ECU are output.

NG → GO TO RELEVANT DTC

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Within 10 seconds after the engine is started, read the Data List menu of the certification ECU, and check the steering lock command reception record.
   SMART KEY



   Item	Measurement Item / Range	Normal Condition	Diagnostic Note
   Lock/Unlock Receive	Steering lock command reception record / Yes or No	Yes: Steering lock/unlock signal received No: Steering lock/unlock signal not received	-

   OK

   Yes is displayed on the Techstream screen.

NG → See step   5

OK: Go to next step

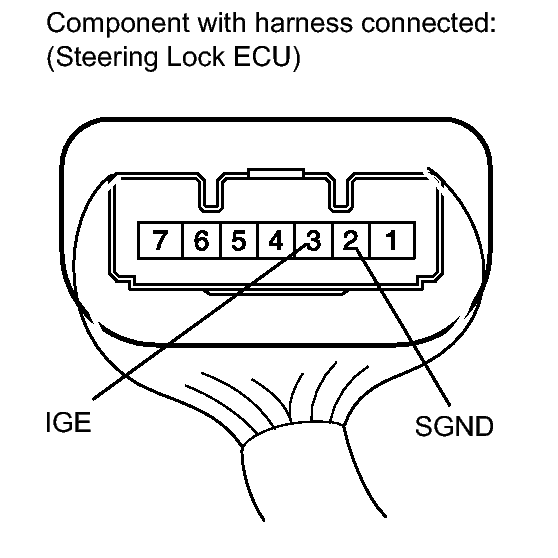

Fig 1: Identifying Steering Lock ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the engine switch on (IG).
2. Turn the engine switch off.
3. With the shift lever in P, immediately after opening the driver door, inspect the voltage between terminals 3 (IGE) and 2 (SGND) of the steering lock ECU.
   RESULT



   Result	Proceed to
   Immediately after opening door, measurement is below 1 V.	A
   Measurement is 11 to 14 V, and measurement never becomes below 1 V.	B

B → REPAIR OR REPLACE HARNESS OR CONNECTOR

A → See step   15

1. Open the front passenger side door.
2. Lock the doors using the wireless remote door lock key.
3. Check that no doors are locked and the steering lock does not operate.

   OK

   No doors are locked and steering lock is not locked.

NG → See step   11

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Check the Data List and read the value displayed on the Techstream screen.
   SMART KEY



   Item	Measurement Item / Range	Normal Condition	Diagnostic Note
   S Code Check	S code match record / NG or OK	NG: S code not matched OK: S code matched	-

   RESULT



   Result	Proceed to
   NG is displayed on the Techstream screen.	A
   OK is displayed on the Techstream screen.	B

B → See step   8

A: Go to next step

1. Replace the ID code box with a new one.Refer to REMOVAL .
   NOTE:

   When replacing the ID code box, registration must be performed according to the "Registration" procedures.Refer to REGISTRATION .

2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG) and turn the Techstream on.
4. Check the Data List and read the value displayed on the Techstream screen.
   SMART KEY



   Item	Measurement Item / Range	Normal Condition	Diagnostic Note
   S Code Check	S code match record / NG or OK	NG: S code not matched OK: S code matched	-

   OK

   OK is displayed on the Techstream screen.

NG → See step   16

OK → See step   12

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Check the Data List and read the value displayed on the Techstream screen.
   SMART KEY



   Item	Measurement Item / Range	Normal Condition	Diagnostic Note
   L Code Check	L code match record / NG or OK	NG: L code not matched OK: L code matched	-

   RESULT



   Result	Proceed to
   NG is displayed on the Techstream screen.	A
   OK is displayed on the Techstream screen.	B

B → See step   10

A: Go to next step

1. Replace the ID code box with a new one.Refer to REMOVAL .
   NOTE:

   When replacing the ID code box, registration must be performed according to the "Registration" procedures.Refer to REGISTRATION .

2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG) and turn the Techstream on.
4. Check the Data List and read the value displayed on the Techstream screen.
   SMART KEY



   Item	Measurement Item / Range	Normal Condition	Diagnostic Note
   L Code Check	L code match record / NG or OK	NG: L code not matched OK: L code matched	-

   OK

   OK is displayed on the Techstream screen.

NG → See step   17

OK → See step   13

1. Replace the steering lock ECU with a new one.Refer to REMOVAL .
   NOTE:

   When replacing the steering lock ECU, registration must be performed according to the "Registration" procedures.Refer to REGISTRATION .

2. With the shift lever in P and the brake pedal depressed, turn the engine switch on (IG).
3. Check whether the steering lock can be released by turning the steering wheel, and check that the engine starts.

   OK

   Steering lock is released and engine starts.

NG → See step   18

OK → See step   14
