Power Window: Notes

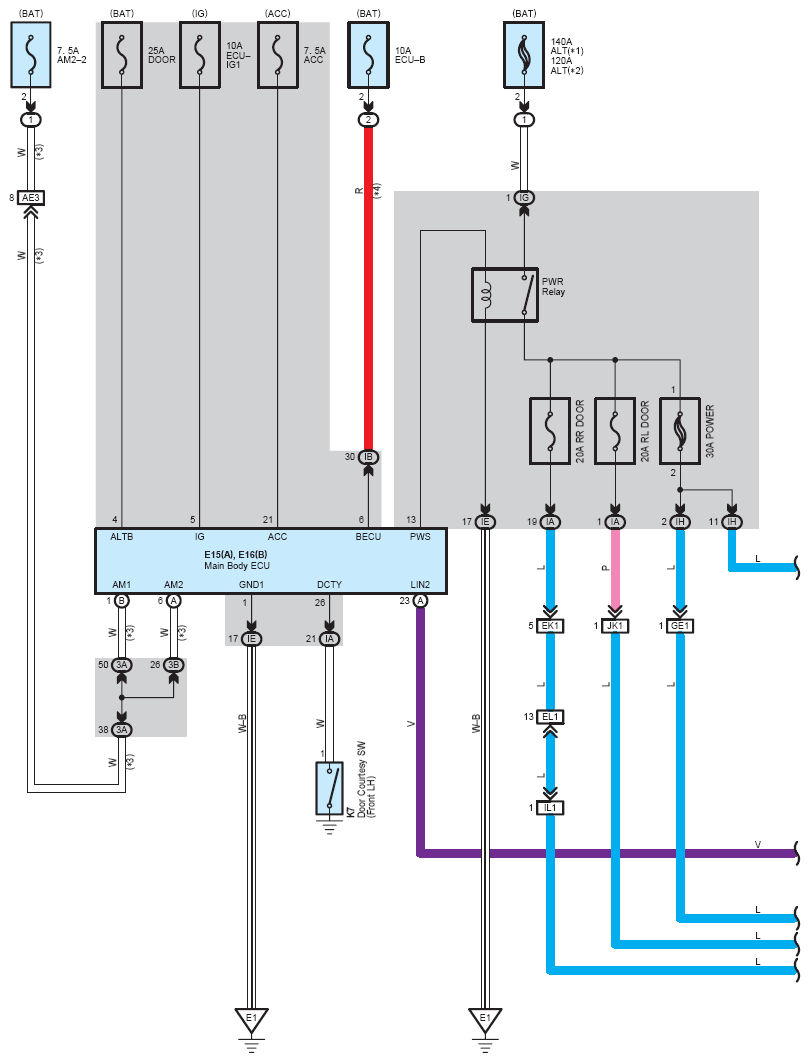

Fig 1: Power Window System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

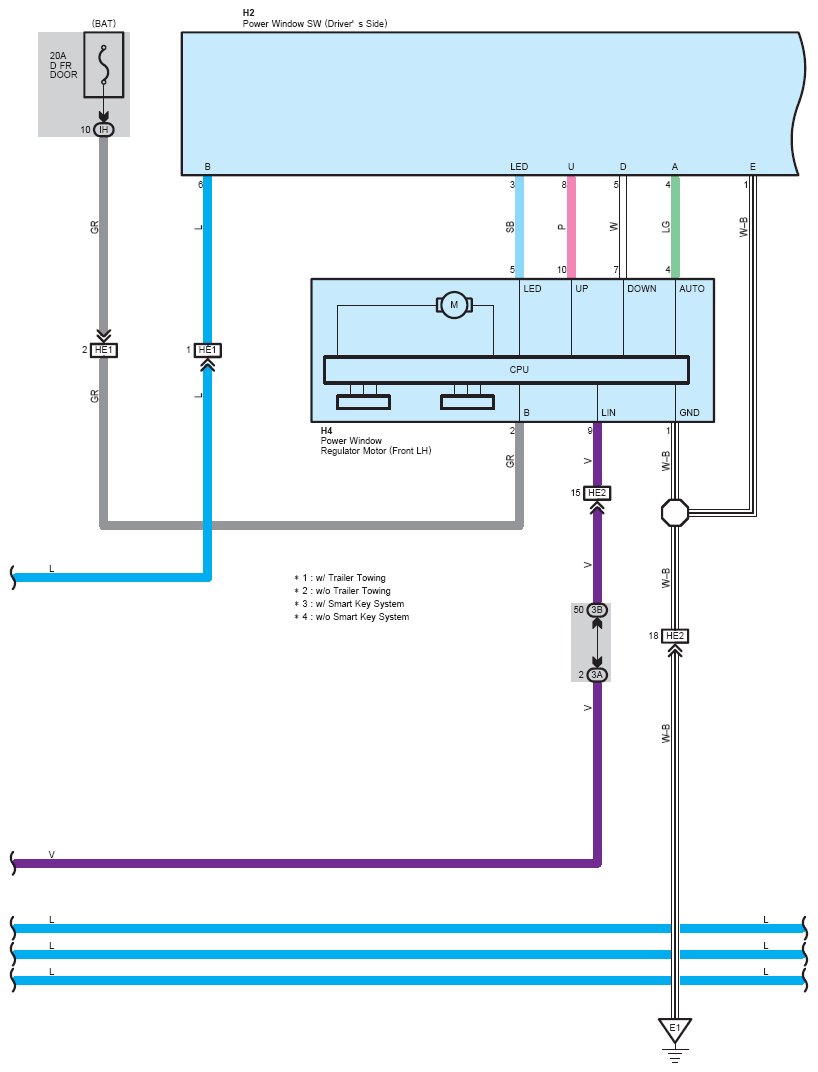

Fig 2: Power Window System Wiring Diagram (2 Of 3)

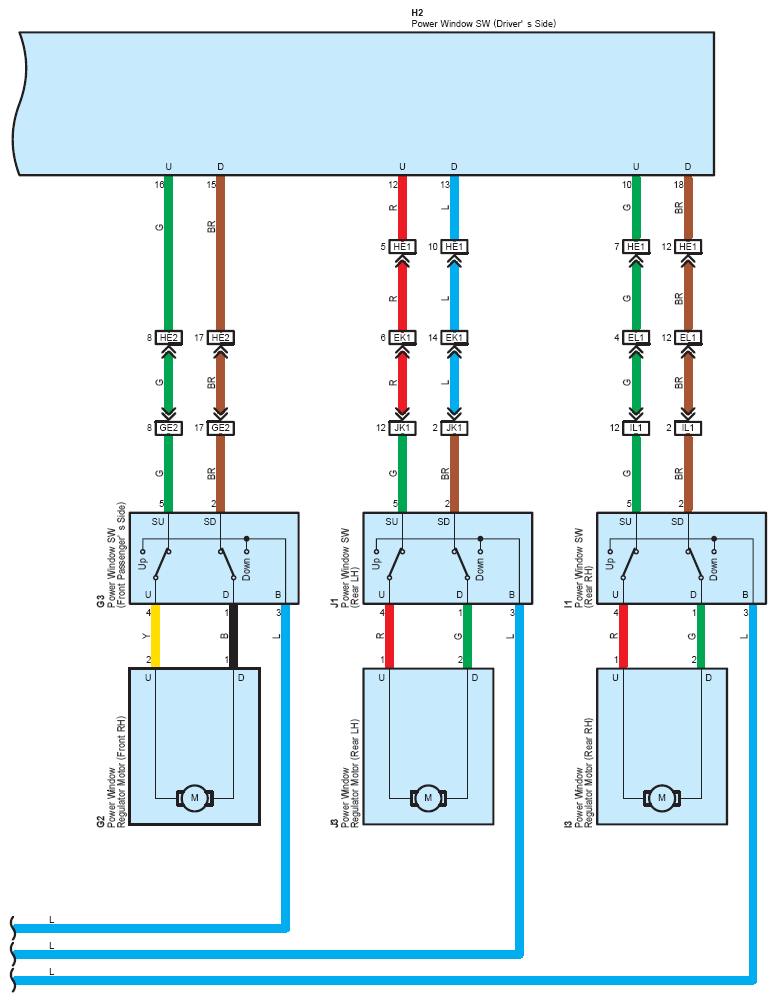

Fig 3: Power Window System Wiring Diagram (3 Of 3)
