Rear Airbag Sensor: Components: Illustration

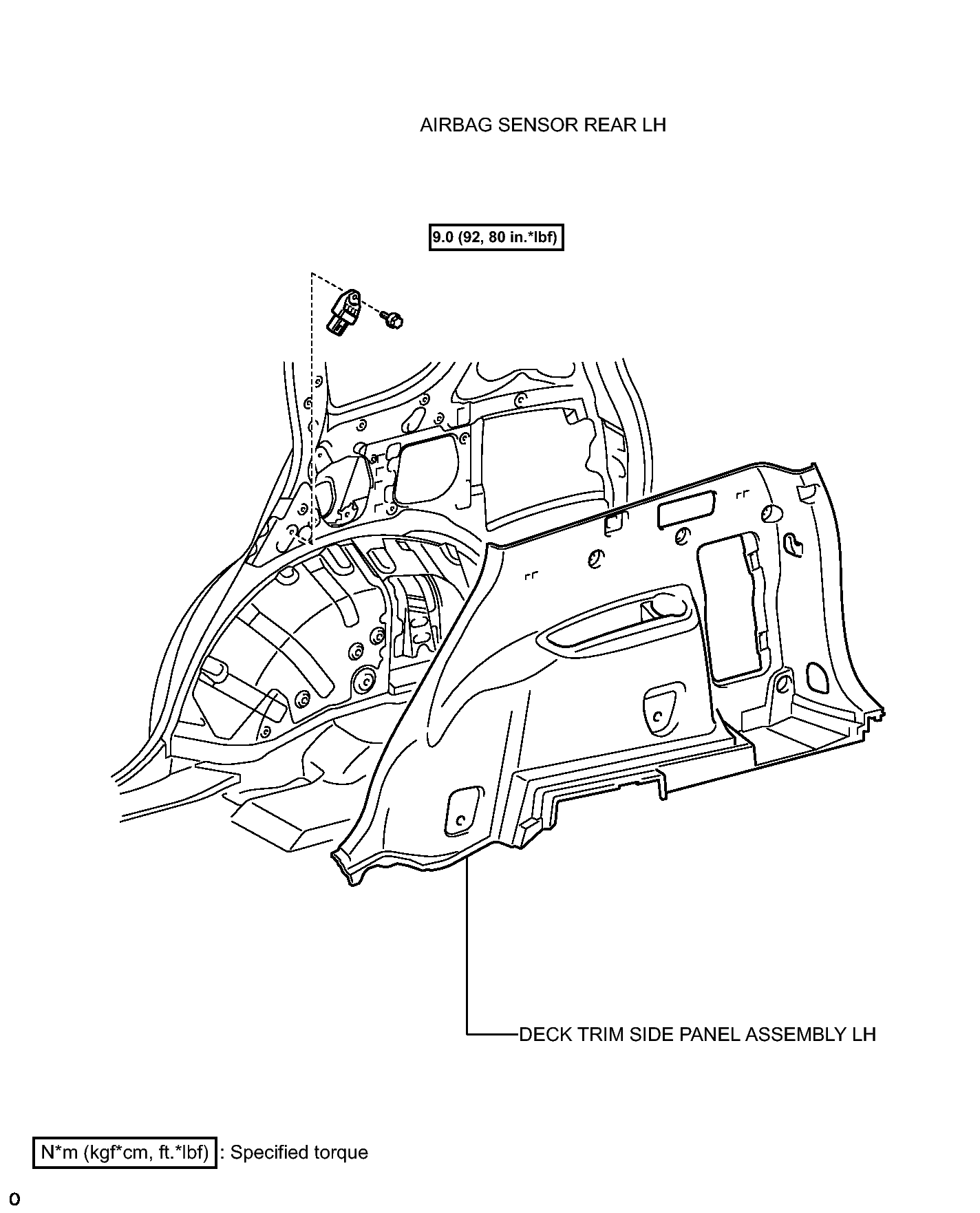

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications
GTY239637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
