Mute Signal Circuit Between Stereo Component Tuner Assembly And Multi-Media Interface ECU: Procedure
- CHECK STEREO COMPONENT TUNER ASSEMBLY
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

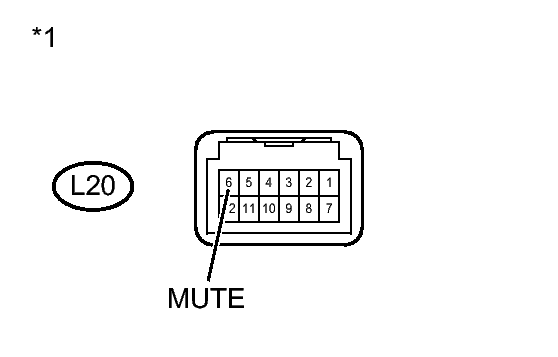

Tester Connection Switch Condition Specified Condition L20-6 (MUTE) - Body ground Ignition switch ACC, Satellite radio playing → Changing source Above 3.5 V → Below 1 V TEXT IN ILLUSTRATION*1 Component with harness connected
(Stereo Component Tuner Assembly)
NG → See step 3
OK: Go to next step
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (STEREO COMPONENT TUNER - MULTI-MEDIA INTERFACE ECU)
- Disconnect the L20 stereo component tuner assembly connector.
- Disconnect the D67 multi-media interface ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L20-6 (MUTE) - D67-14 (MUT2) Always Below 1 Ω L20-6 (MUTE) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 4
- REPLACE STEREO COMPONENT TUNER ASSEMBLY. Refer to REMOVAL
- REPLACE MULTI-MEDIA INTERFACE ECU. Refer to REMOVAL
