Navigation Receiver Assembly Power Source Circuit: Wiring Diagram

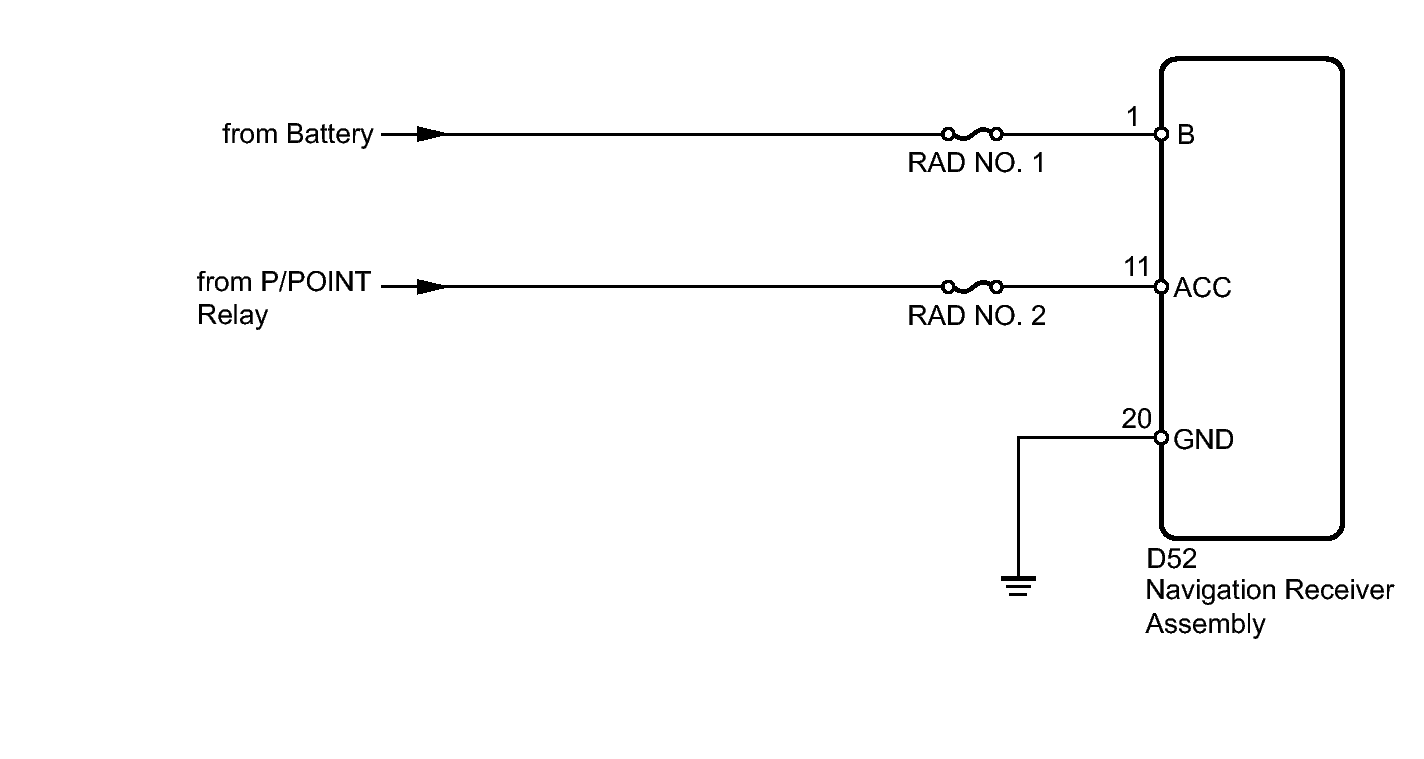

Fig 1: Navigation Receiver Assembly Power Source Circuit - Wiring Diagram
GTY300575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
