Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Jack Adapter: Procedure
- CHECK NAVIGATION RECEIVER ASSEMBLY
- Disconnect the D56 navigation receiver assembly connector.
- Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions, as shown in the chart below.
OK

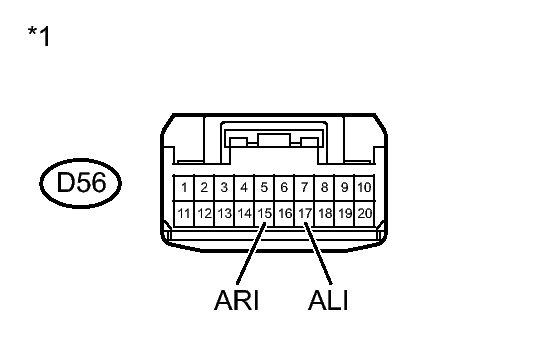

Tester Connection Condition Specified Condition D56-15 (ARI) - Body ground Audio sound is being produced A waveform synchronized with sound is output D56-17 (ALI) - Body ground TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Navigation Receiver Assembly)
NG → See step 2
OK → See step 3
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER - STEREO JACK ADAPTER)
- Disconnect the D56 navigation receiver assembly connector.
- Disconnect the D128 No. 1 stereo jack adapter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D56-15 (ARI) - D128-5 Always Below 1 Ω D56-16 (ASGN) - D128-7 Always Below 1 Ω D56-17 (ALI) - D128-6 Always Below 1 Ω D56-18 (AGND) - D128-9 Always Below 1 Ω D56-19 (AUXI) - D128-8 Always Below 1 Ω D56-15 (ARI) - Body ground Always 10 kΩ or higher D56-16 (ASGN) - Body ground Always 10 kΩ or higher D56-17 (ALI) - Body ground Always 10 kΩ or higher D56-18 (AGND) - Body ground Always 10 kΩ or higher D56-19 (AUXI) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 4
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
- REPLACE NO. 1 STEREO JACK ADAPTER ASSEMBLY. Refer to REMOVAL
