Multiplex Communication System (CAN): Notes

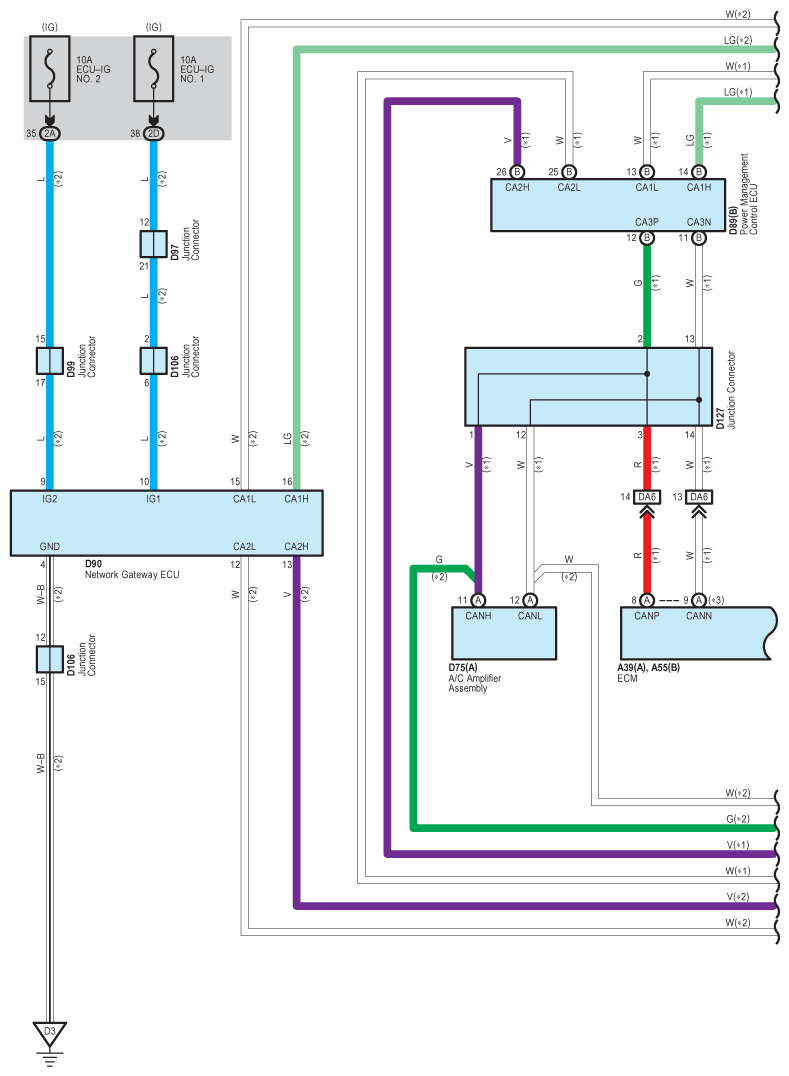

Fig 1: Multiplex Communication System Wiring Diagram (CAN; 1 Of 4)
G08846129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

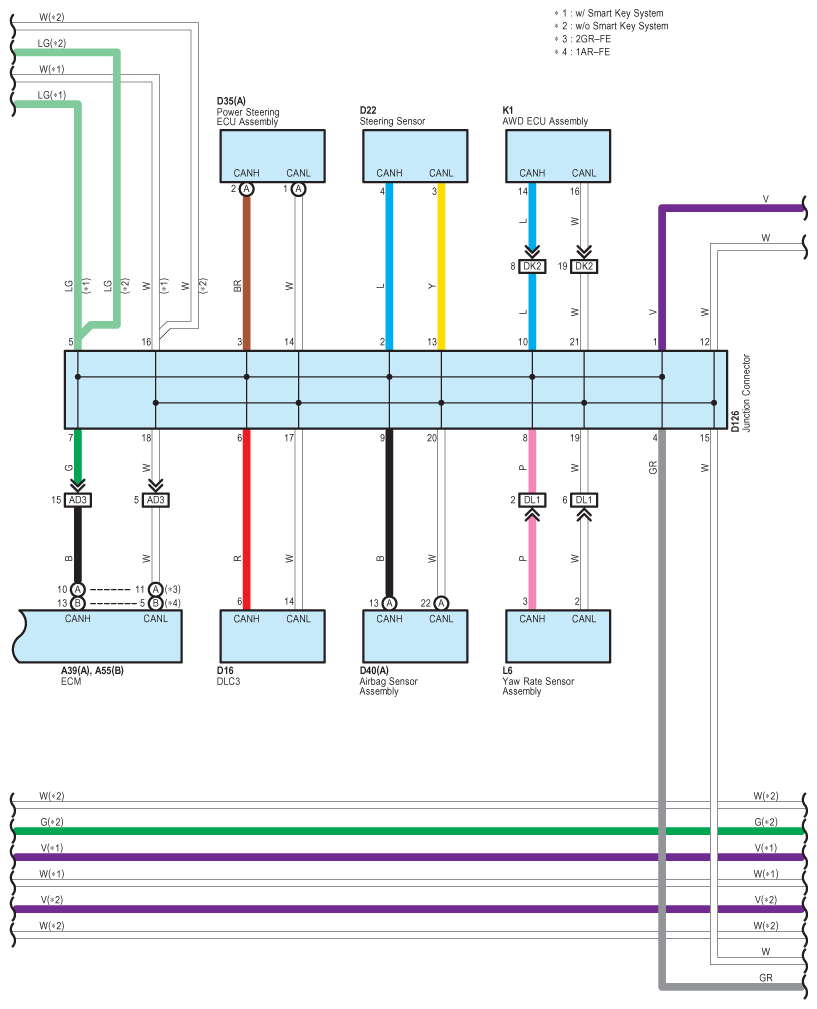

Fig 2: Multiplex Communication System Wiring Diagram (CAN; 2 Of 4)
G08846130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

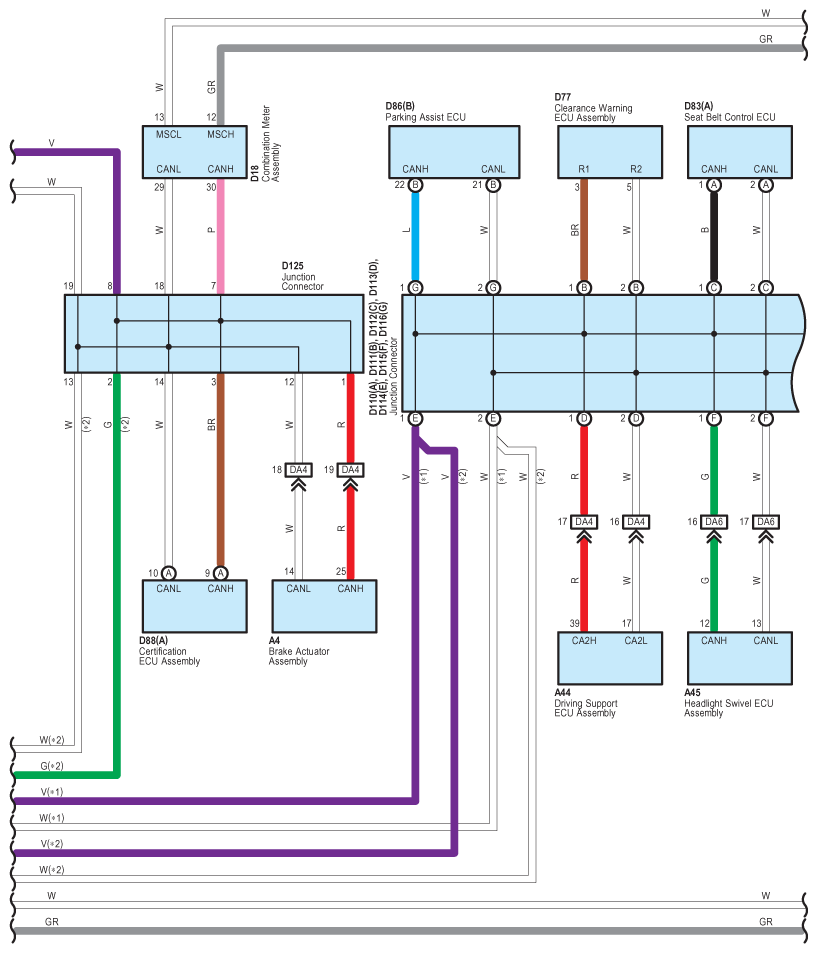

Fig 3: Multiplex Communication System Wiring Diagram (CAN; 3 Of 4)
G08846131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

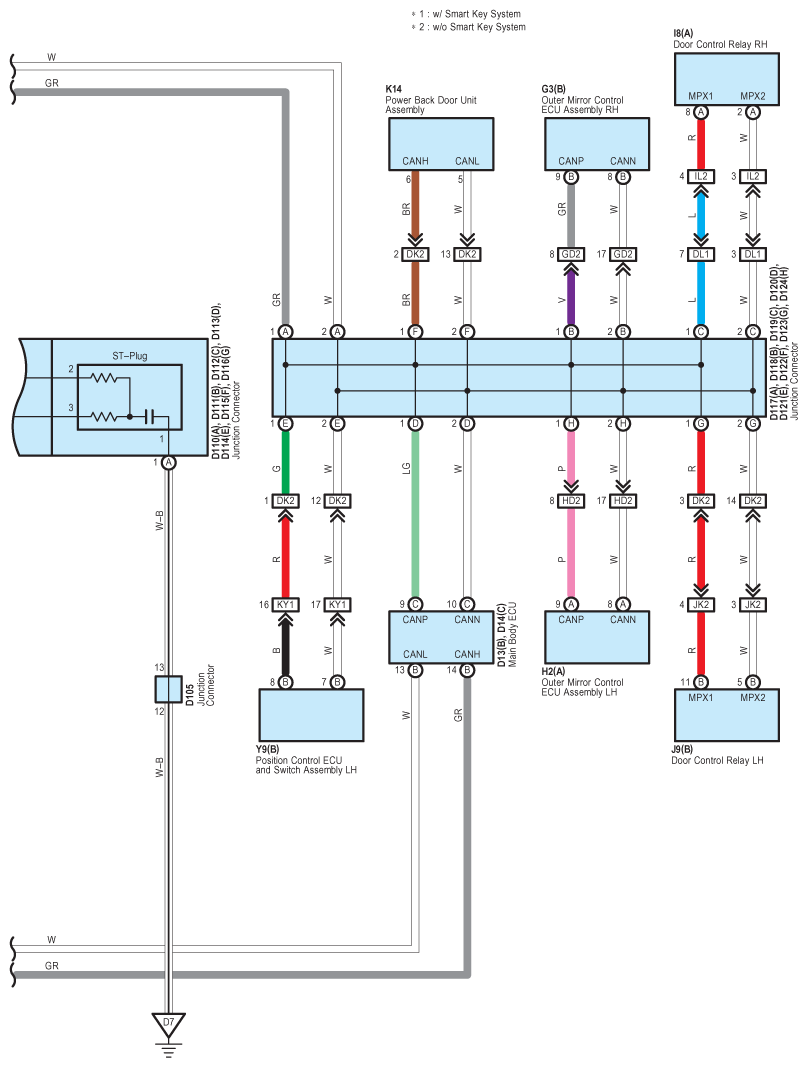

Fig 4: Multiplex Communication System Wiring Diagram (CAN; 4 Of 4)
G08846132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
