DTC B2271: Ignition Hold Monitor Malfunction: Wiring Diagram

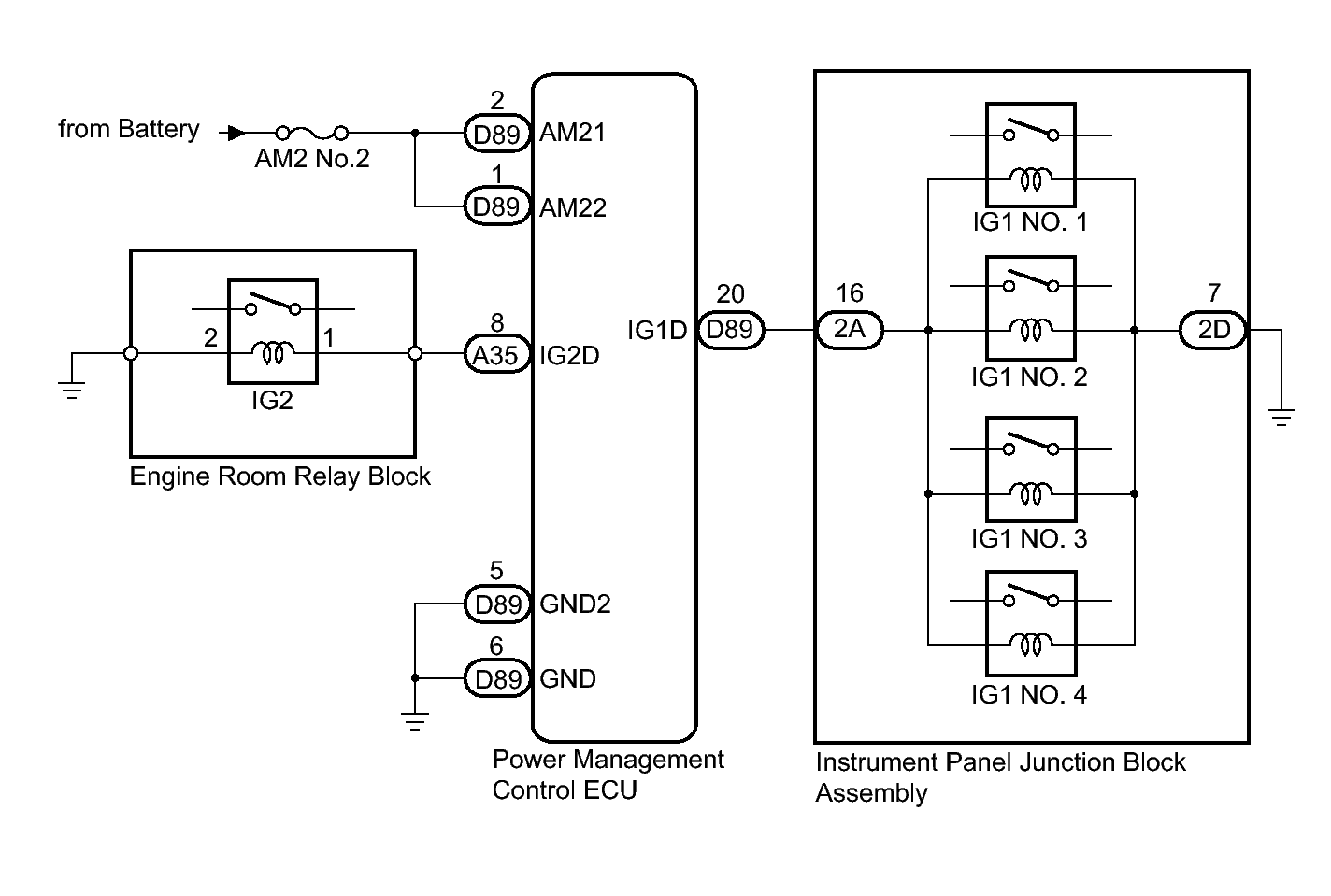

Fig 1: Ignition Hold Monitor Circuit - Wiring Diagram
GTY302088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
