DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor Circuit Malfunction (NE Signal): Wiring Diagram

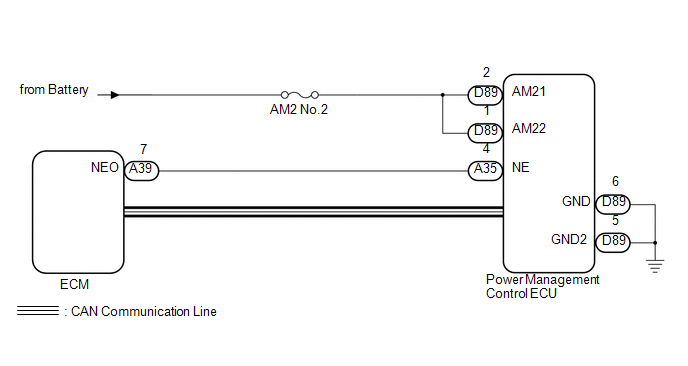

Fig 1: Crankshaft Position Sensor Circuit - Wiring Diagram
GTY301952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
