Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

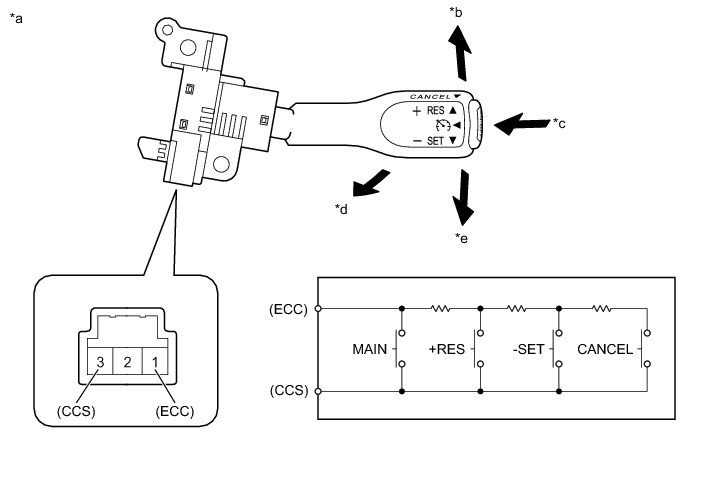

1. INSPECT CRUISE CONTROL MAIN SWITCH (w/o Dynamic Radar Cruise Control System)

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





*1: Lever is in the neutral position

If the result is not as specified, replace the cruise control main switch.

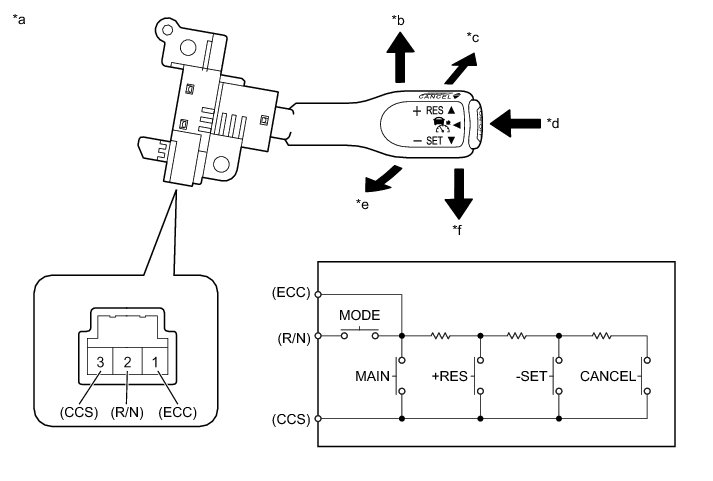

2. INSPECT CRUISE CONTROL MAIN SWITCH (w/ Dynamic Radar Cruise Control System)

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





*1: Lever is in the neutral position

If the result is not as specified, replace the cruise control main switch.
