Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

MEASURE VEHICLE HEIGHT


Measure the vehicle height.

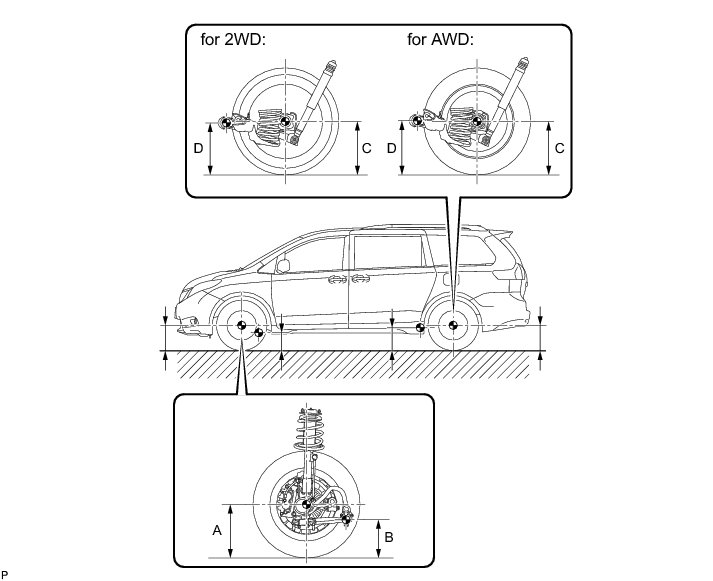

Measurement points:

A
Ground clearance of front wheel center

B
Ground clearance of No. 2 lower suspension arm bushing set bolt center

C
Ground clearance of rear wheel center

D
Ground clearance of axle beam set bolt center

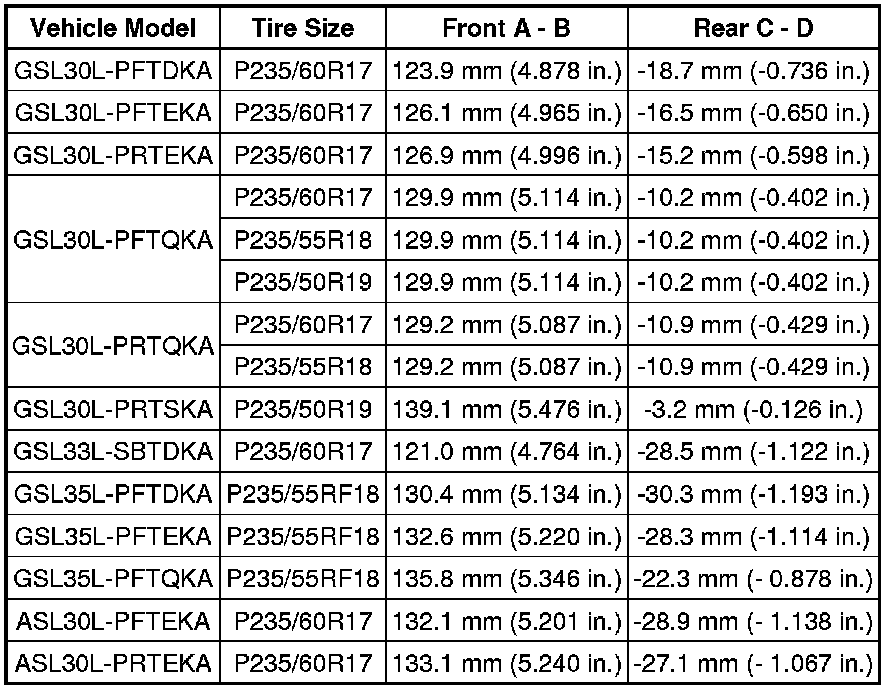

Vehicle Height (Unloaded Vehicle)

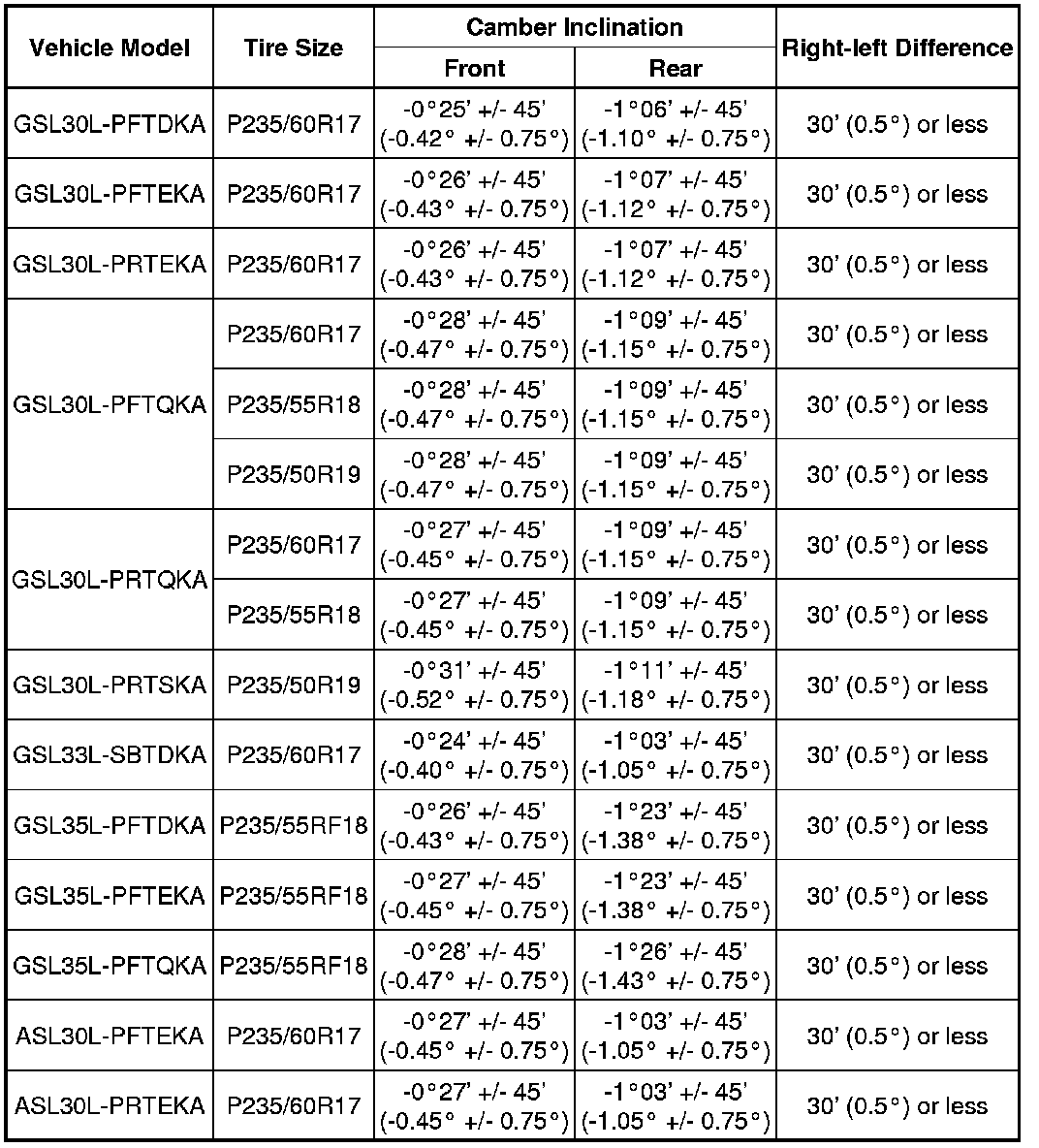

Camber (Unloaded Vehicle)

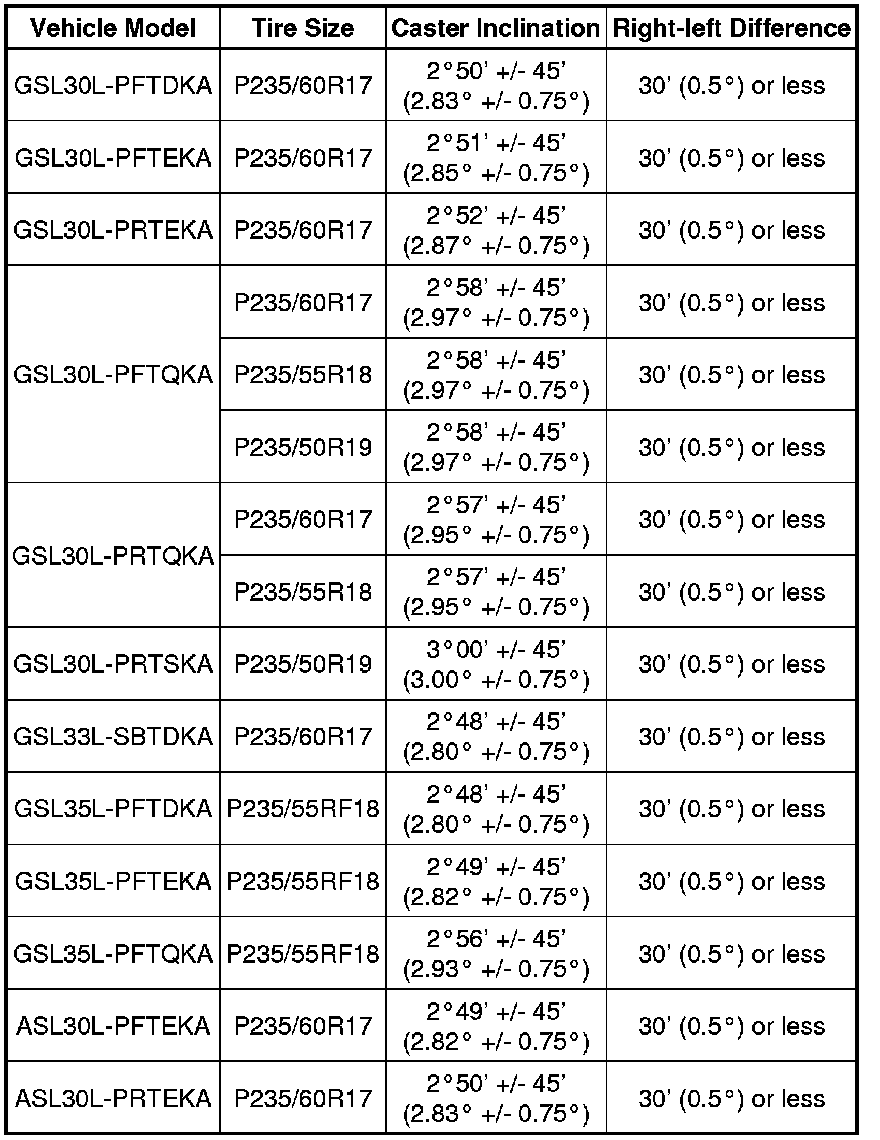

Caster (Unloaded Vehicle)

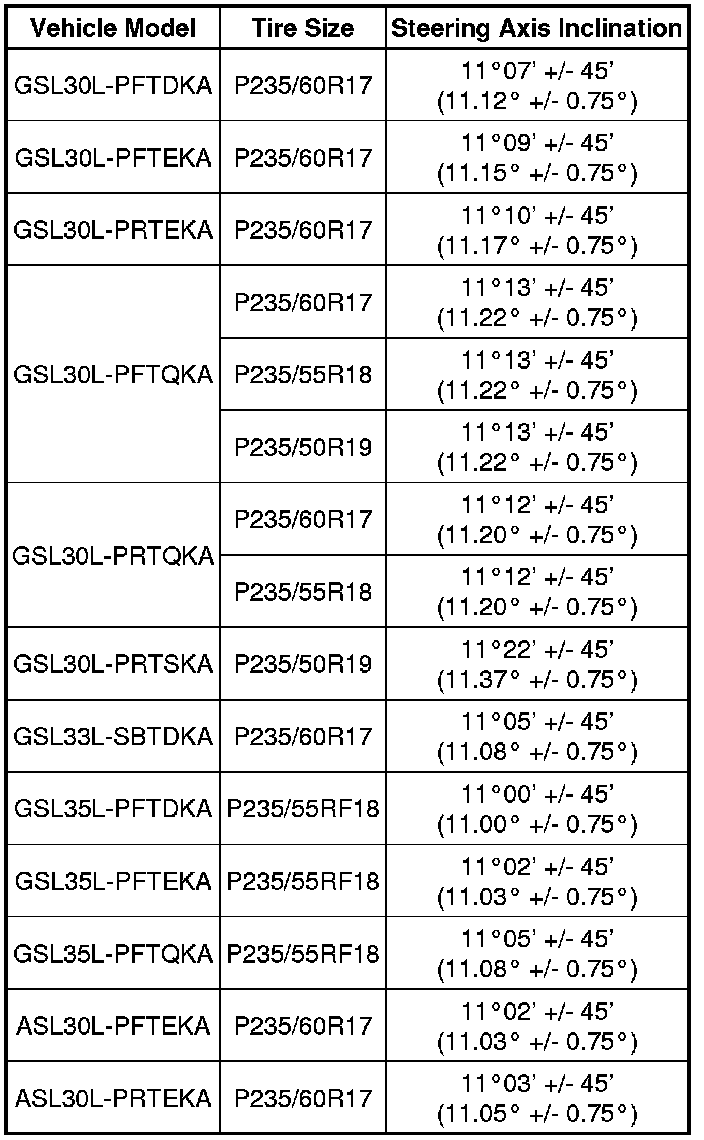

Steering Axis Inclination (Unloaded Vehicle)

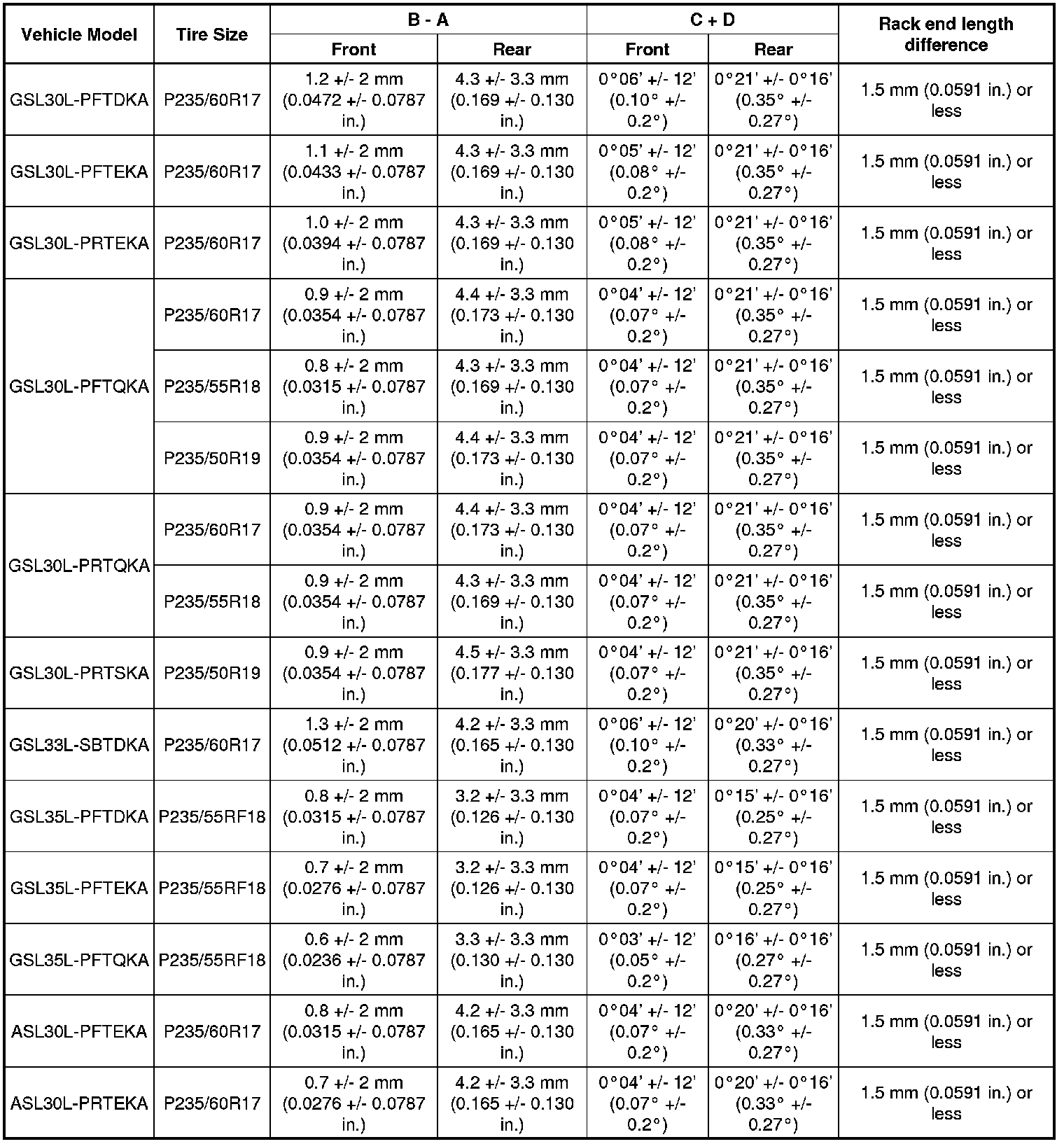

Toe-in

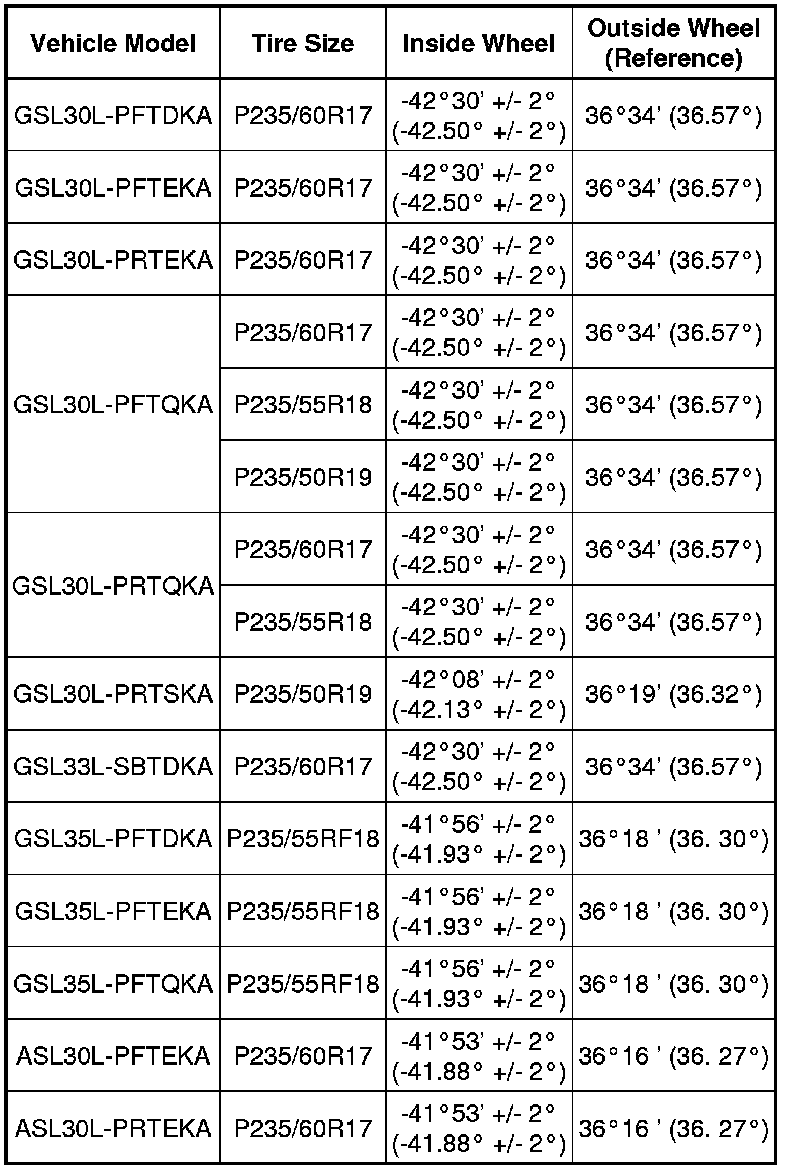

Wheel Turning Angle (Unloaded Vehicle)
