Intake Manifold

INTAKE MANIFOLD

Temporarily tighten the 6 bolts to the intake manifold.

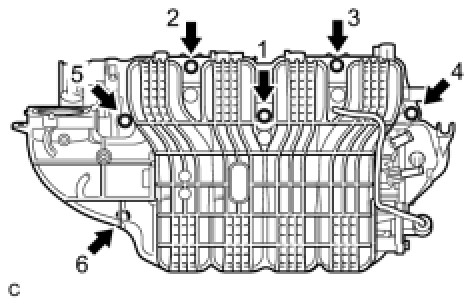

Tighten the 6 bolts in the order shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
