Mute Signal Circuit Between Navigation Receiver Assembly And Multi-Media Interface ECU: Wiring Diagram

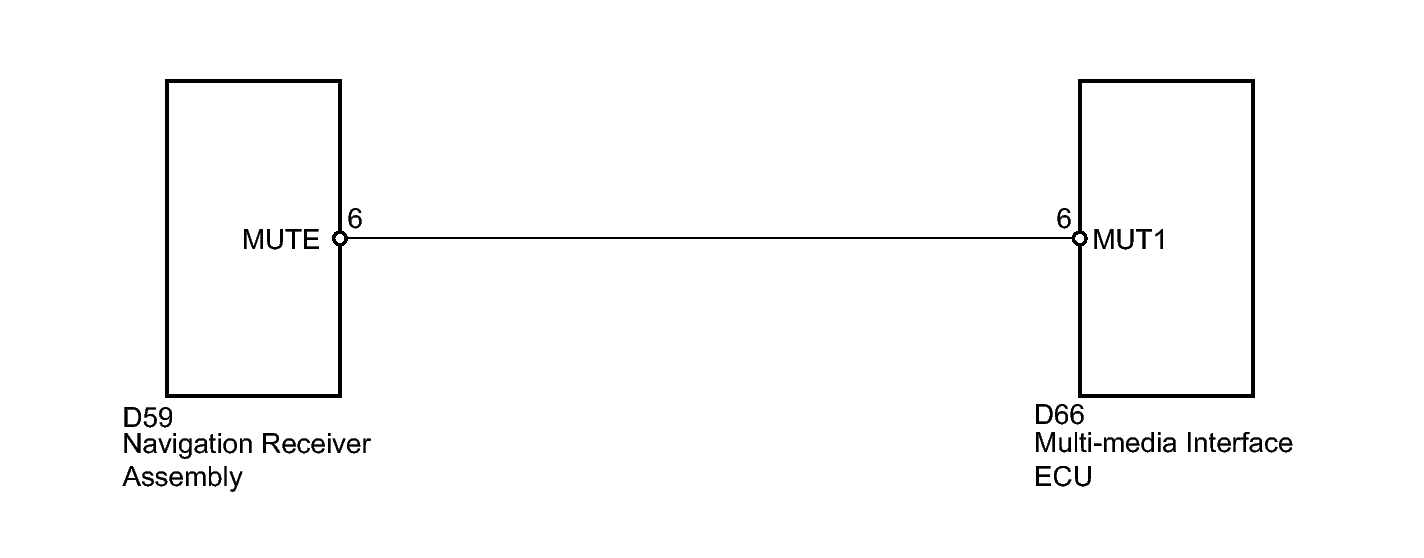

Fig 1: Mute Signal Circuit Between Navigation Receiver Assembly And Multi-Media Interface ECU Wiring Diagram
GTY305711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
