Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Component Tuner Assembly: Wiring Diagram

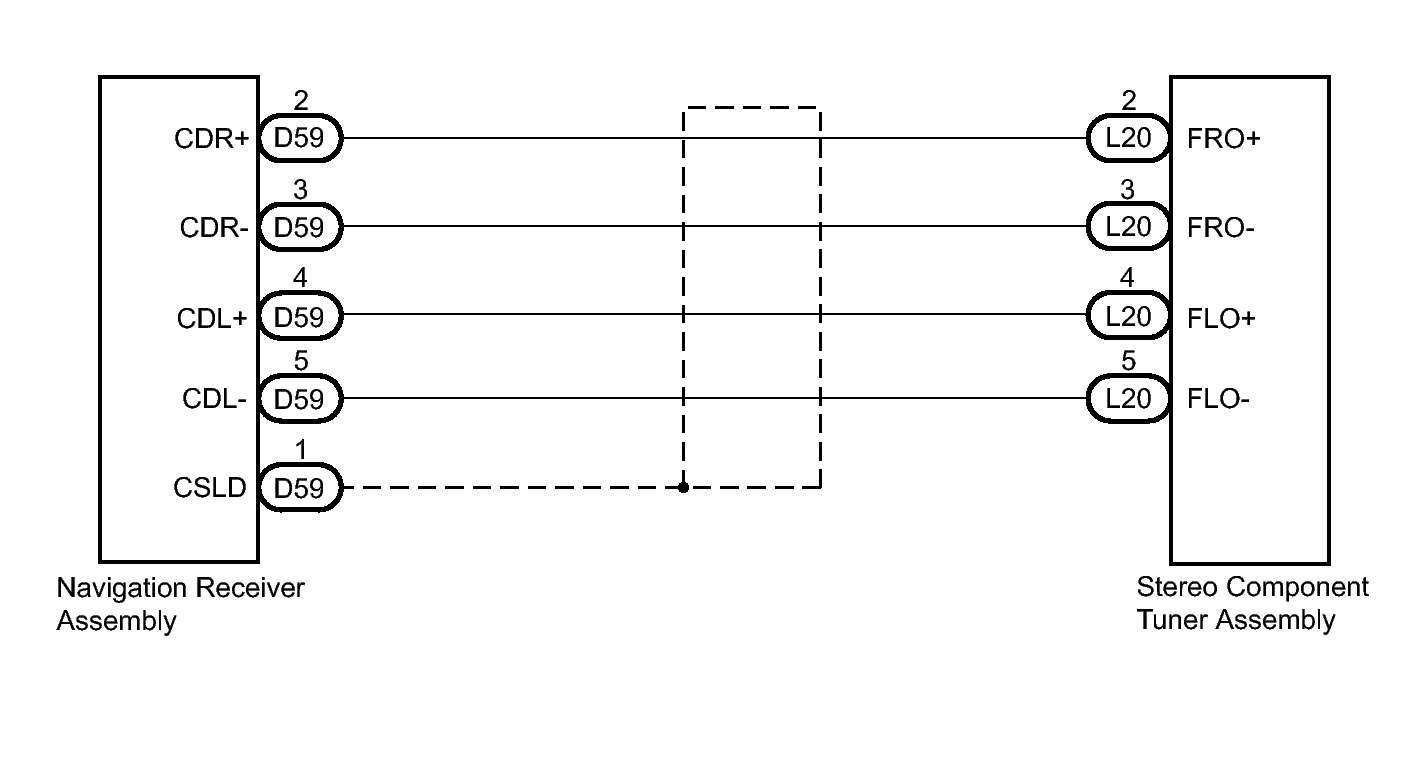

Fig 1: Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Component Tuner Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
