Audio System (w/Navigation System), Navigation System and Parking Assist (Rear View Monitor w/Navigation System): Notes

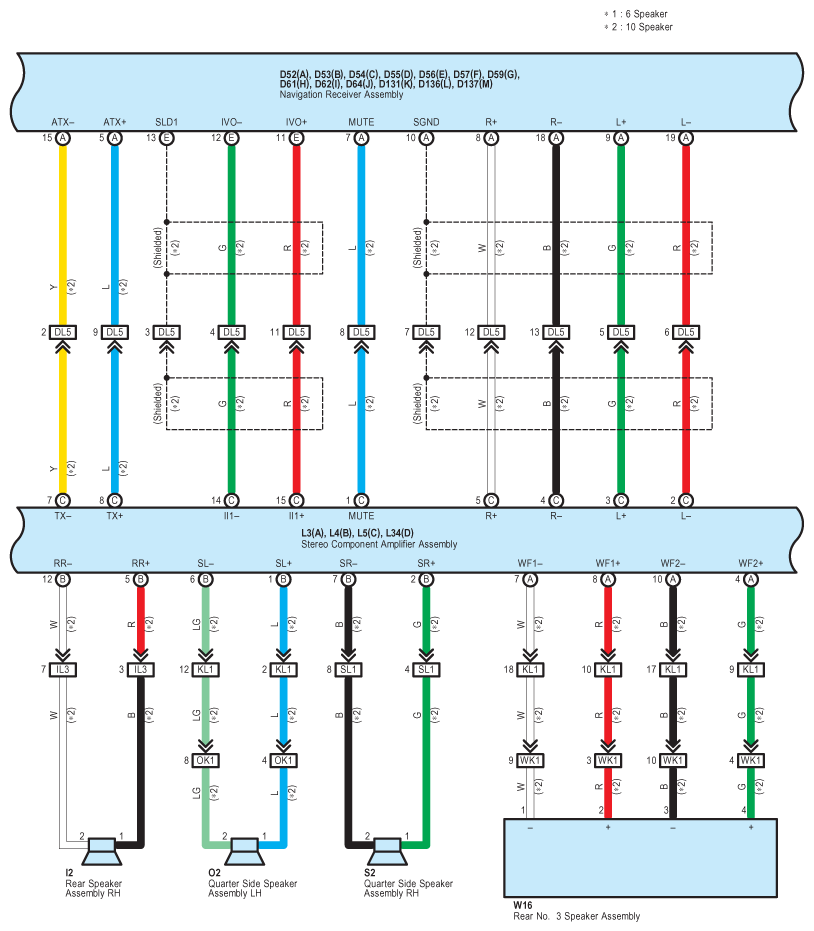

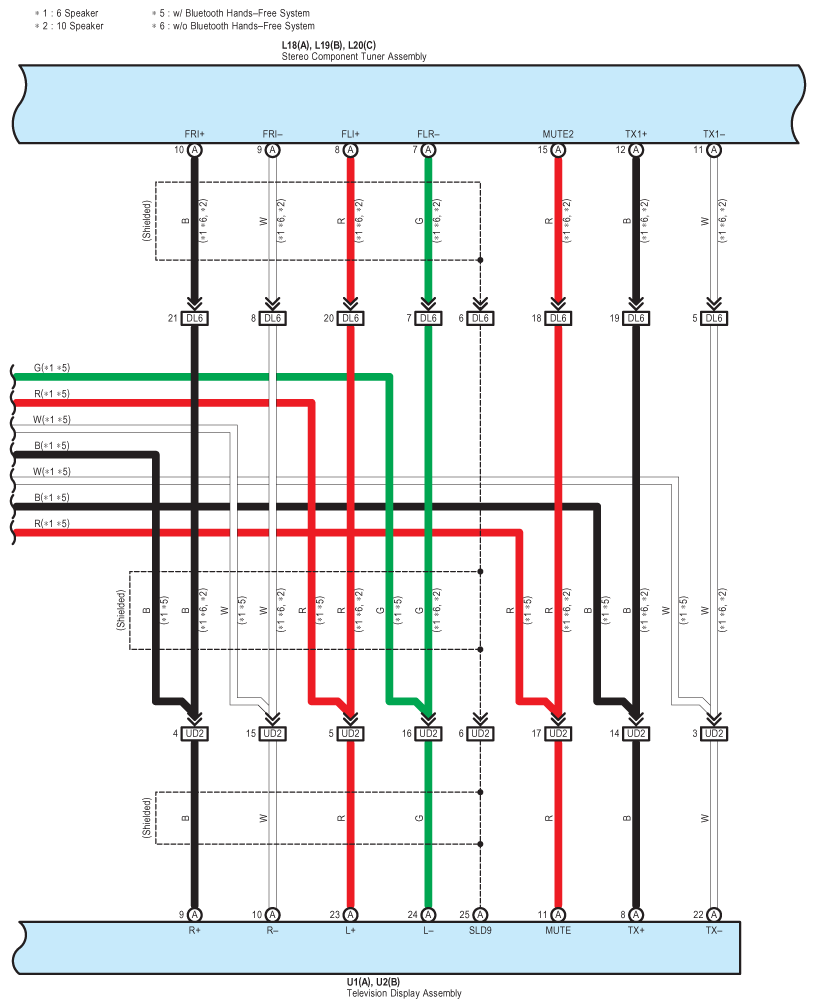

Fig 1: Audio System, Navigation System And Parking Assist Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

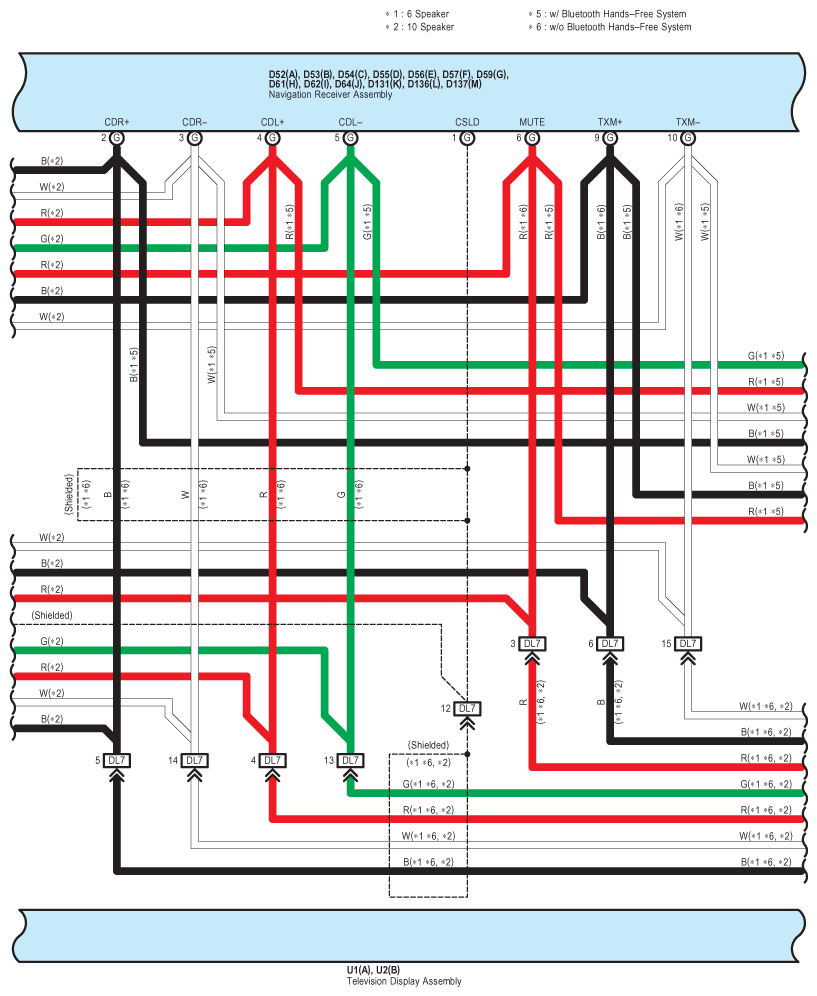

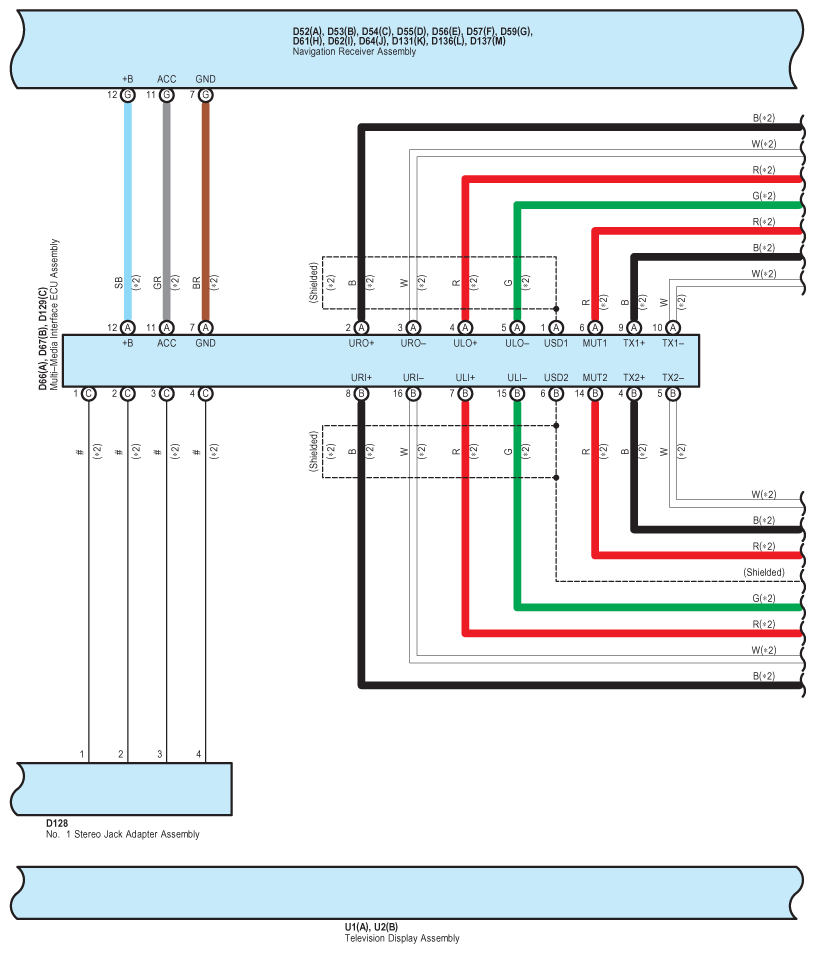

Fig 2: Audio System, Navigation System And Parking Assist Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

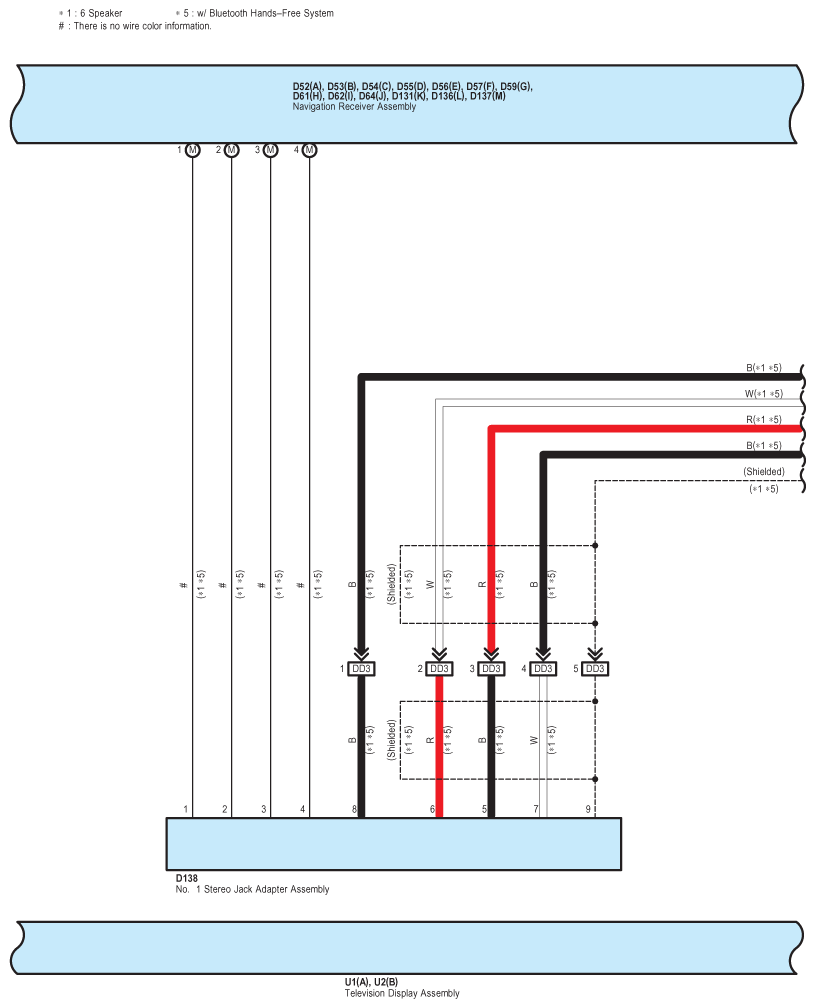

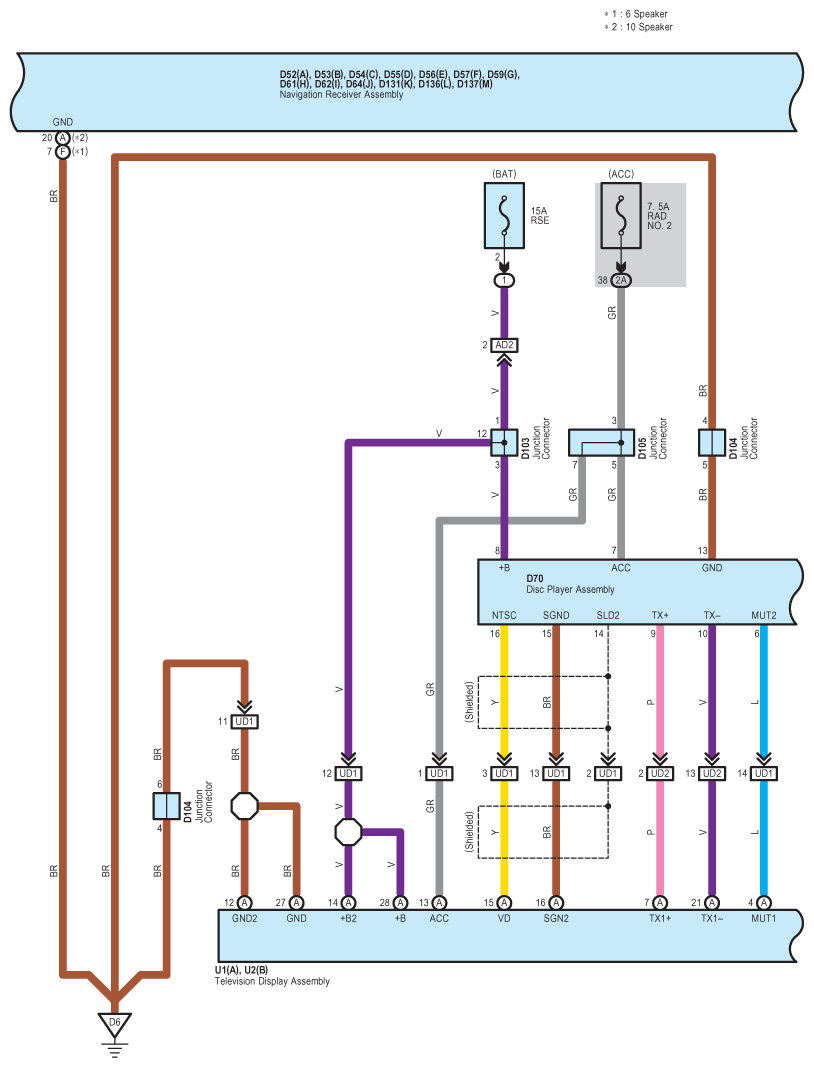

Fig 3: Audio System, Navigation System And Parking Assist Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

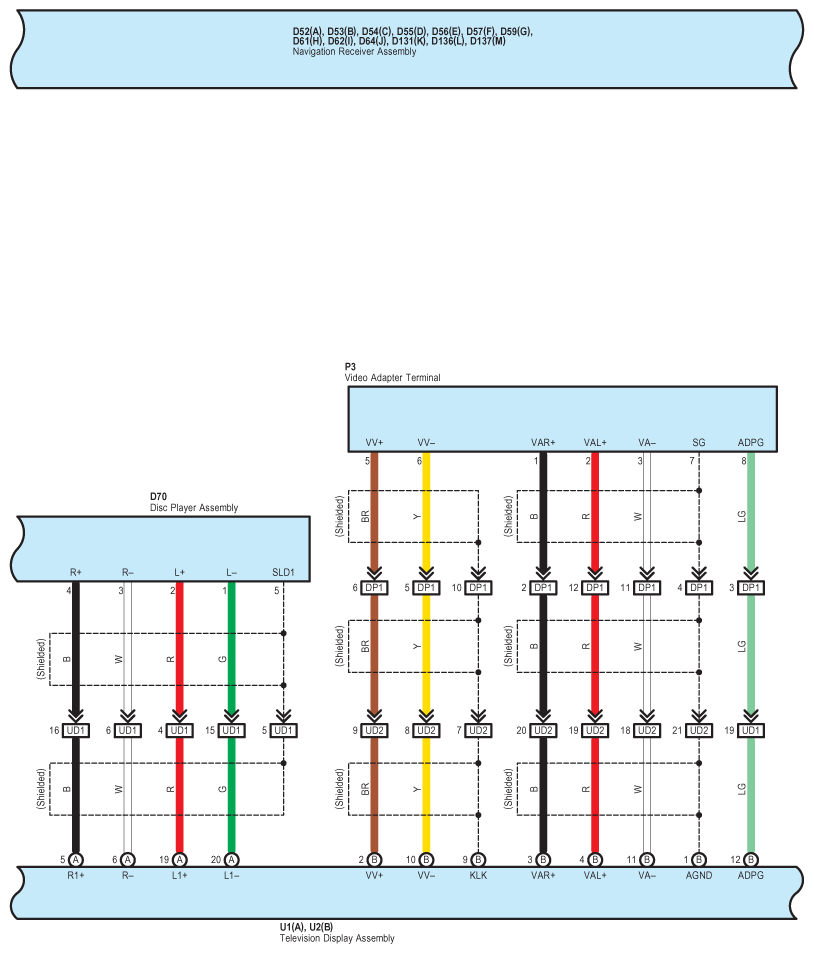

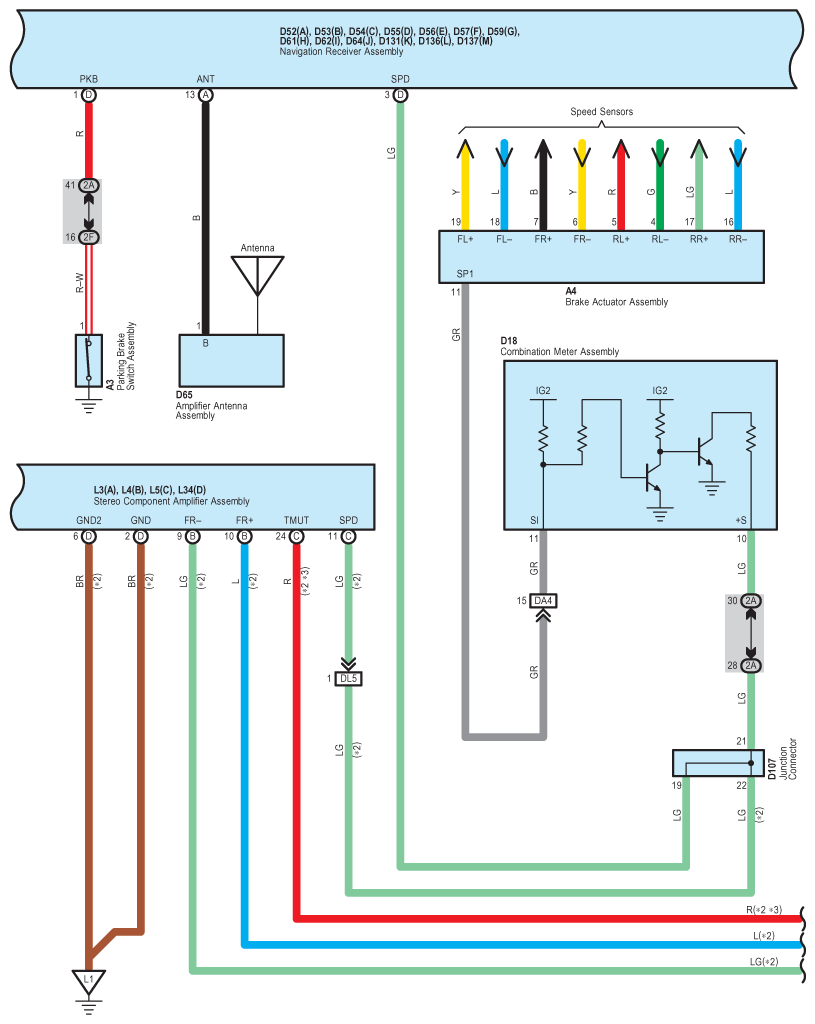

Fig 4: Audio System, Navigation System And Parking Assist Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

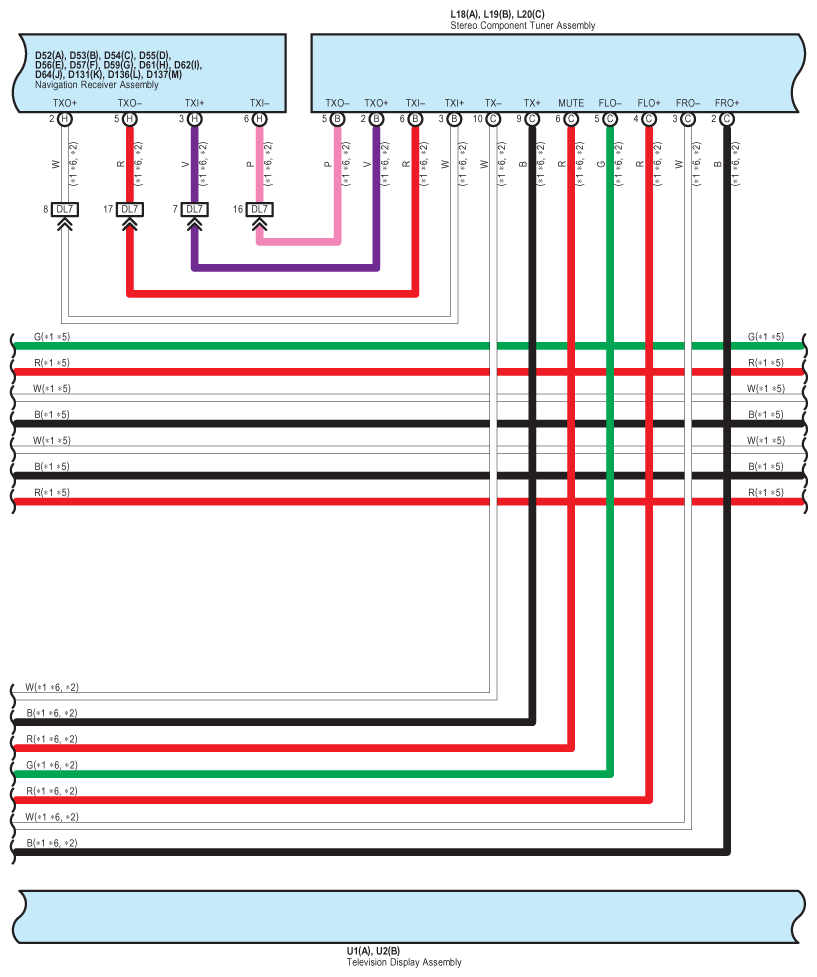

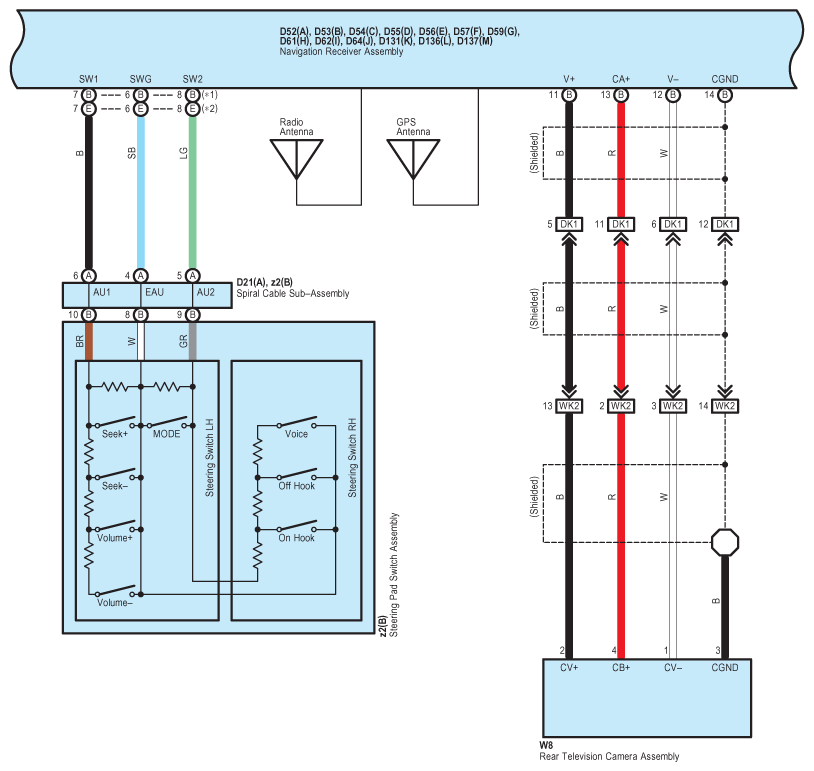

Fig 5: Audio System, Navigation System And Parking Assist Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

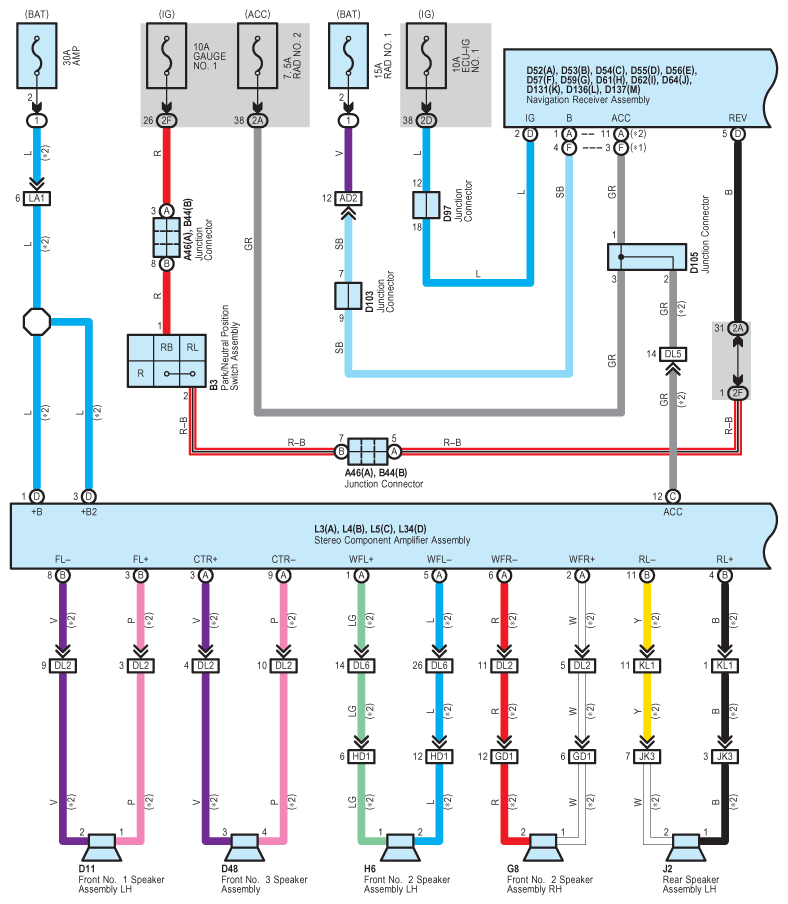

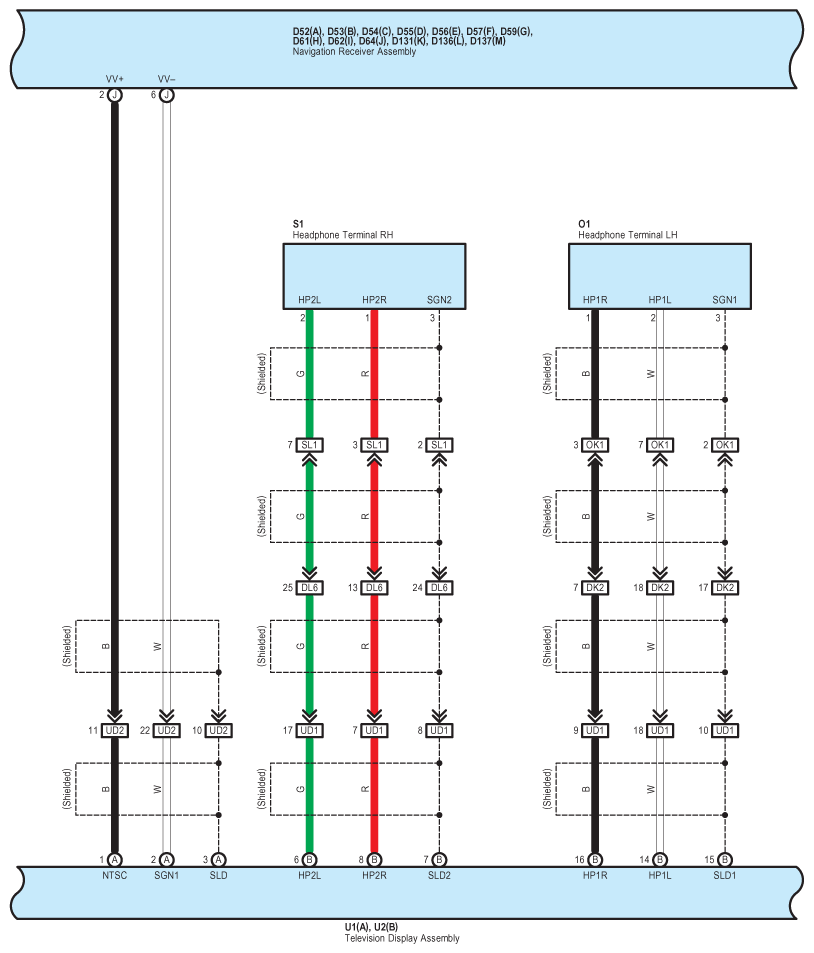

Fig 6: Audio System, Navigation System And Parking Assist Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

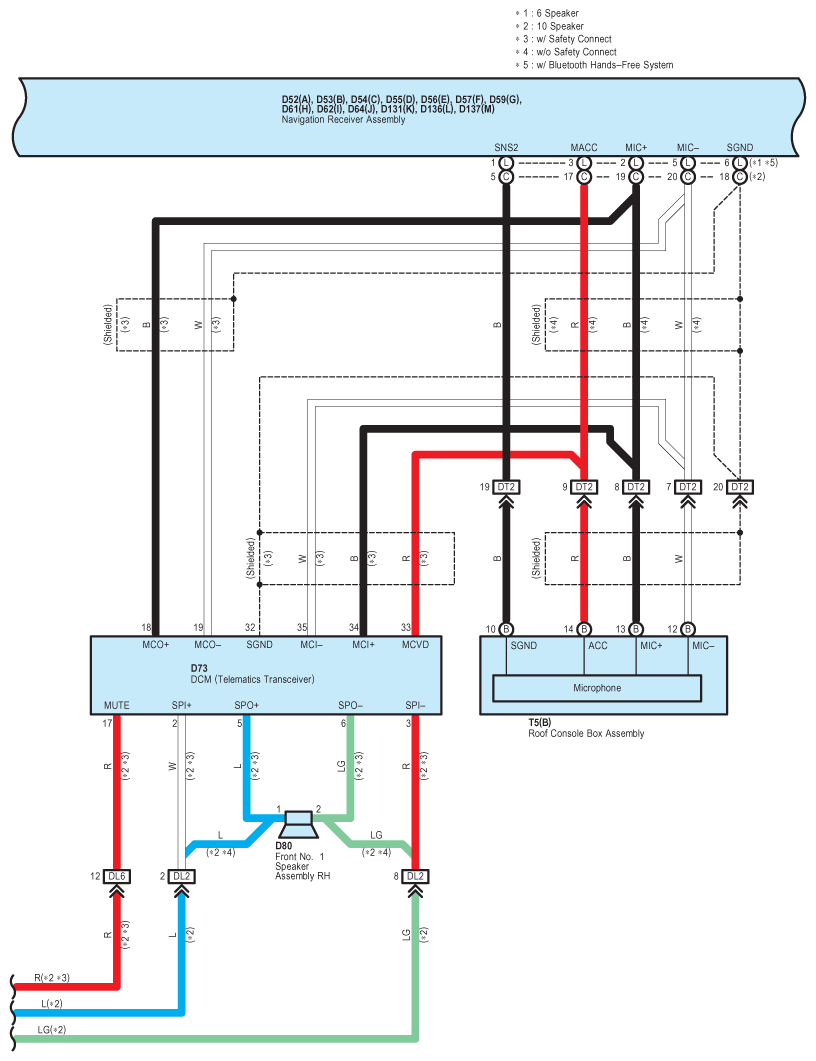

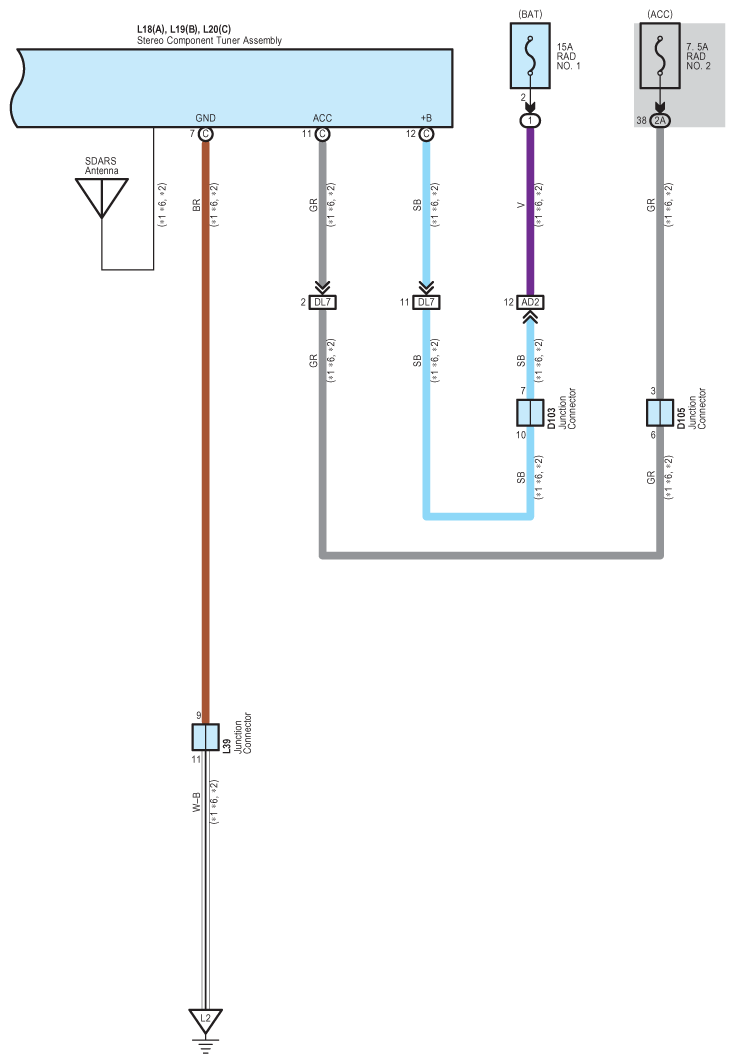

Fig 7: Audio System, Navigation System And Parking Assist Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

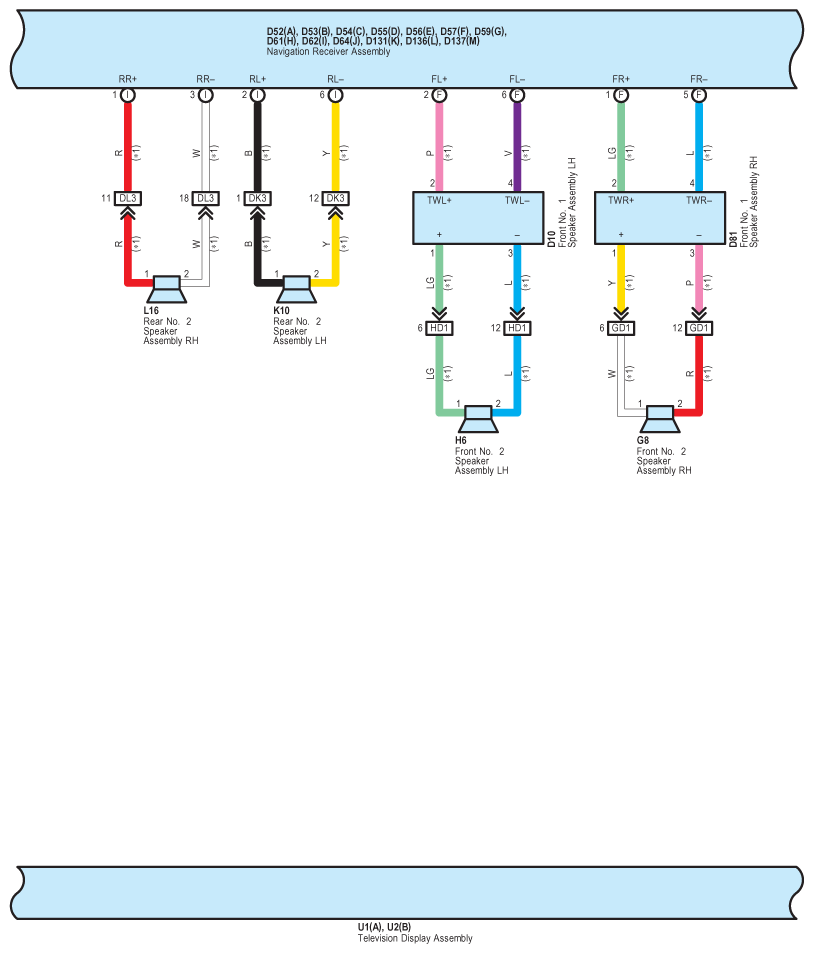

Fig 8: Audio System, Navigation System And Parking Assist Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, Navigation System And Parking Assist Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System, Navigation System And Parking Assist Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System, Navigation System And Parking Assist Wiring Diagram (11 Of 16)

Fig 12: Audio System, Navigation System And Parking Assist Wiring Diagram (12 Of 16)

Fig 13: Audio System, Navigation System And Parking Assist Wiring Diagram (13 Of 16)

Fig 14: Audio System, Navigation System And Parking Assist Wiring Diagram (14 Of 16)

Fig 15: Audio System, Navigation System And Parking Assist Wiring Diagram (15 Of 16)

Fig 16: Audio System, Navigation System And Parking Assist Wiring Diagram (16 Of 16)
