OEM System Circuits: Headlight: Notes

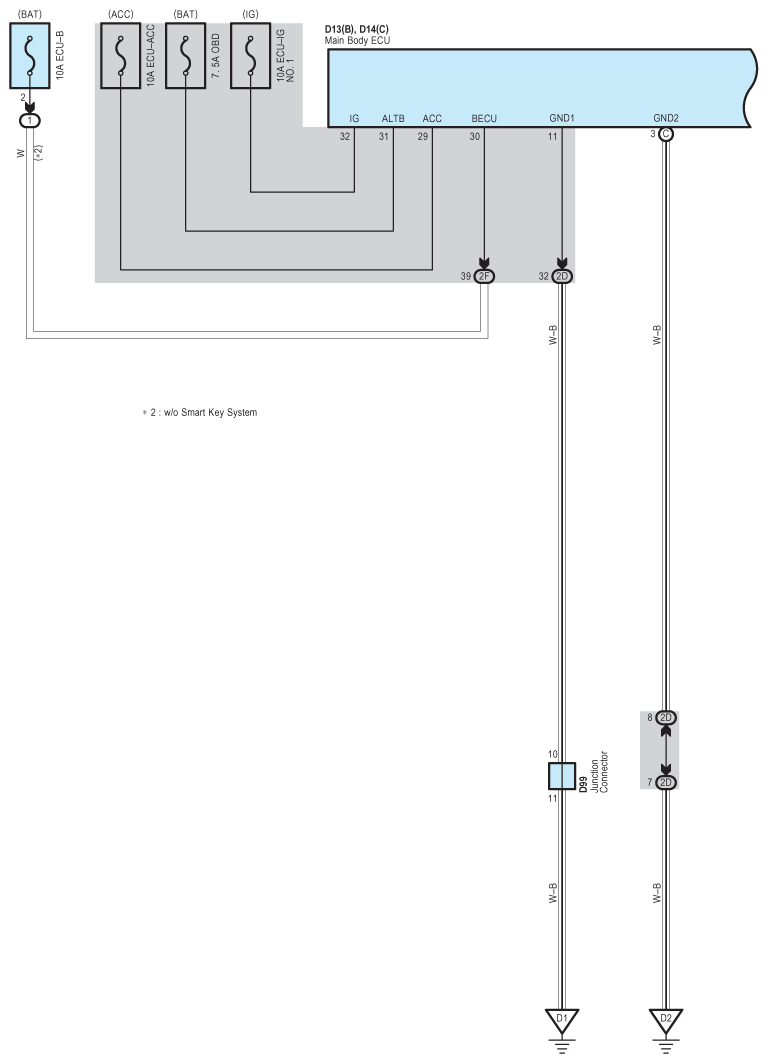

Fig 1: Headlight Wiring Diagram (1 Of 8)

G08846137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

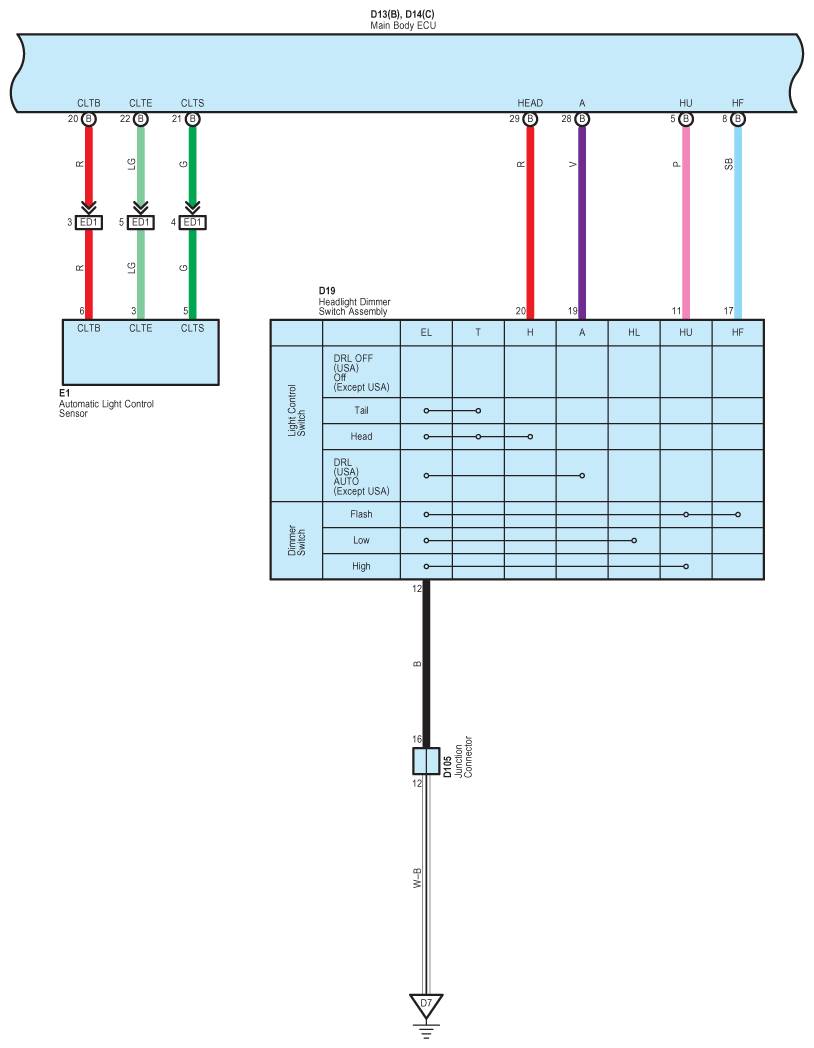

Fig 2: Headlight Wiring Diagram (2 Of 8)

G08846138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

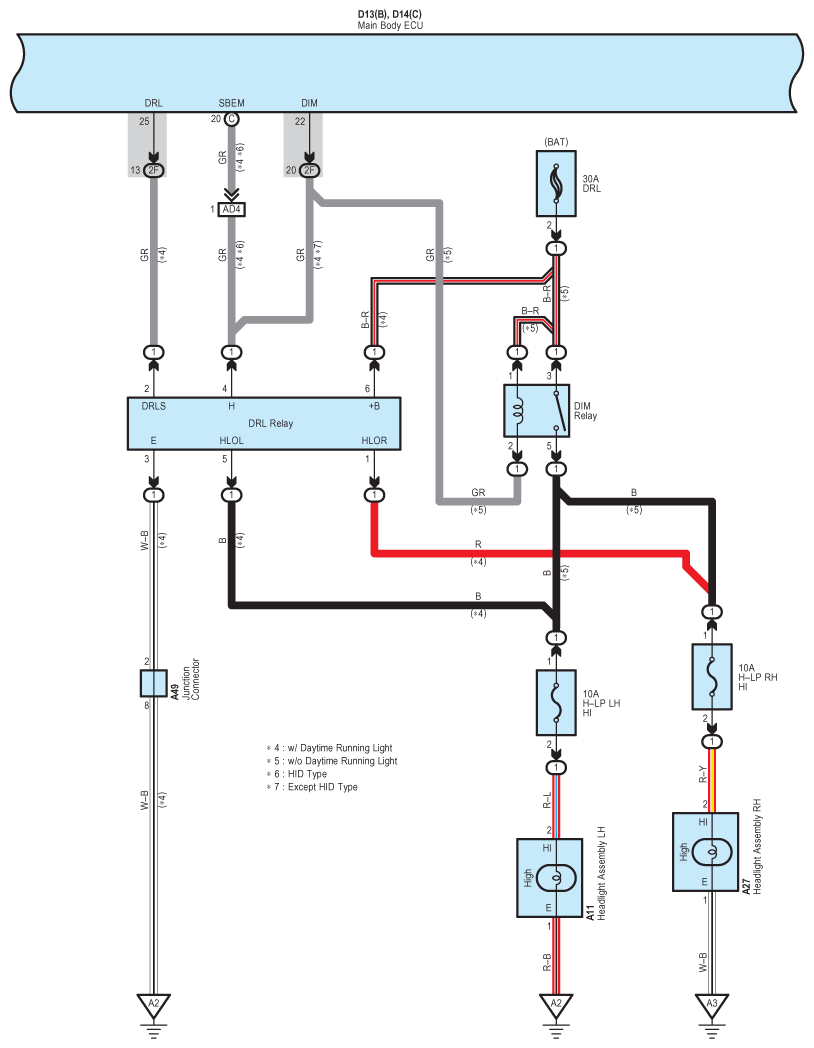

Fig 3: Headlight Wiring Diagram (3 Of 8)

G08846139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

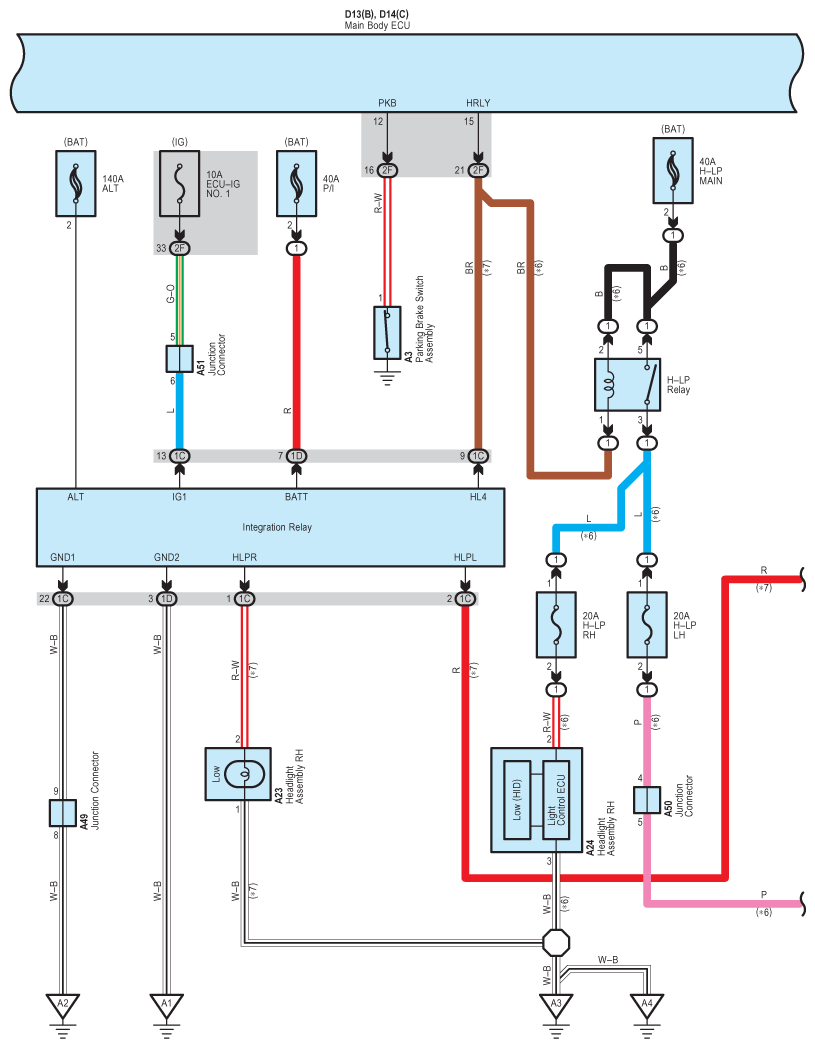

Fig 4: Headlight Wiring Diagram (4 Of 8)

G08846140

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

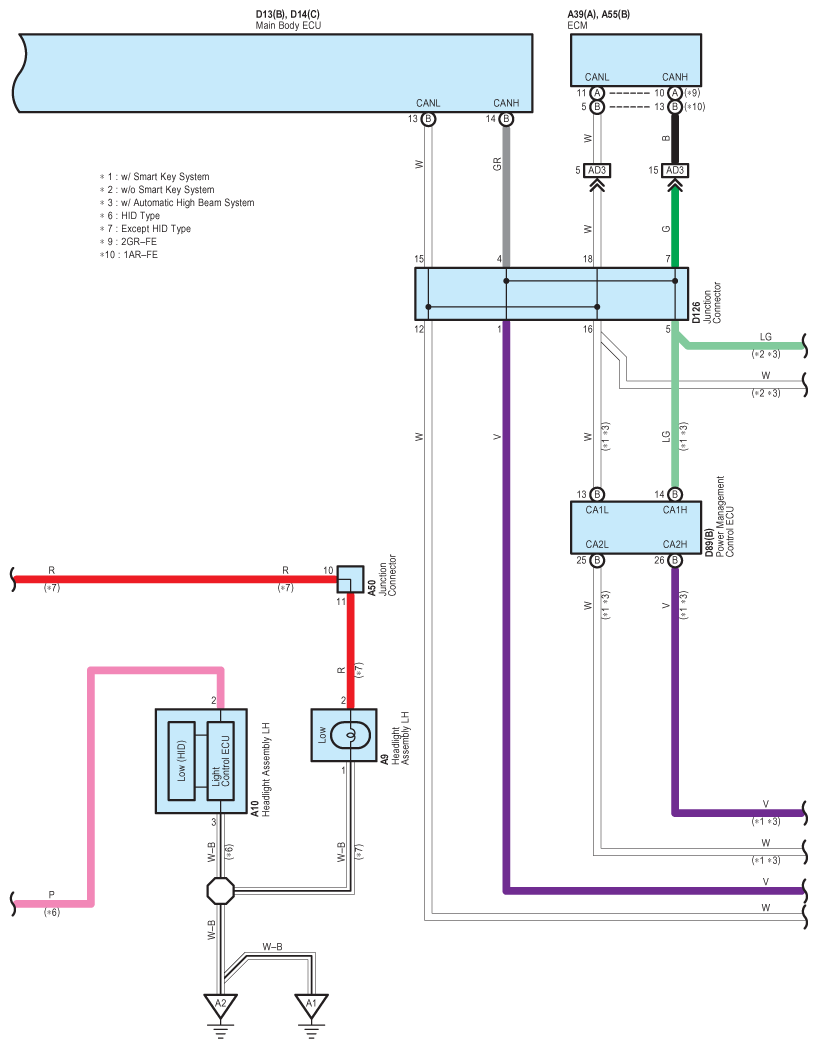

Fig 5: Headlight Wiring Diagram (5 Of 8)

G08846141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

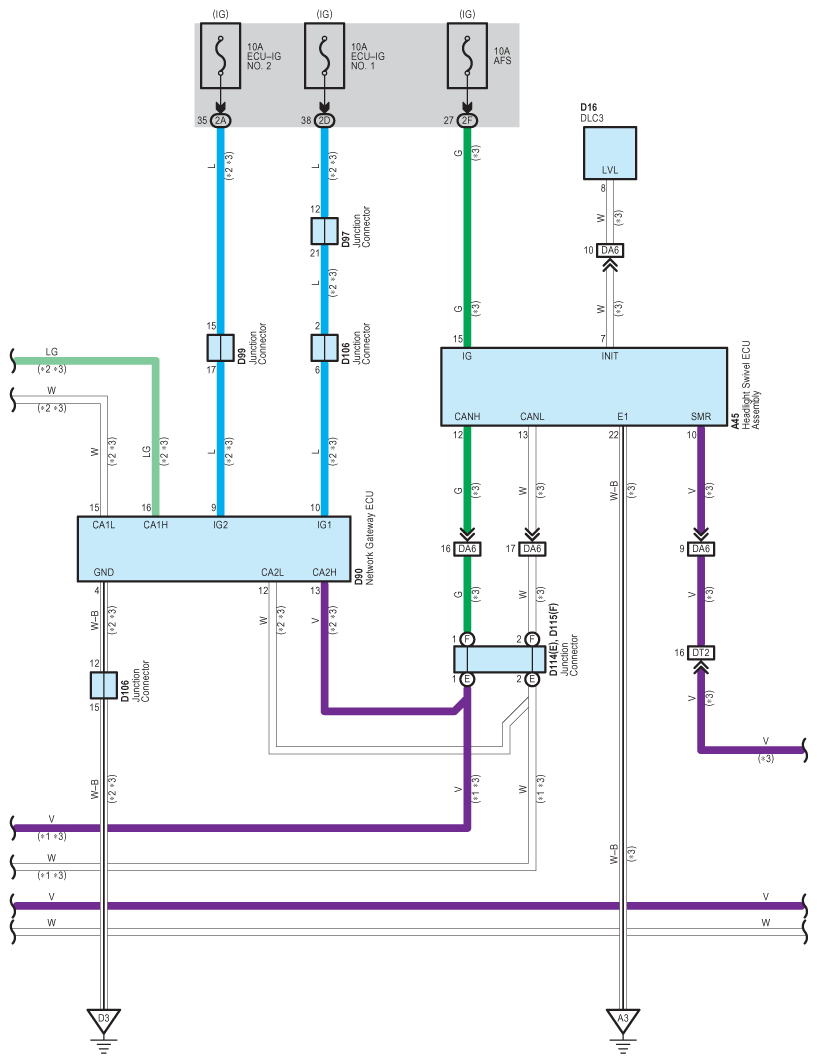

Fig 6: Headlight Wiring Diagram (6 Of 8)

G08846142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

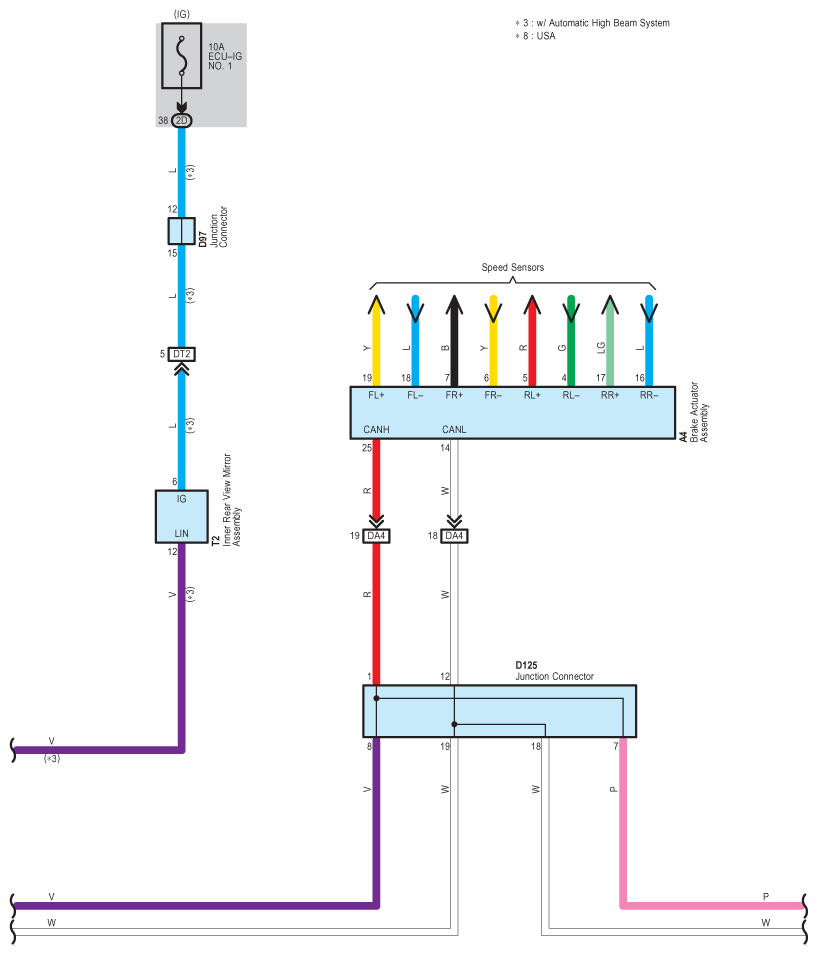

Fig 7: Headlight Wiring Diagram (7 Of 8)

G08846143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

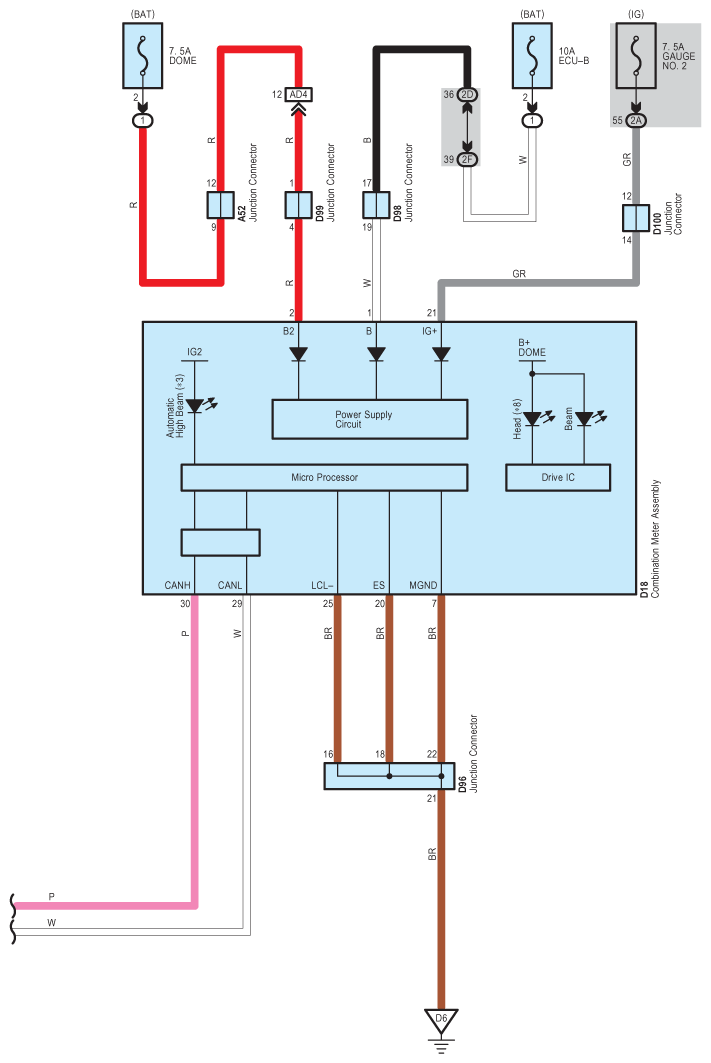

Fig 8: Headlight Wiring Diagram (8 Of 8)

G08846144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
