Interior Light: Notes

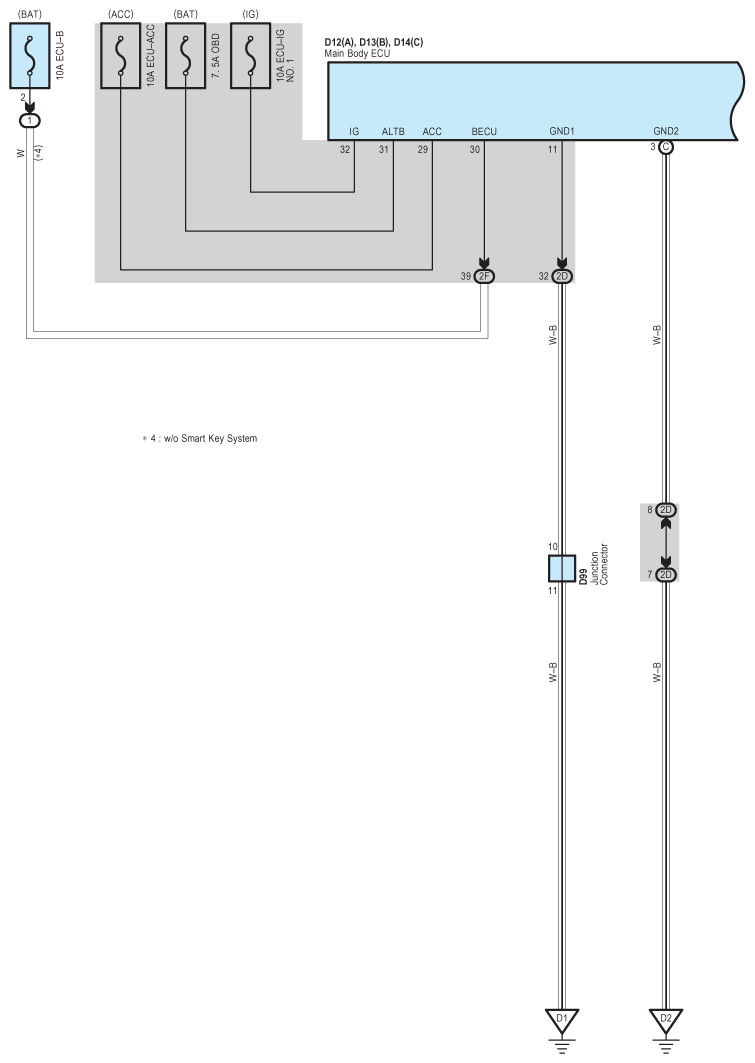

Fig 1: Interior Light Wiring Diagram (1 Of 10)

G08846159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

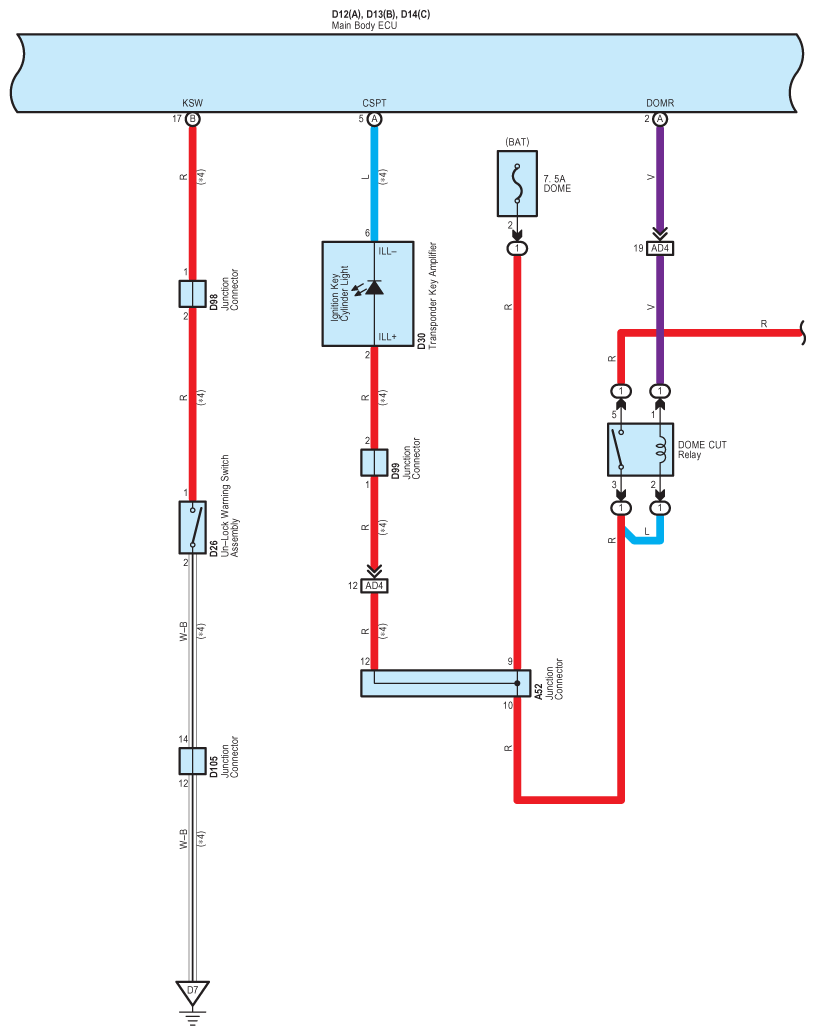

Fig 2: Interior Light Wiring Diagram (2 Of 10)

G08846160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

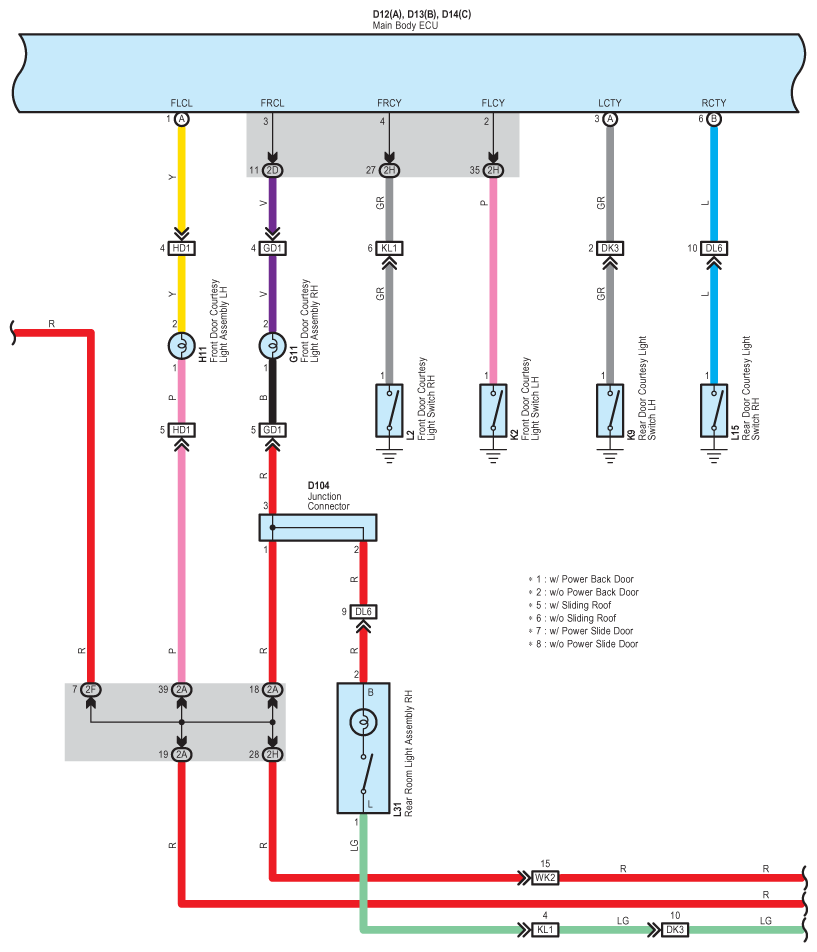

Fig 3: Interior Light Wiring Diagram (3 Of 10)

G08846161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

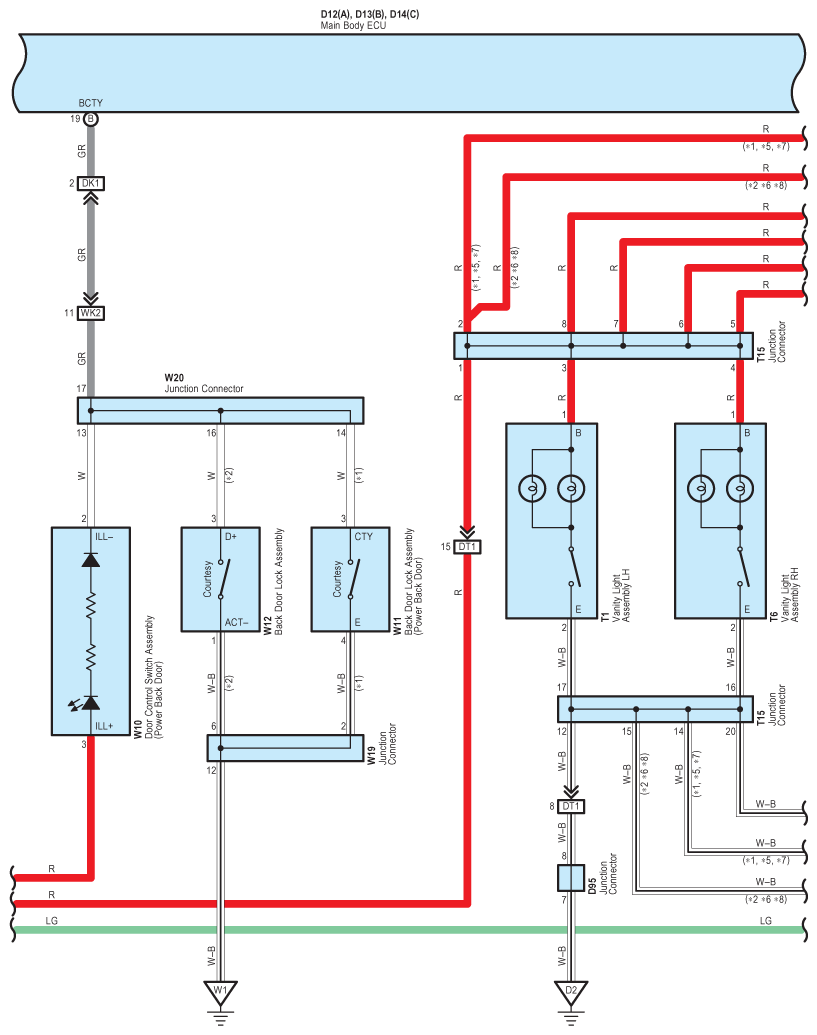

Fig 4: Interior Light Wiring Diagram (4 Of 10)

G08846162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

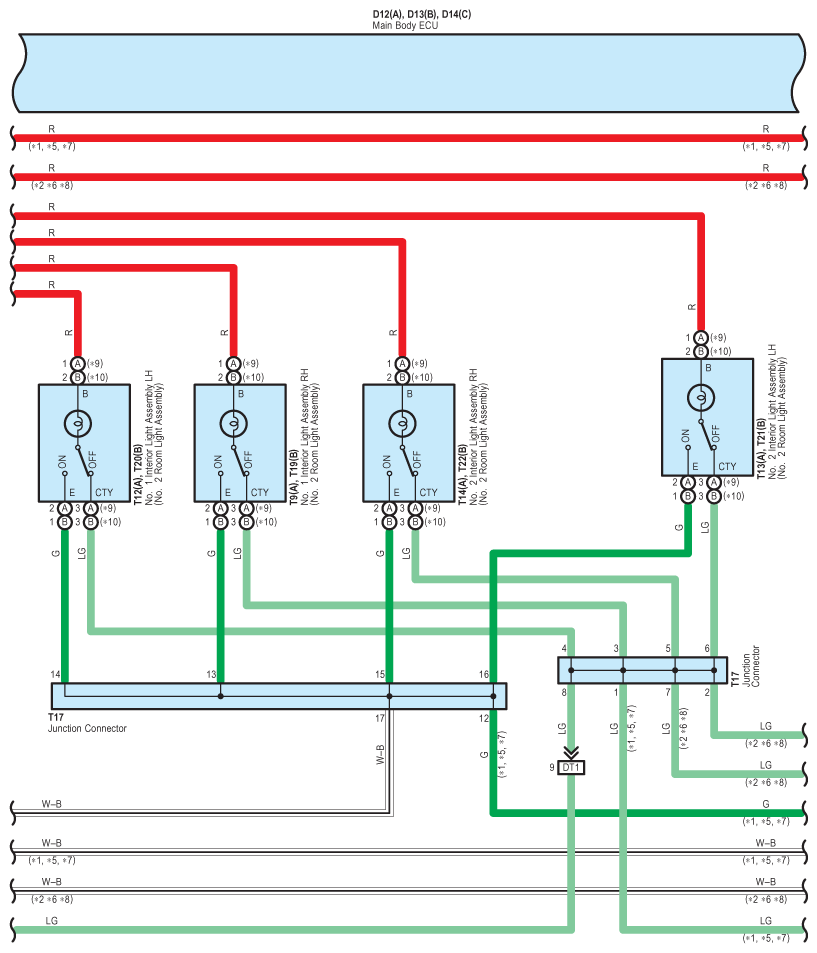

Fig 5: Interior Light Wiring Diagram (5 Of 10)

G08846163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

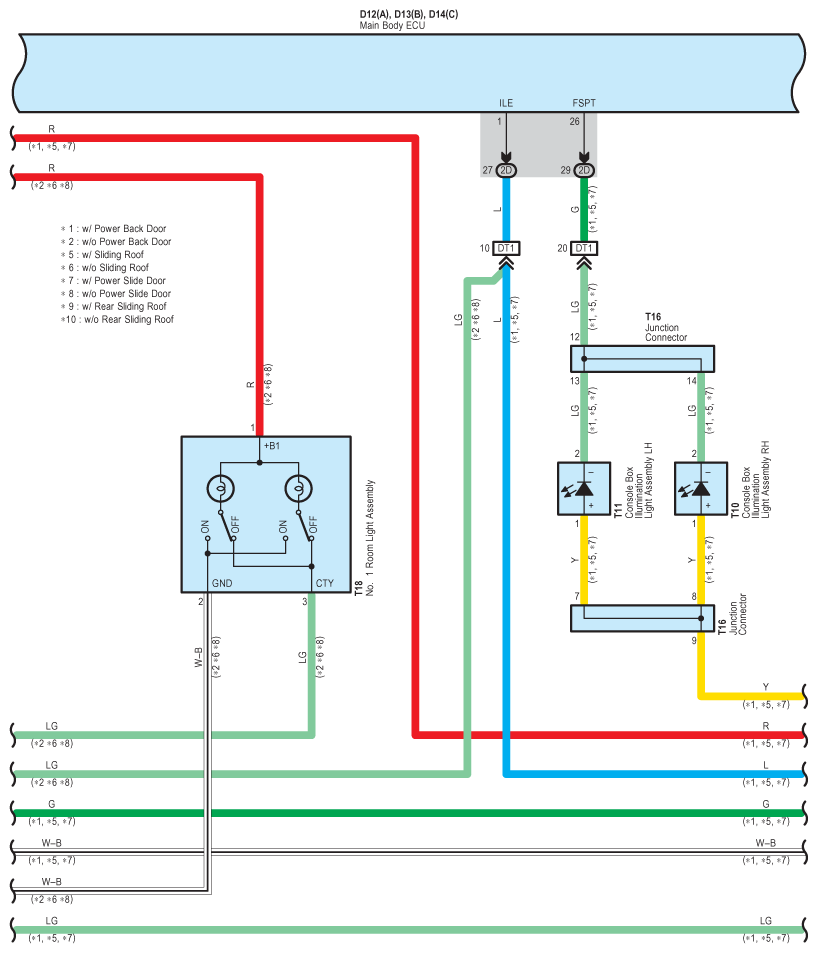

Fig 6: Interior Light Wiring Diagram (6 Of 10)

G08846164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

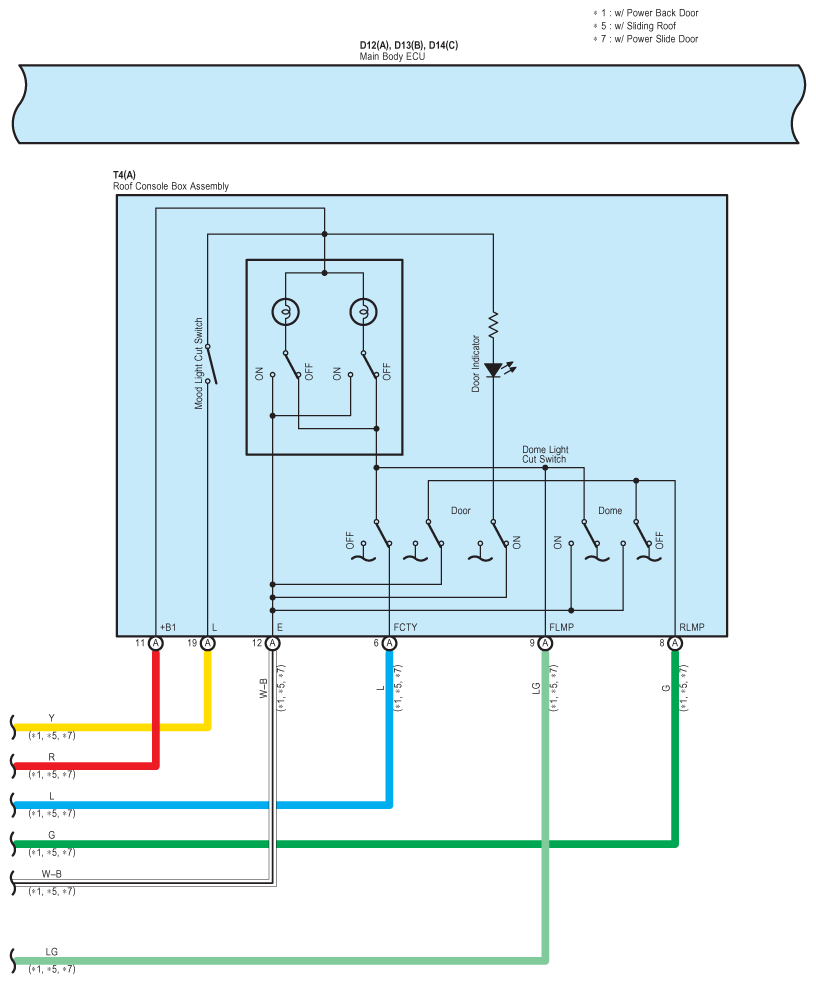

Fig 7: Interior Light Wiring Diagram (7 Of 10)

G08846165

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

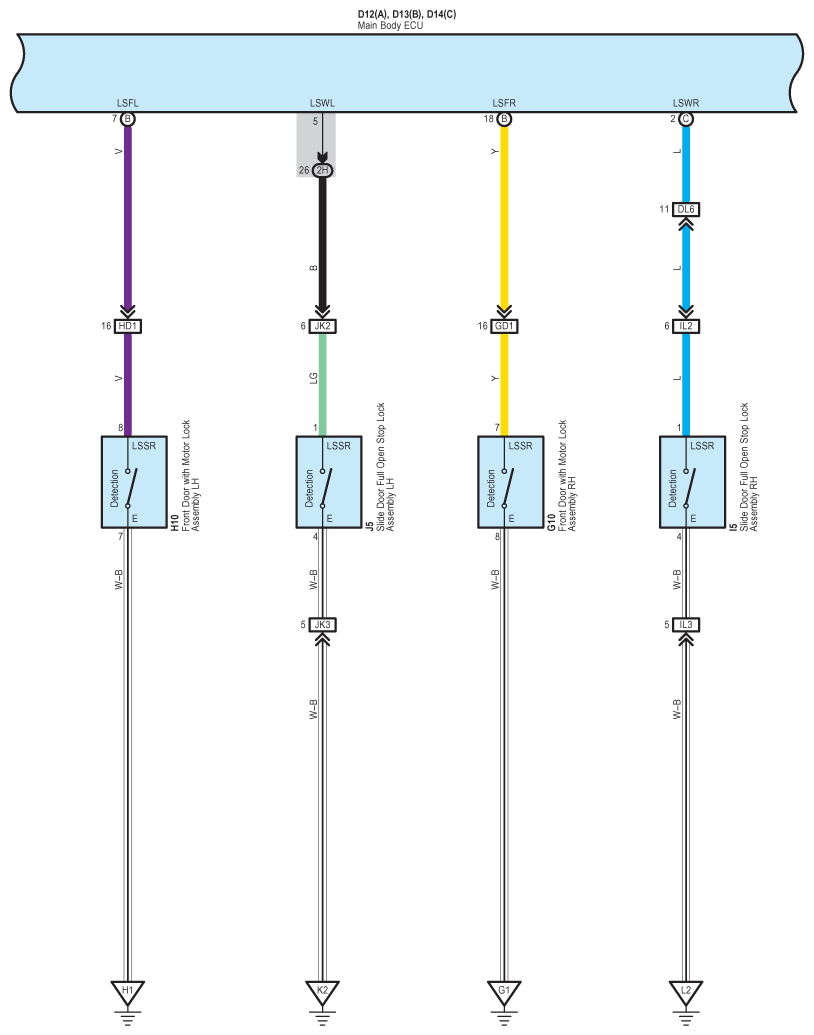

Fig 8: Interior Light Wiring Diagram (8 Of 10)

G08846166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

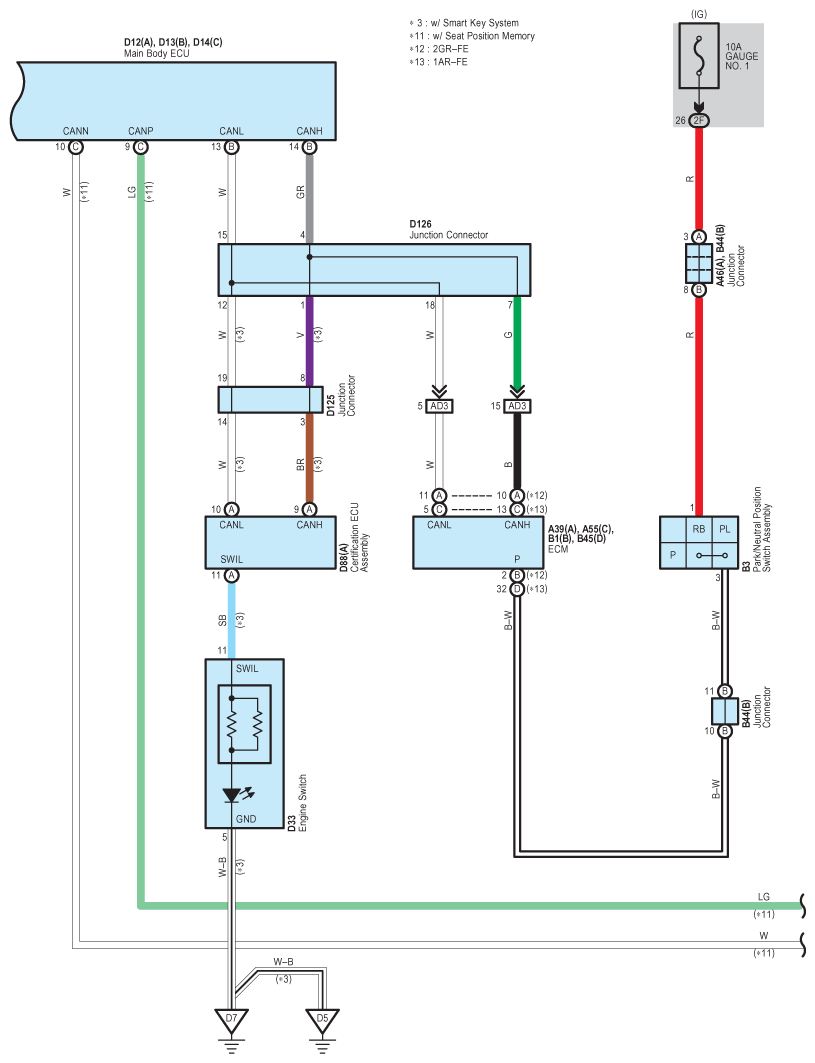

Fig 9: Interior Light Wiring Diagram (9 Of 10)

G08846167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

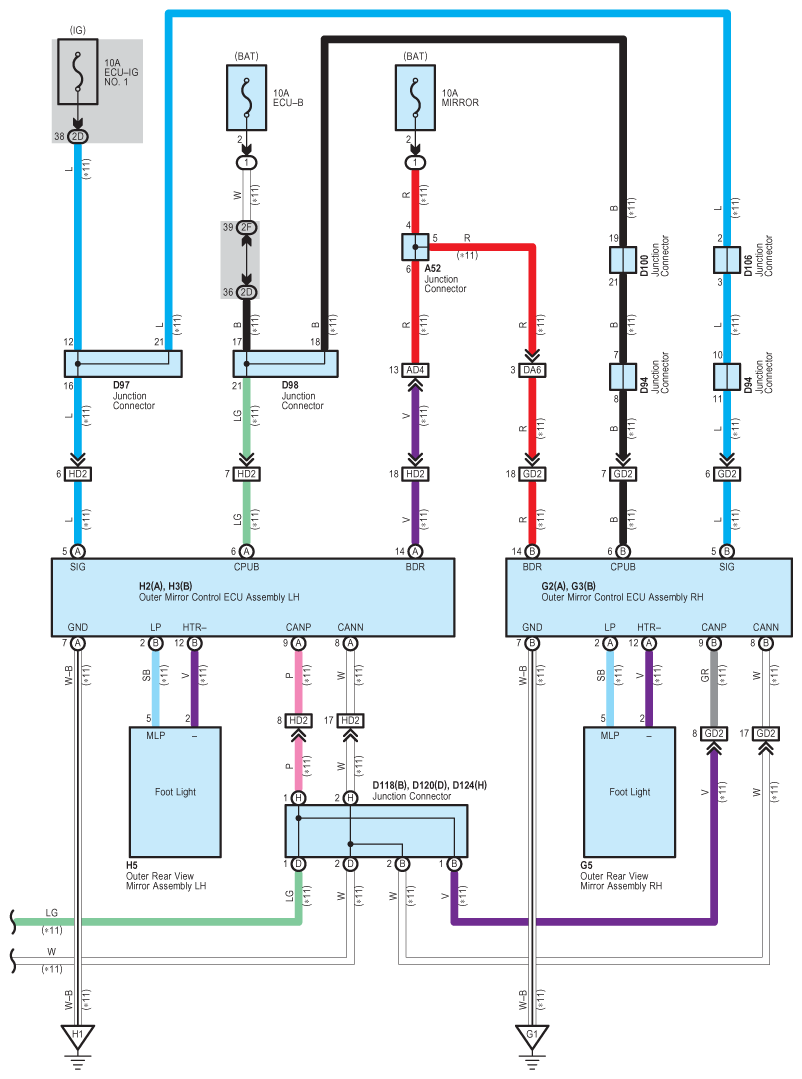

Fig 10: Interior Light Wiring Diagram (10 Of 10)

G08846168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
