System Diagram

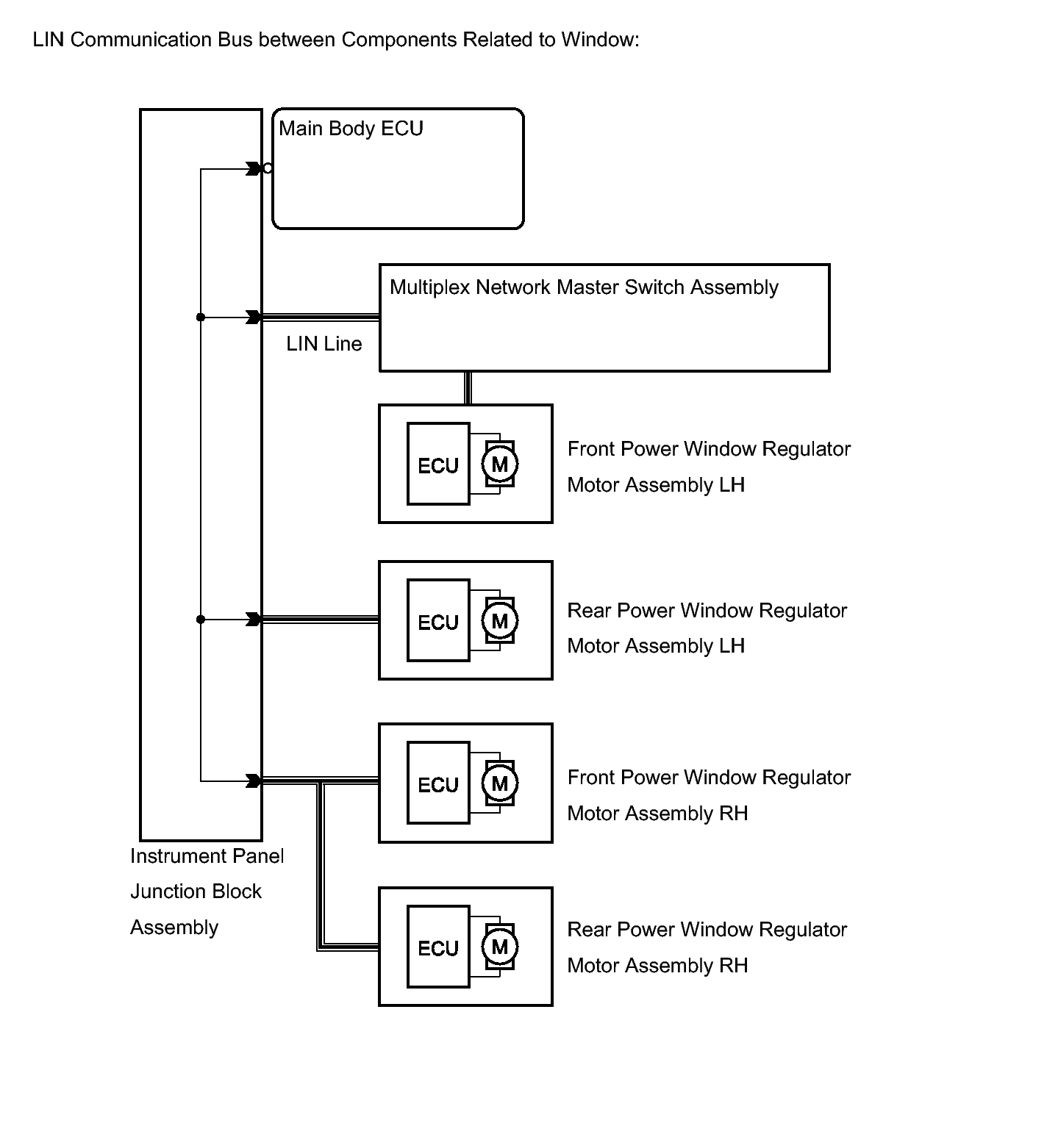

Fig 1: LIN Communication System - System Diagram (1 Of 4)
GTY302370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

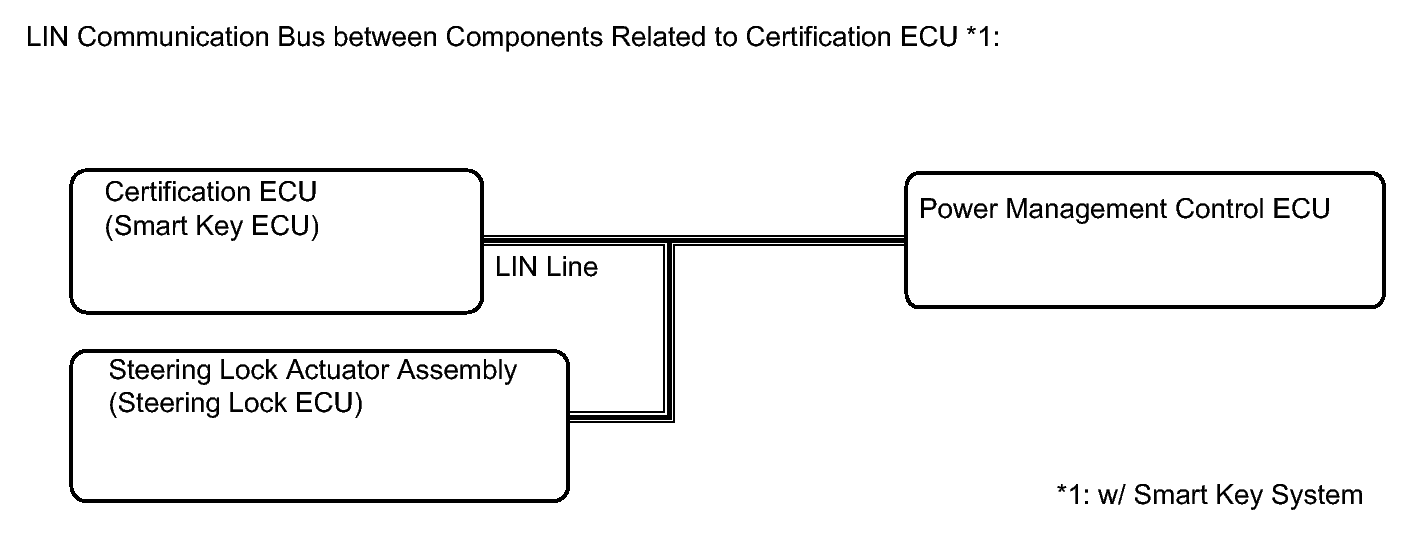

Fig 2: LIN Communication System - System Diagram (2 Of 4)
GTY302769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

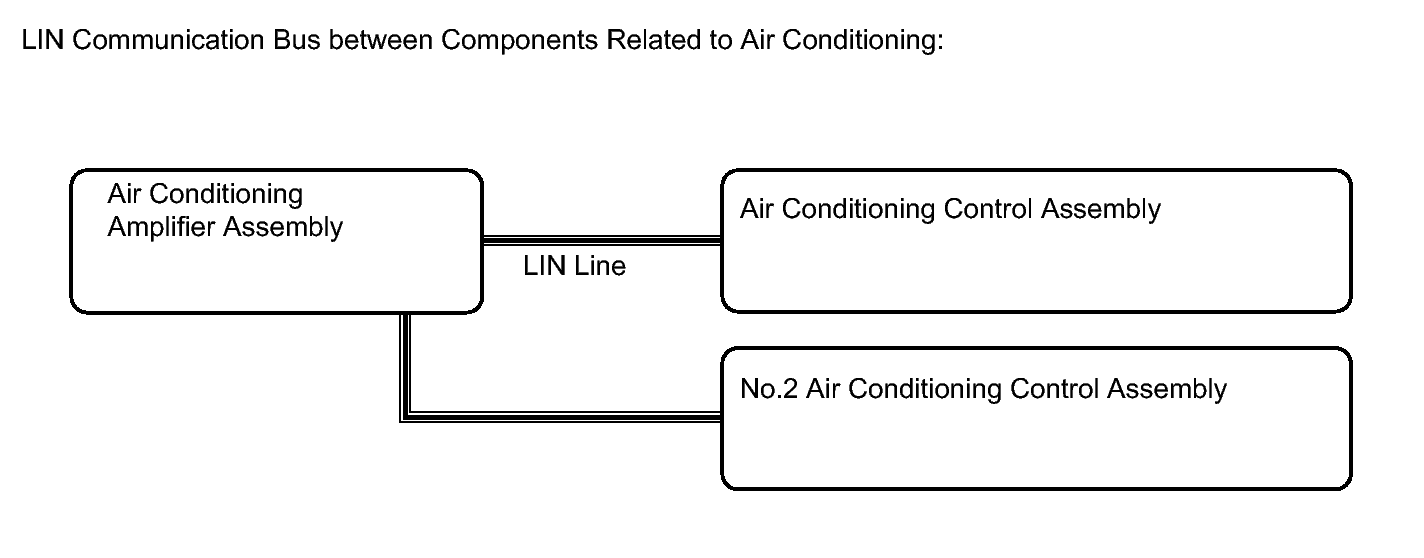

Fig 3: LIN Communication System - System Diagram (3 Of 4)
GTY294626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

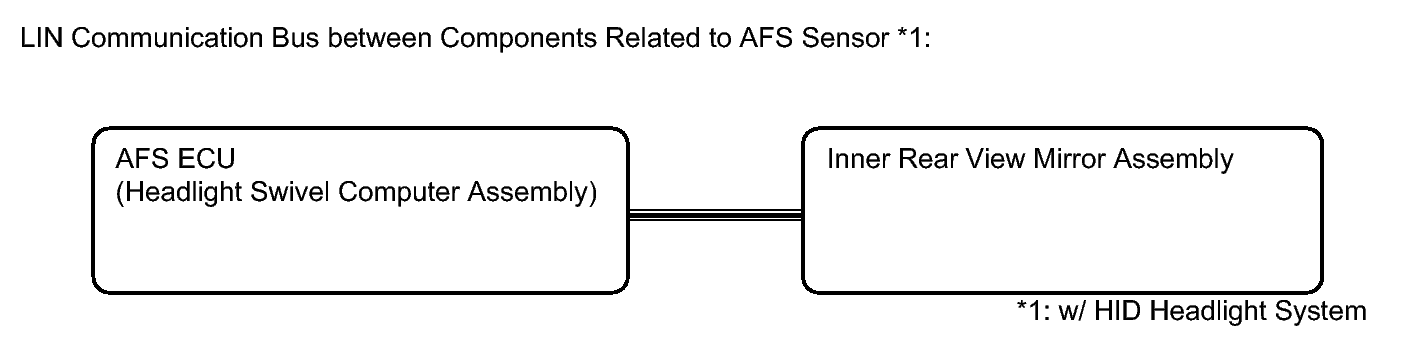

Fig 4: LIN Communication System - System Diagram (4 Of 4)
GTY297159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
