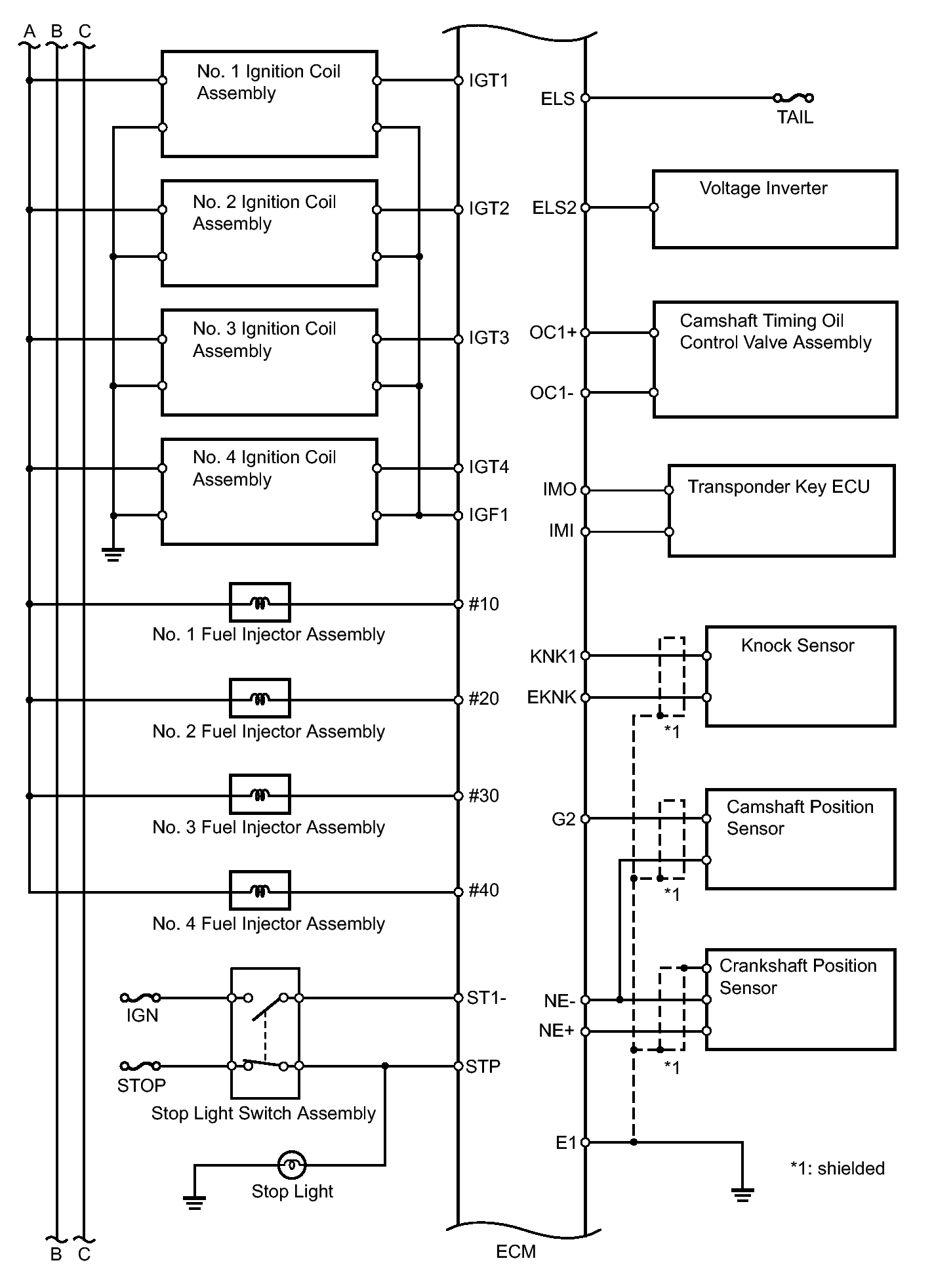

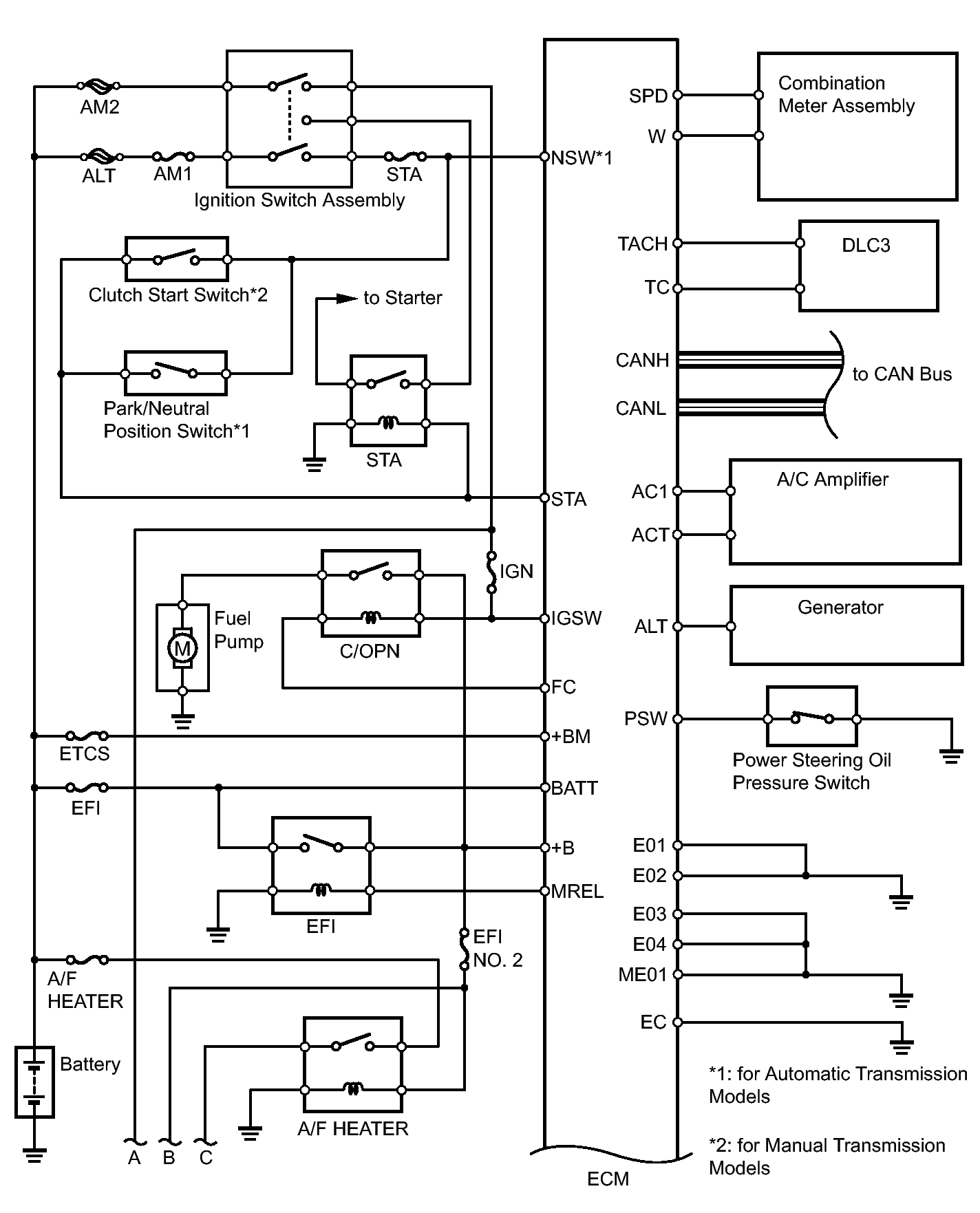

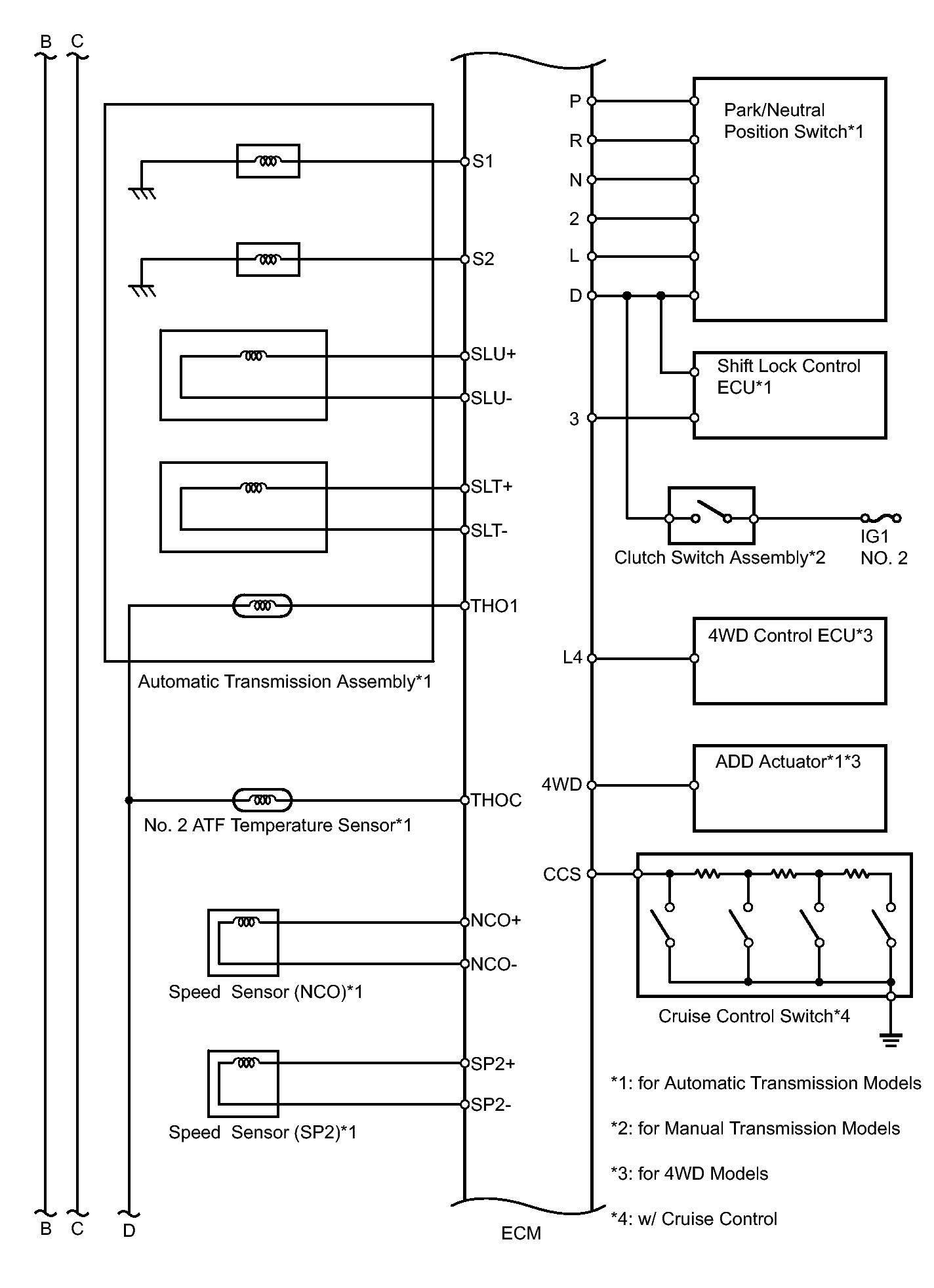

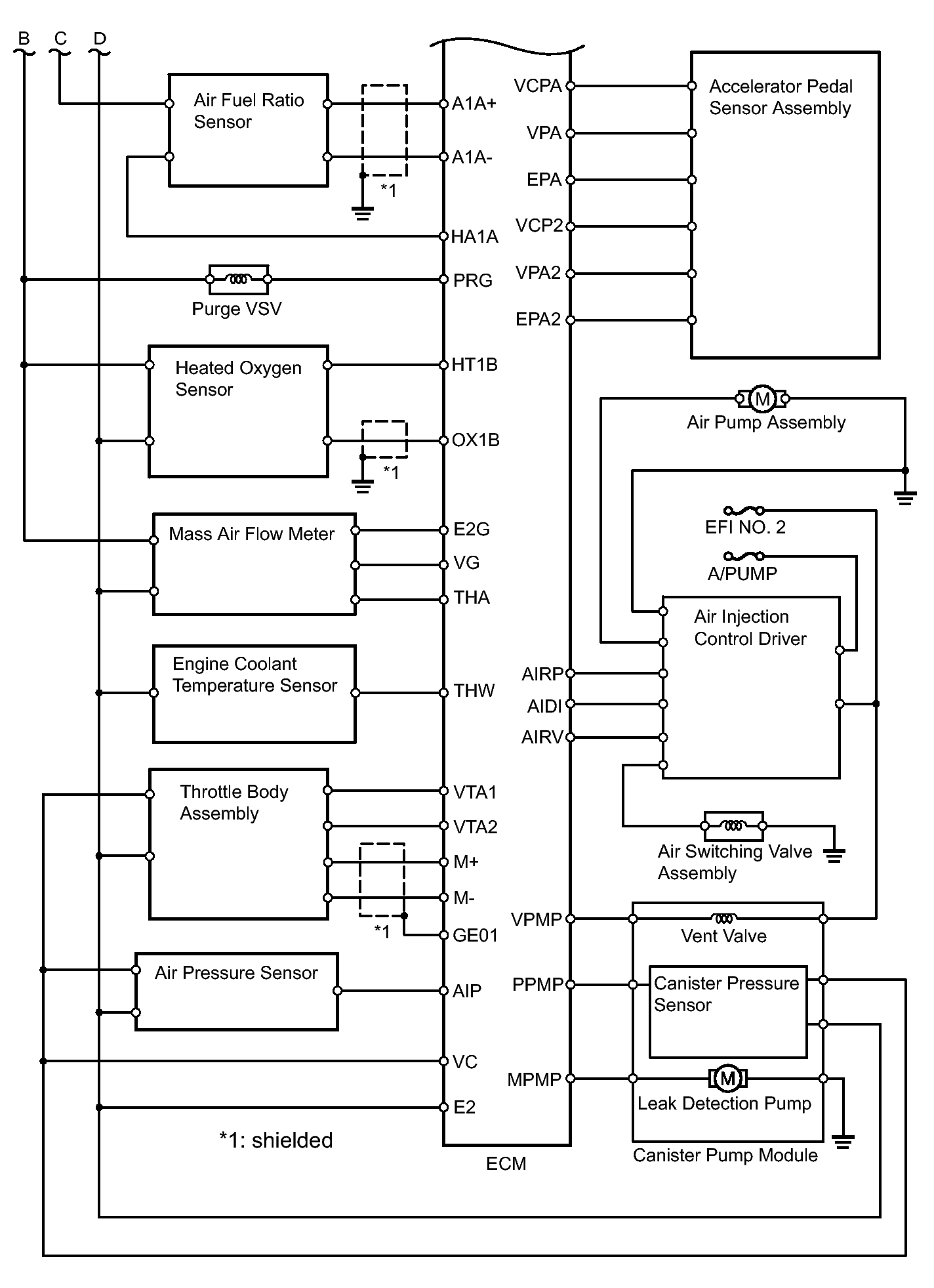

System Diagram
- SYSTEM DIAGRAM
- COMMUNICATION WITH OTHER COMPUTERS
HINT:
For CAN communication line connection information, refer to CAN Communication System. Refer to SYSTEM DESCRIPTION .
HINT:
For CAN communication line connection information, refer to CAN Communication System. Refer to SYSTEM DESCRIPTION .
