Inspection

2TR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSPECTION

1. INSPECT MASS AIR FLOW METER

(a) Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.

OK:

There is no foreign matter.

If the result is not as specified, replace the mass air flow meter.





Text in Illustration

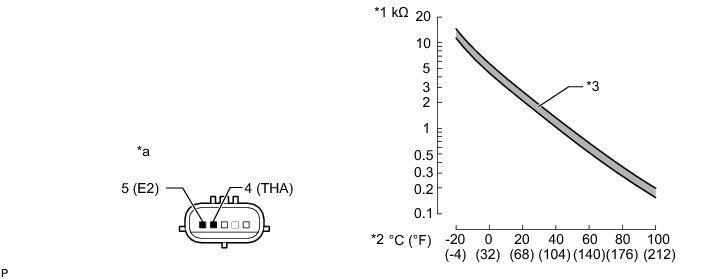

(b) Check the resistance.





Text in Illustration





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the mass air flow meter.
