Engine Temperature Sensor: Testing and Inspection

2TR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

1. INSPECT E.F.I. ENGINE COOLANT TEMPERATURE SENSOR





(a) Check the resistance.

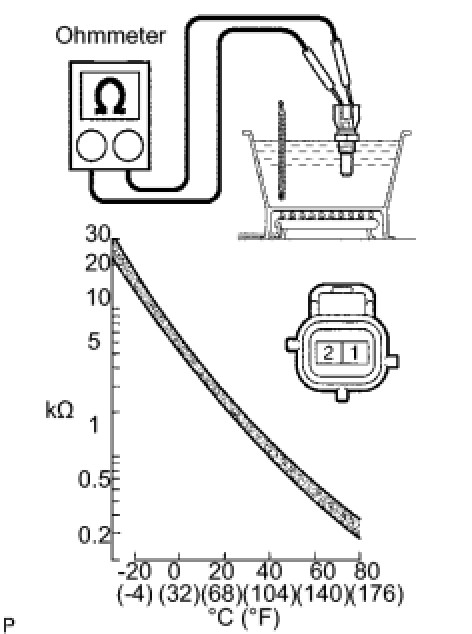

(1) Using an ohmmeter, measure the resistance between the terminals.

Standard:





NOTICE:
If checking the engine coolant temperature sensor in water, be careful not to allow water to intrude into the terminals. After checking, wipe the water off the engine coolant temperature sensor.

If the result is not as specified, replace the engine coolant temperature sensor.
