Timing Cover

TIMING CHAIN COVER










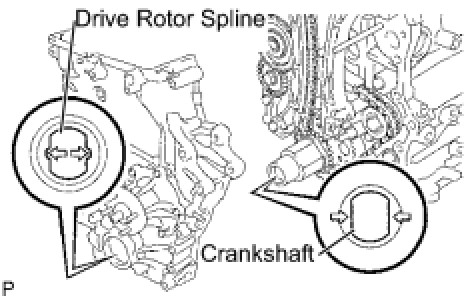

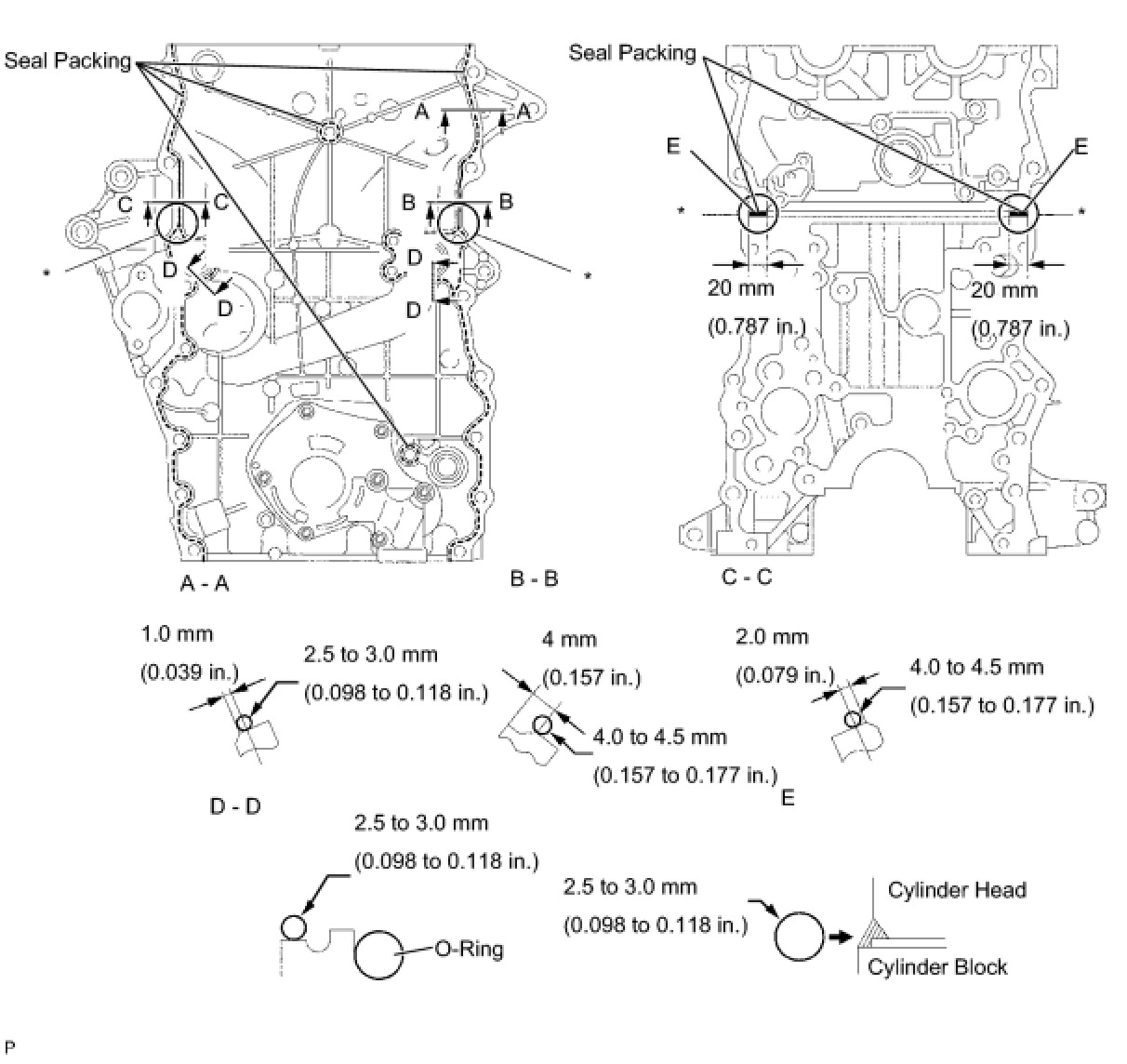

Temporarily install the the timing chain cover with the 19 bolts and 2 nuts, but do not tighten the bolts and nuts yet.

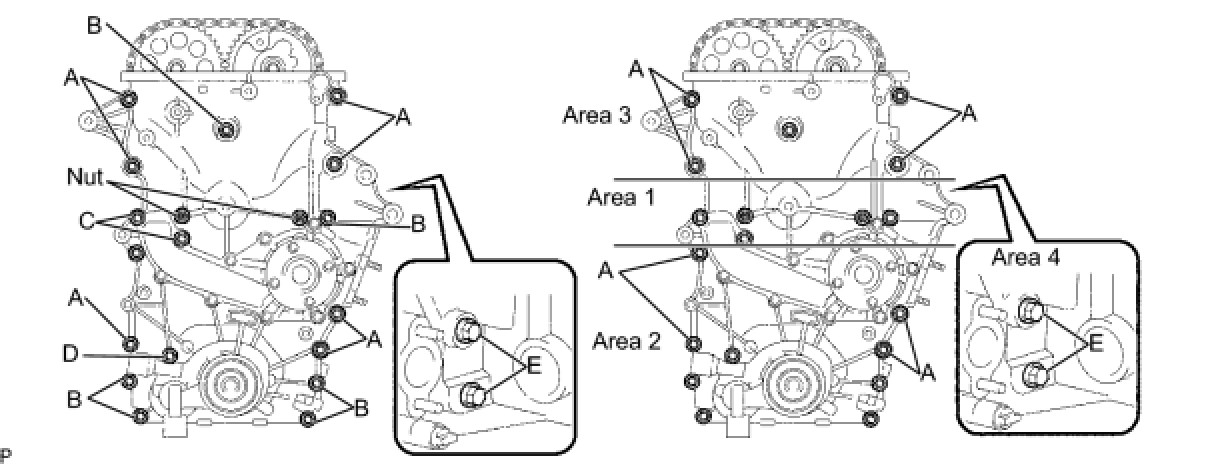

Excluding bolts A, fully tighten the bolts and nuts in this order: Area 1, Area 2 and Area 3.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Bolt length:

75 mm (2.95 in.) for bolt A (M10)
75 mm (2.95 in.) for bolt B (M8)
87 mm (3.43 in.) for bolt C
95 mm (3.74 in.) for bolt D

Fully tighten the bolts labeled A in this order: Area 2 and Area 3.

Torque 46 Nm (469 kgf-cm, 34 ft-lbf)

Fully tighten the bolts labeled E in Area 4.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Bolt length: 35 mm (1.37 in.) for bolt E
