Engine Immobilizer System (2TR-FE): Notes

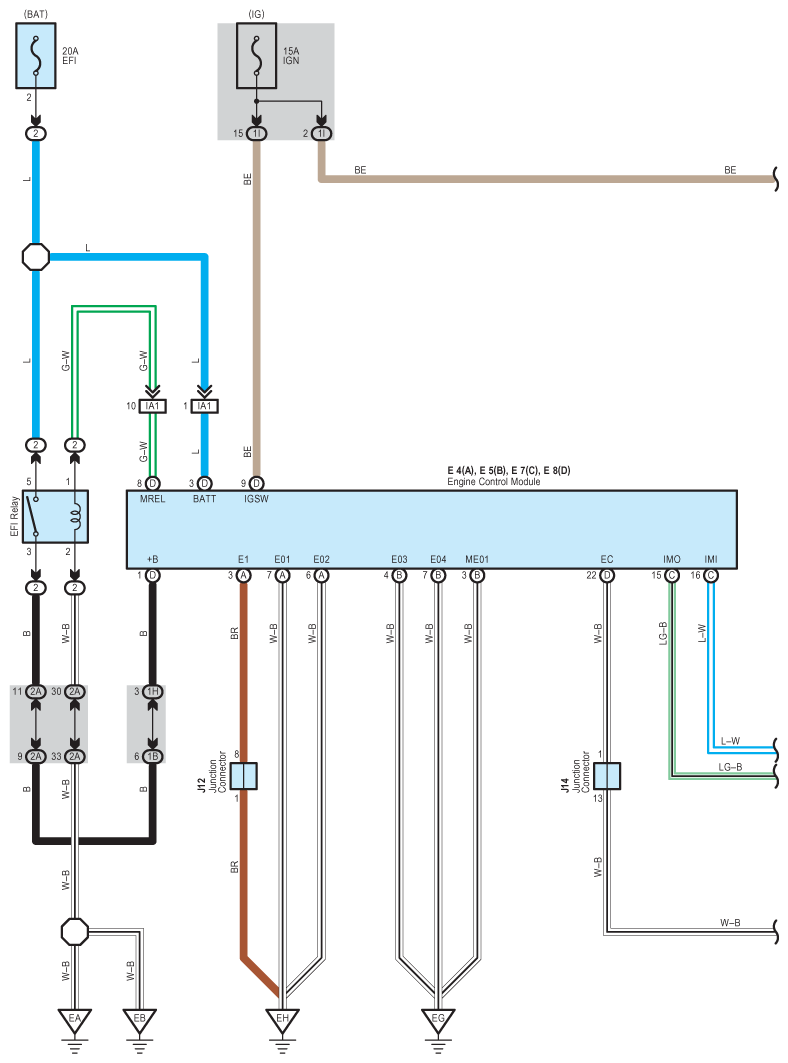

Fig 1: Engine Immobilizer System Wiring Diagram (2TR-FE; 1 Of 2)
G08847175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

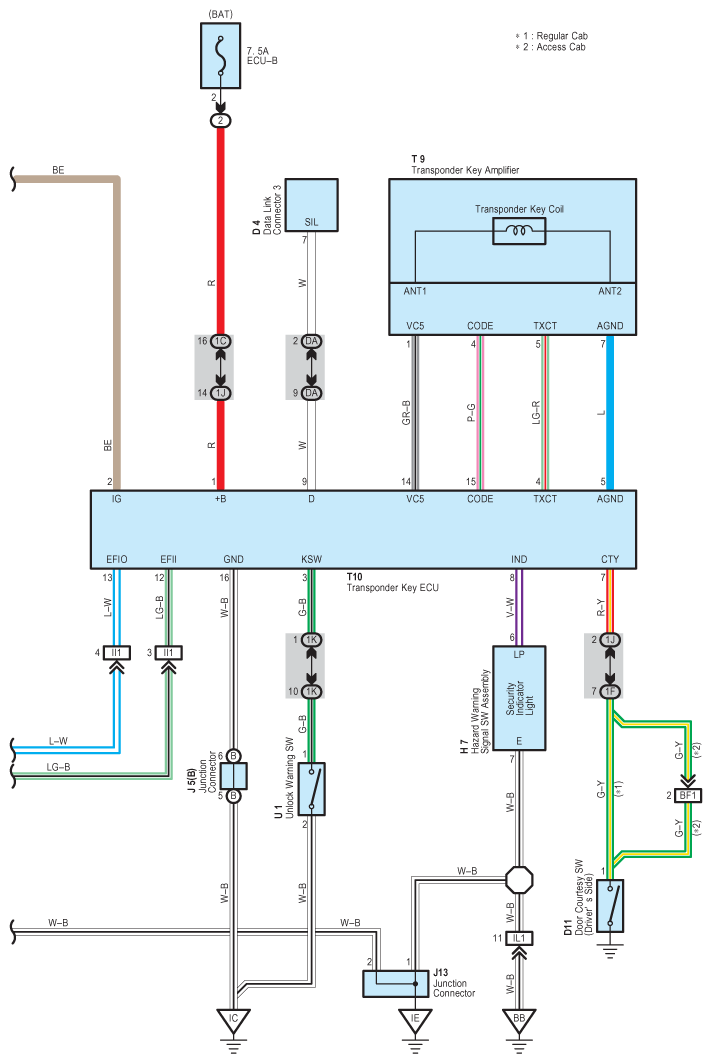

Fig 2: Engine Immobilizer System Wiring Diagram (2TR-FE; 2 Of 2)
G08847176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
