Pinout Values and Diagnostic Parameters
U760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: TERMINALS OF ECU
1. TCM
HINT

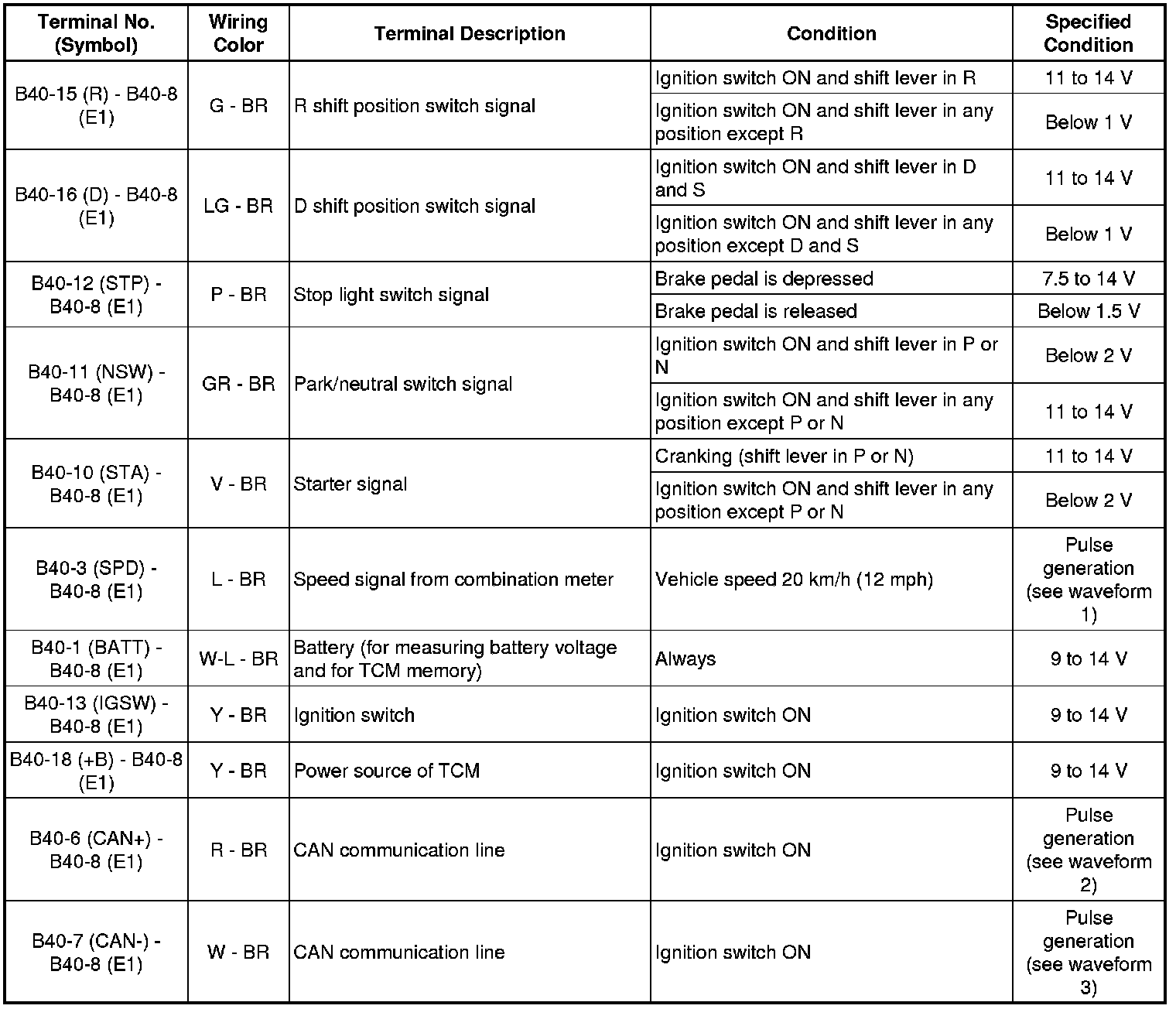

Each TCM terminal standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Terminal No. (Symbol)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".

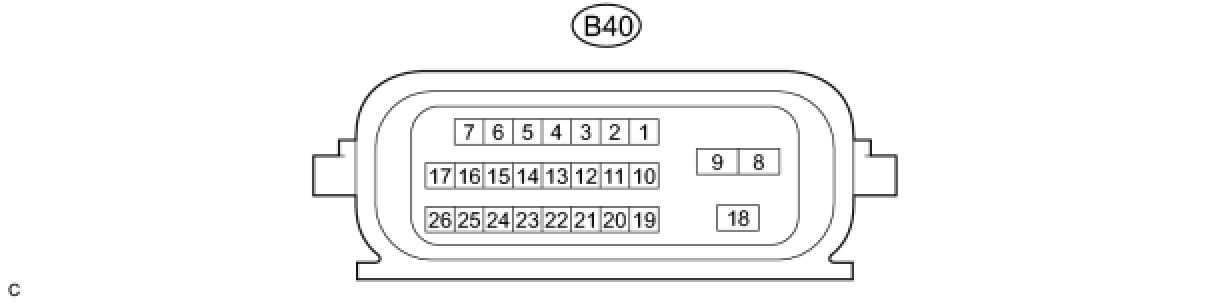

Use the illustration above as a reference for the TCM terminals.

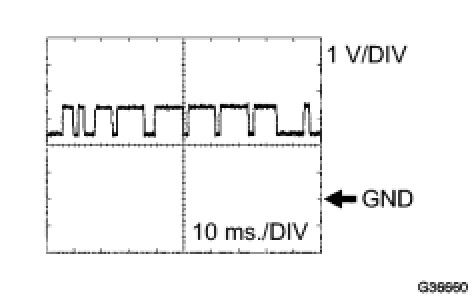

(a) Waveform 1
Reference

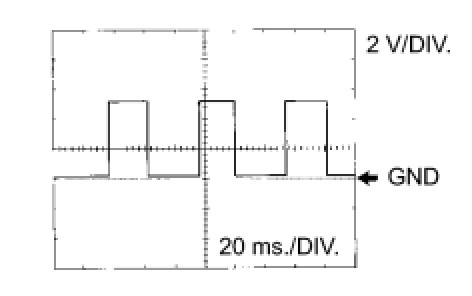

(b) Waveform 2

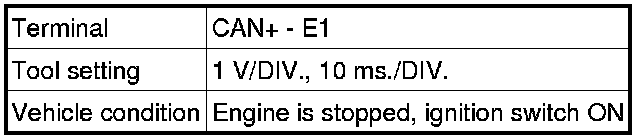

Waveform 2:
Reference

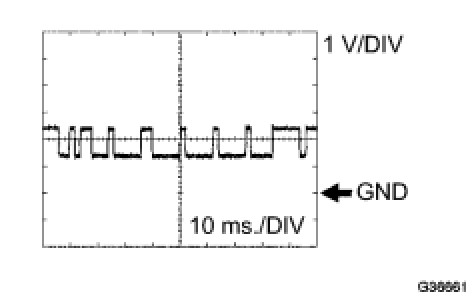

(c) Waveform 3

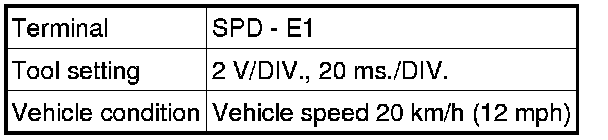

Waveform 3:
Reference
2. ECM
HINT

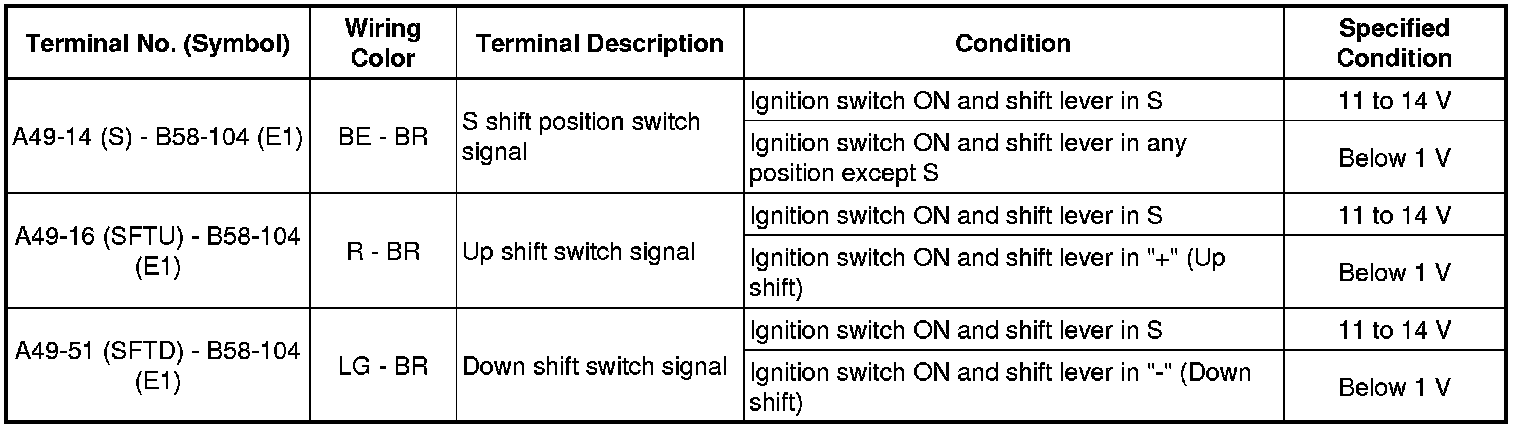

Each ECM terminal standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Terminal No. (Symbol)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".
Use the illustration below as a reference for the ECM terminals.
