Automatic Transmission/Transaxle

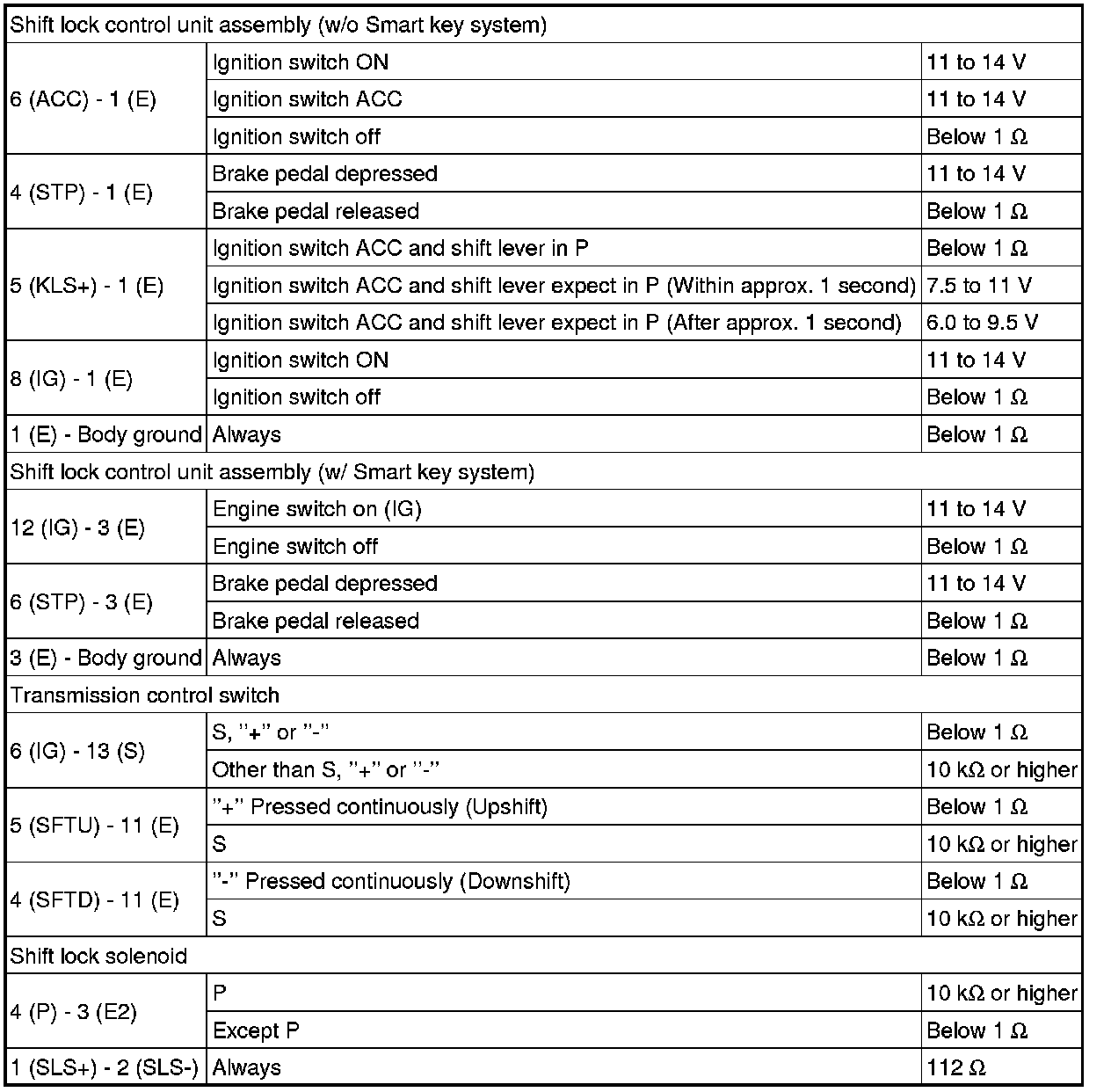

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

Park/Neutral Position Switch






Shift Lever






Shift Solenoid Valve
