Engine Immobilizer System (w/o Smart Key System): Notes

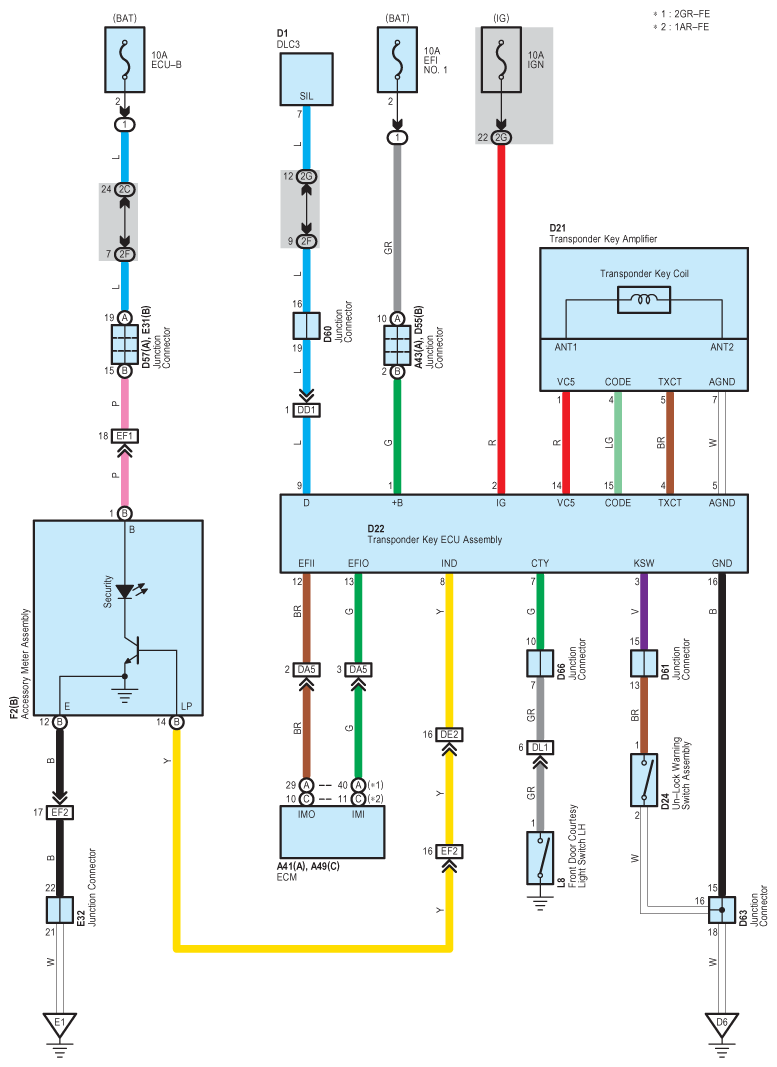

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Circuit Diagram
G08968990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
