DTC B2285: Steering Lock Position Signal Circuit Malfunction: Wiring Diagram

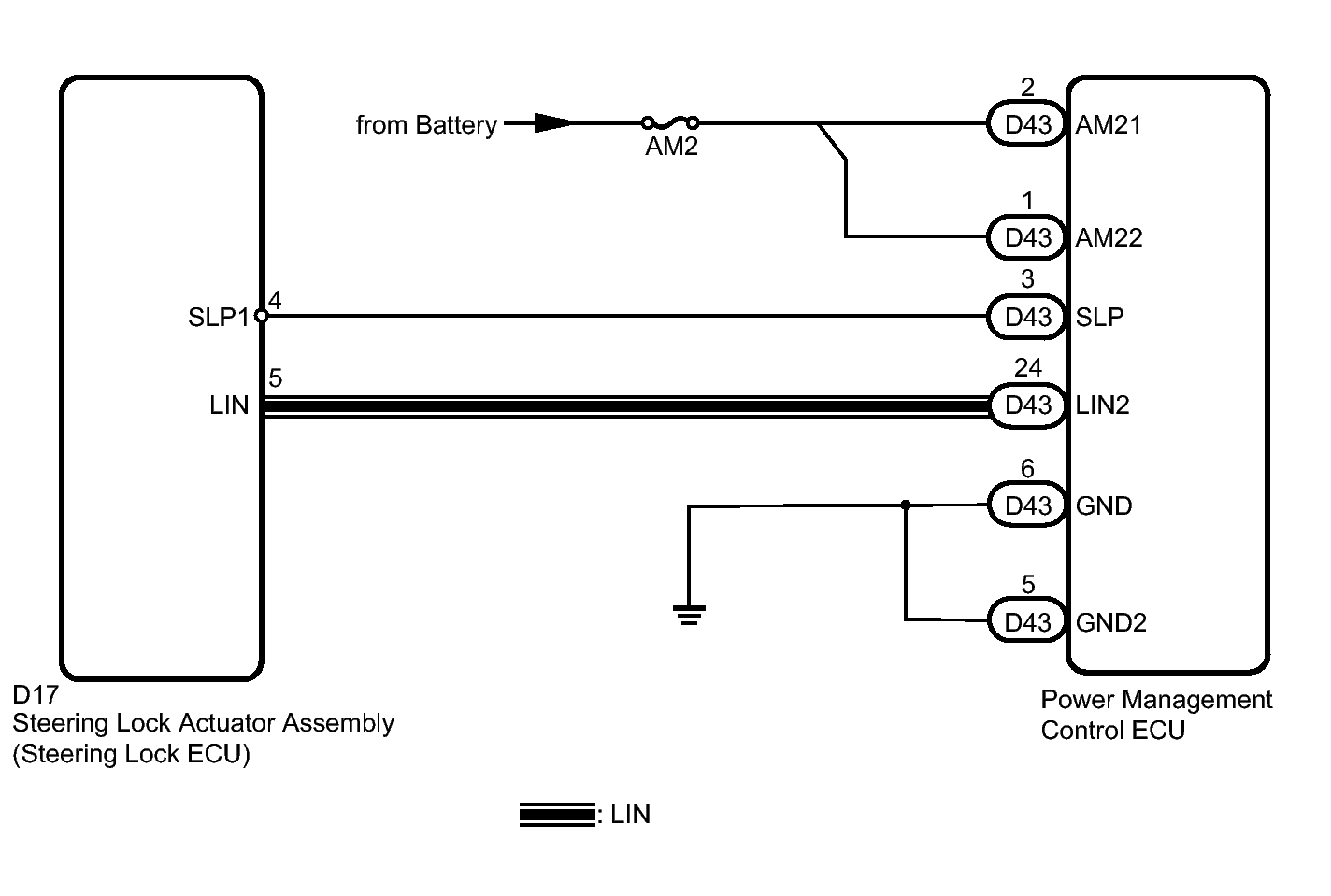

Fig 1: Identifying Steering Lock Actuator Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
