DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor "A" Circuit: Wiring Diagram

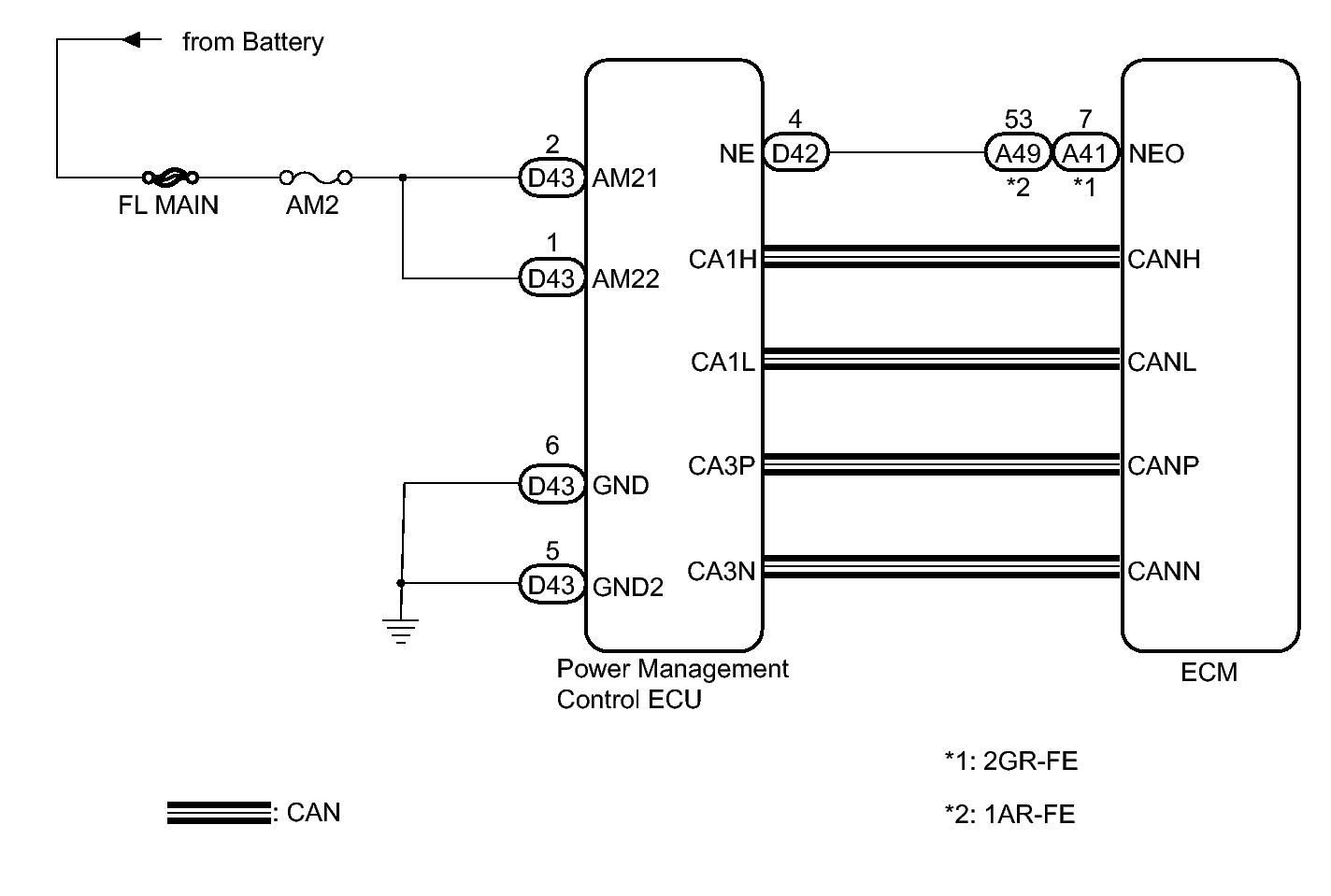

Fig 1: Identifying Power Management Control ECU & ECM CAN Communication Diagram
GTY249474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
