Engine does not Start: Wiring Diagram

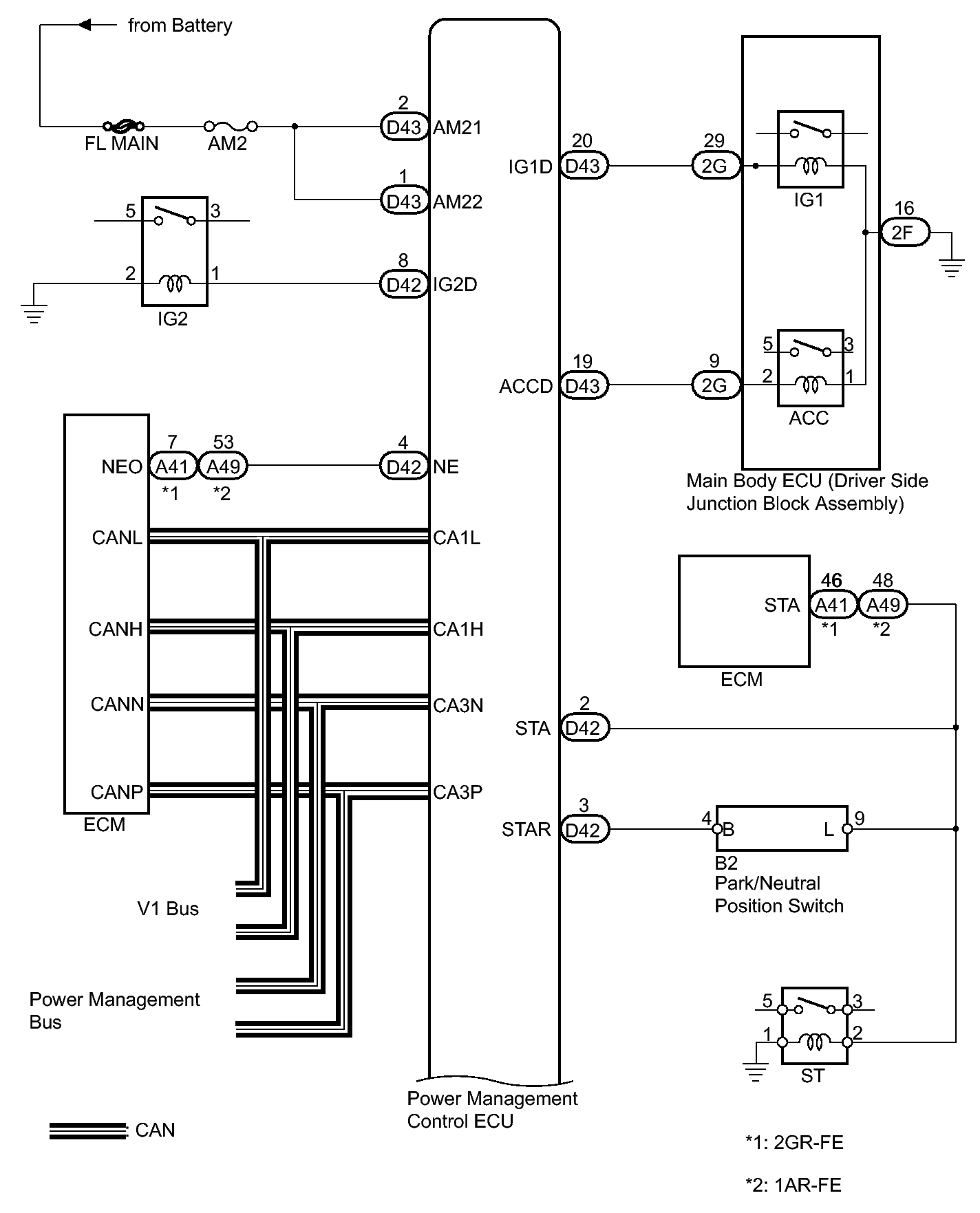

Fig 1: Identifying Power Management Control ECU Circuit Diagram (1 Of 2)
GTY249742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

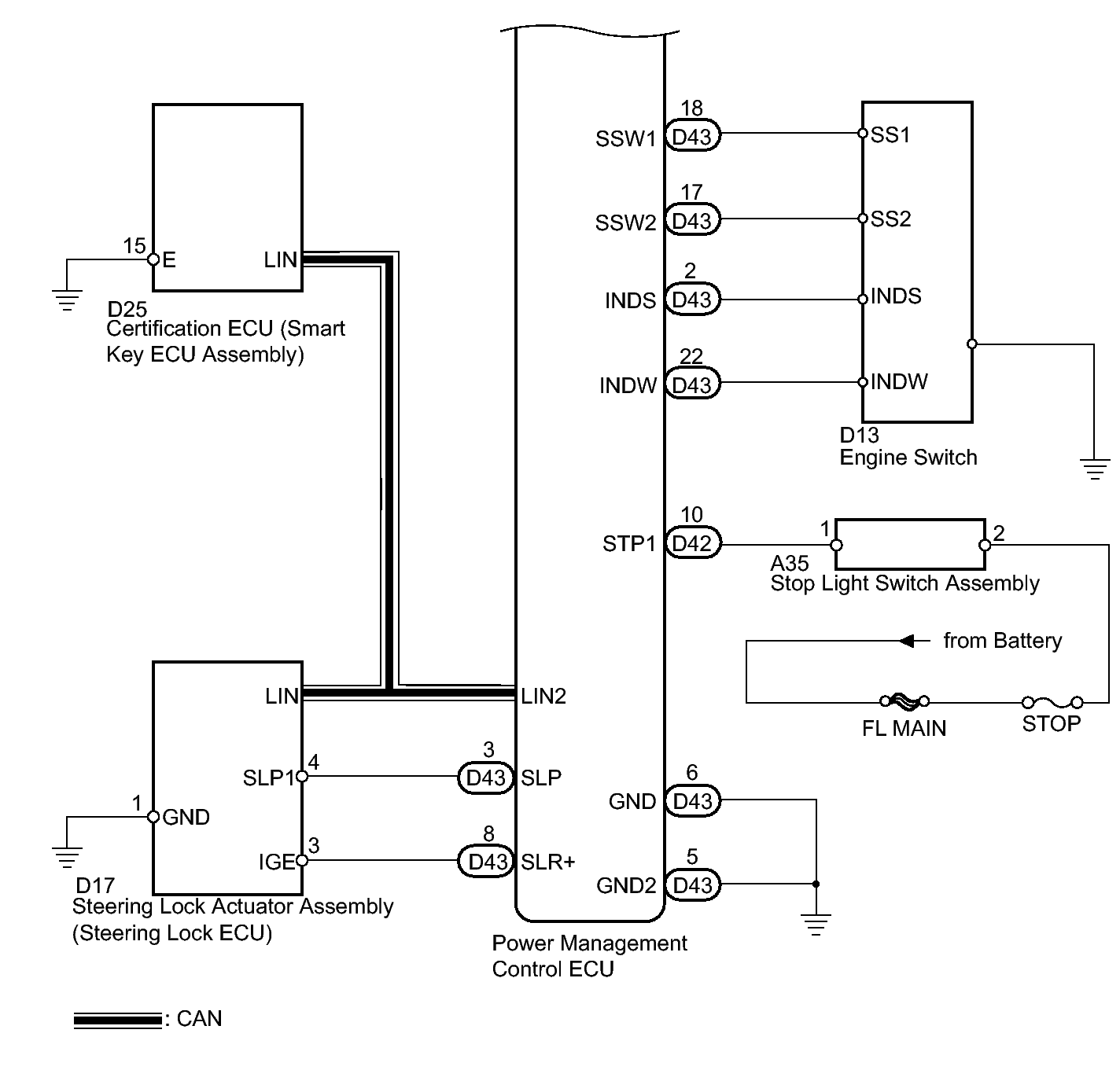

Fig 2: Identifying Power Management Control ECU Circuit Diagram (2 Of 2)
GTY293869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
