Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

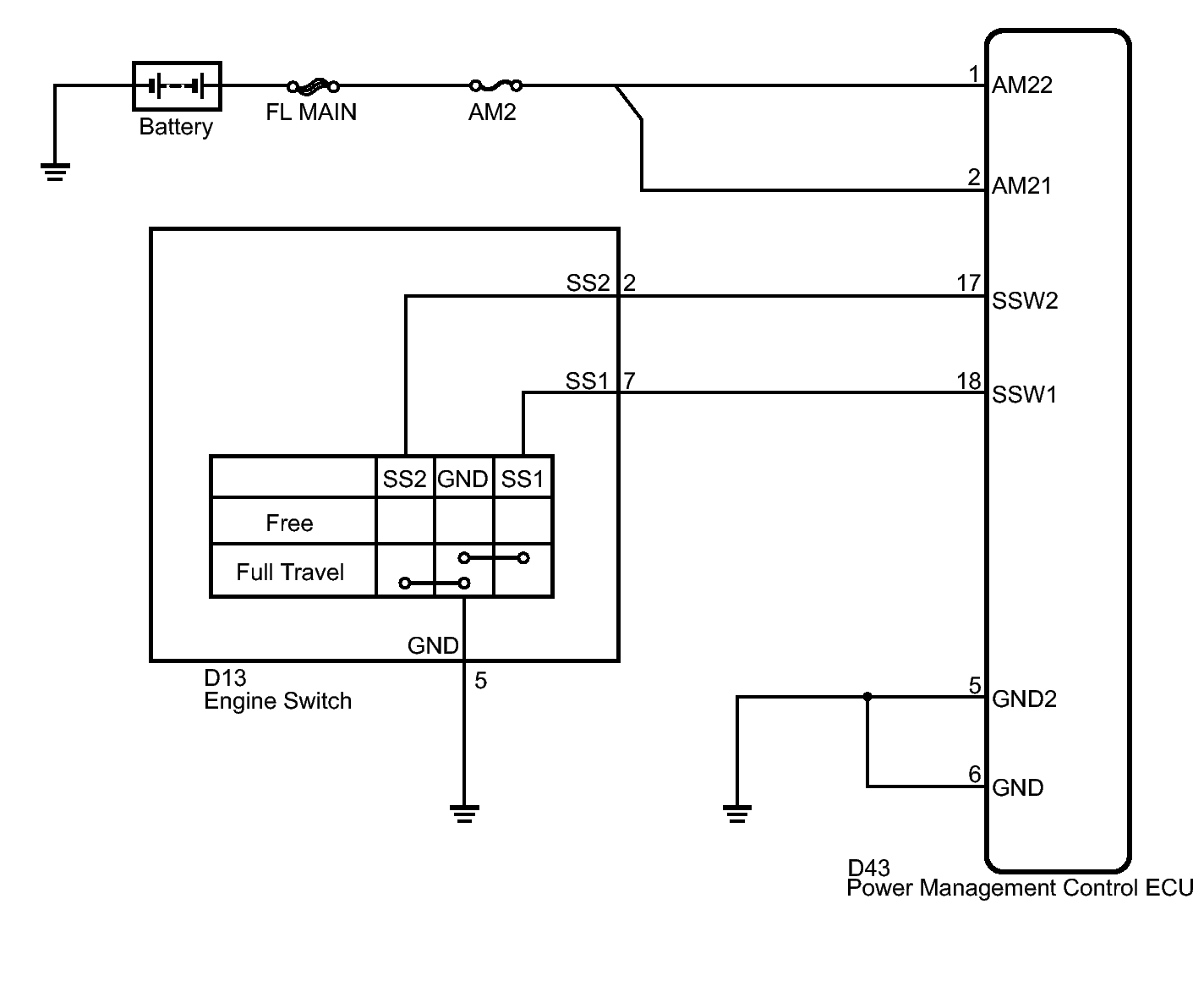

Fig 1: Identifying Power Management Control ECU Circuit Diagram
GTY250938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
