Audio System (H/B): Notes

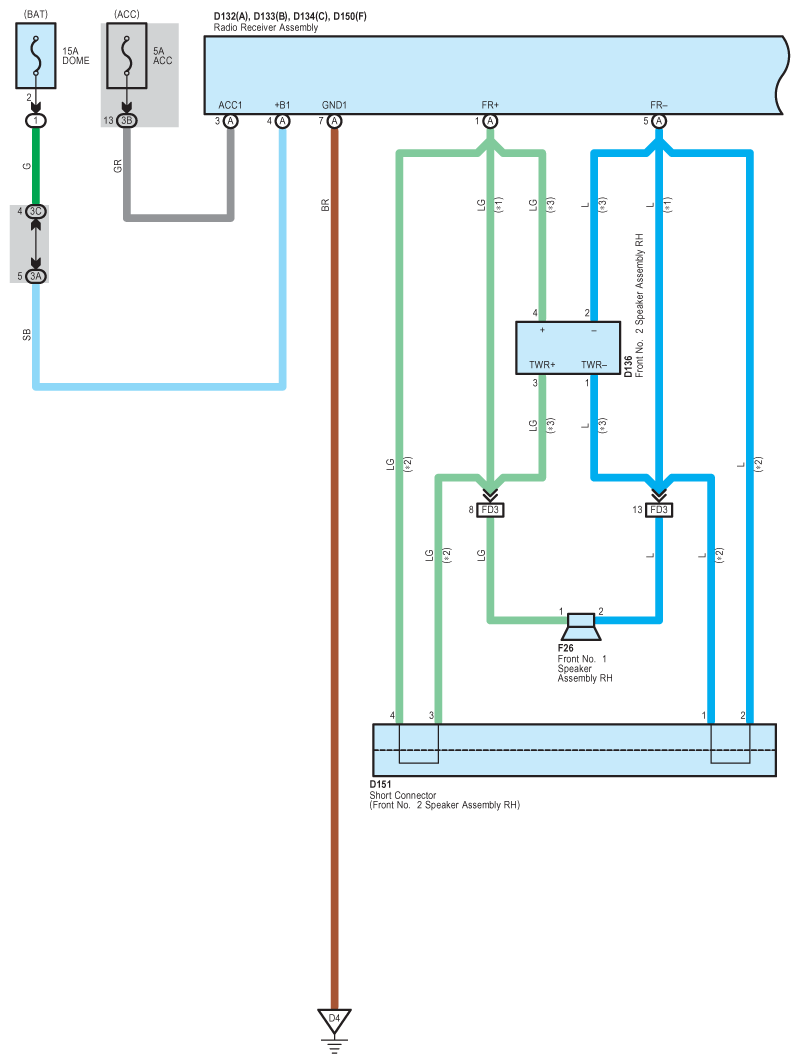

Fig 1: Audio System (H/B) - Circuit Diagram (1 Of 5)
G08949351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

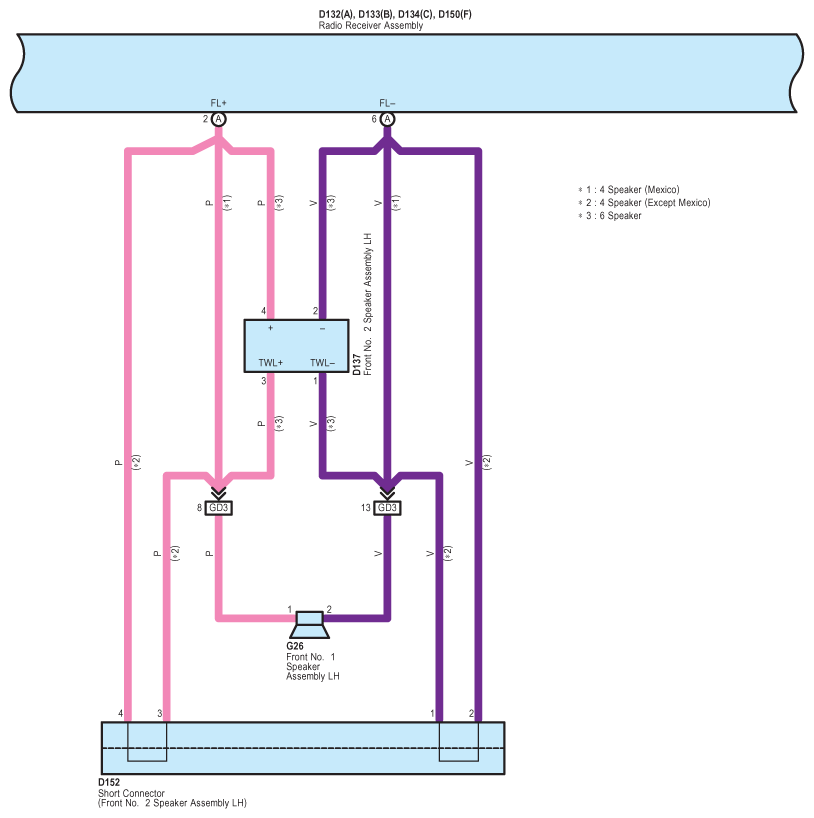

Fig 2: Audio System (H/B) - Circuit Diagram (2 Of 5)
G08949352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

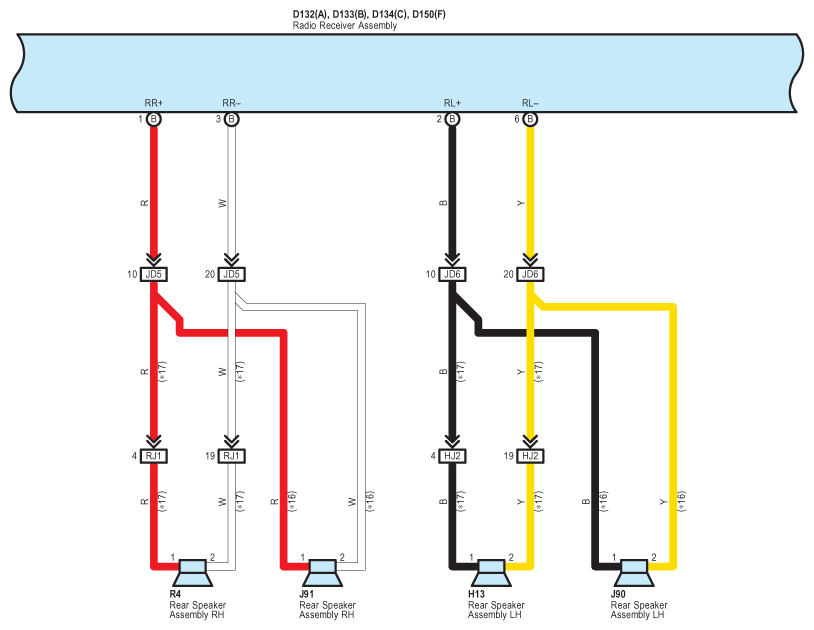

Fig 3: Audio System (H/B) - Circuit Diagram (3 Of 5)
G08949353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

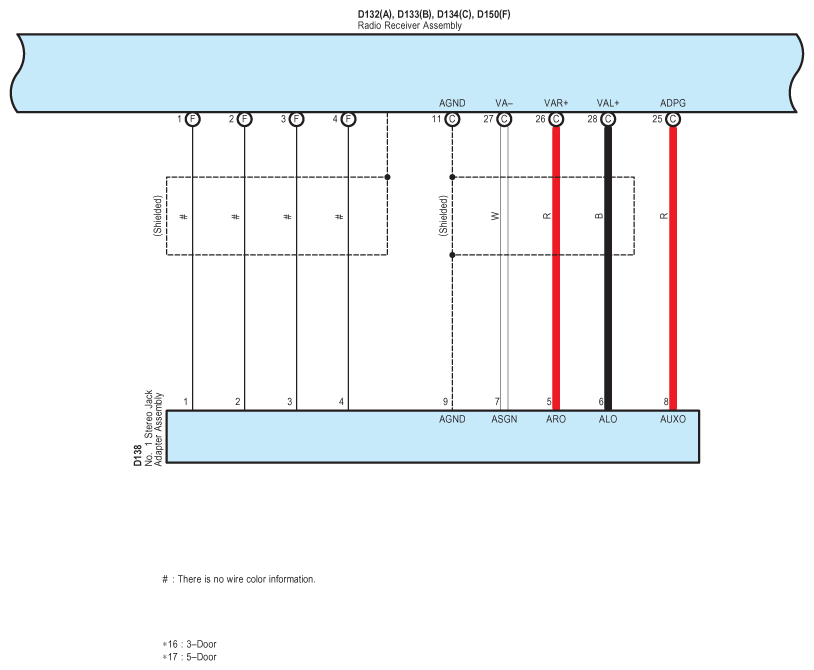

Fig 4: Audio System (H/B) - Circuit Diagram (4 Of 5)
G08949354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

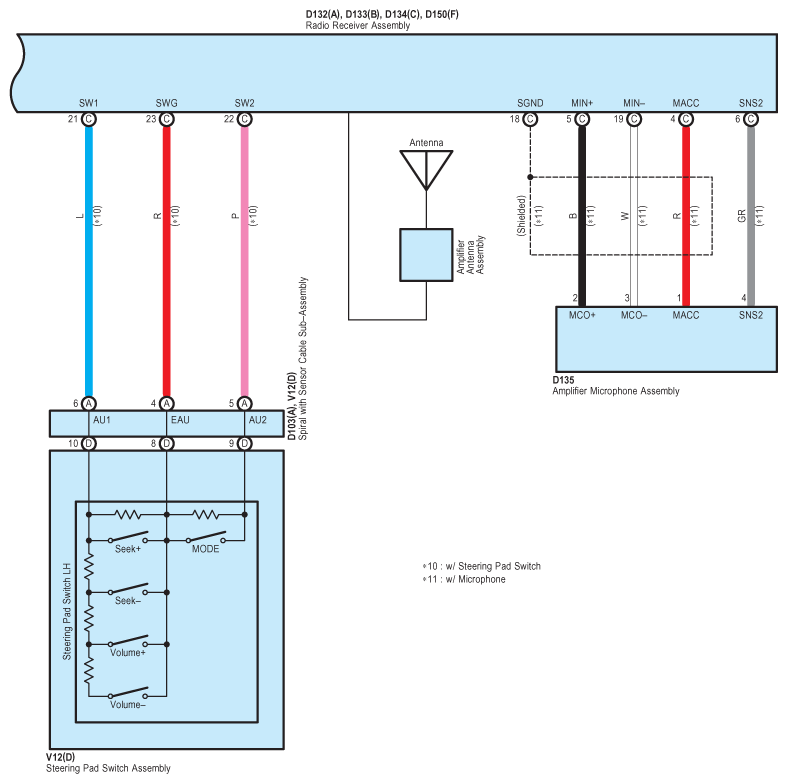

Fig 5: Audio System (H/B) - Circuit Diagram (5 Of 5)
G08949355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
