Combination Meter (H/B): Notes

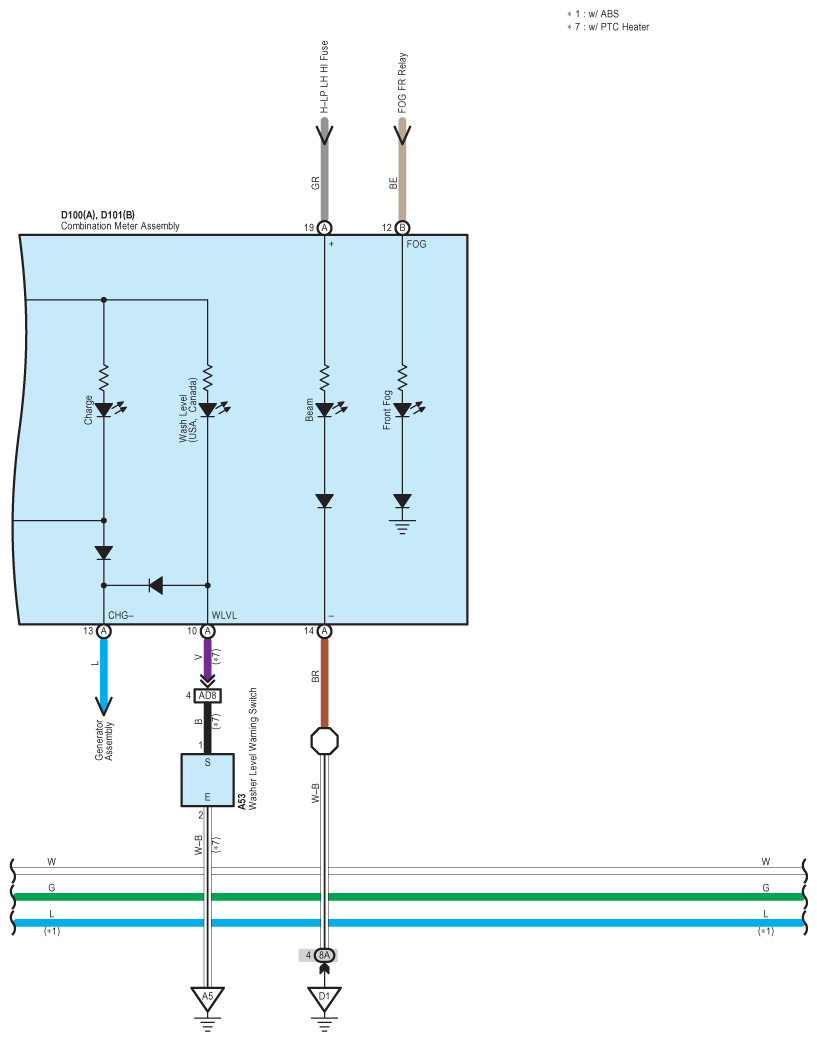

Fig 1: Combination Meter (H/B) - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

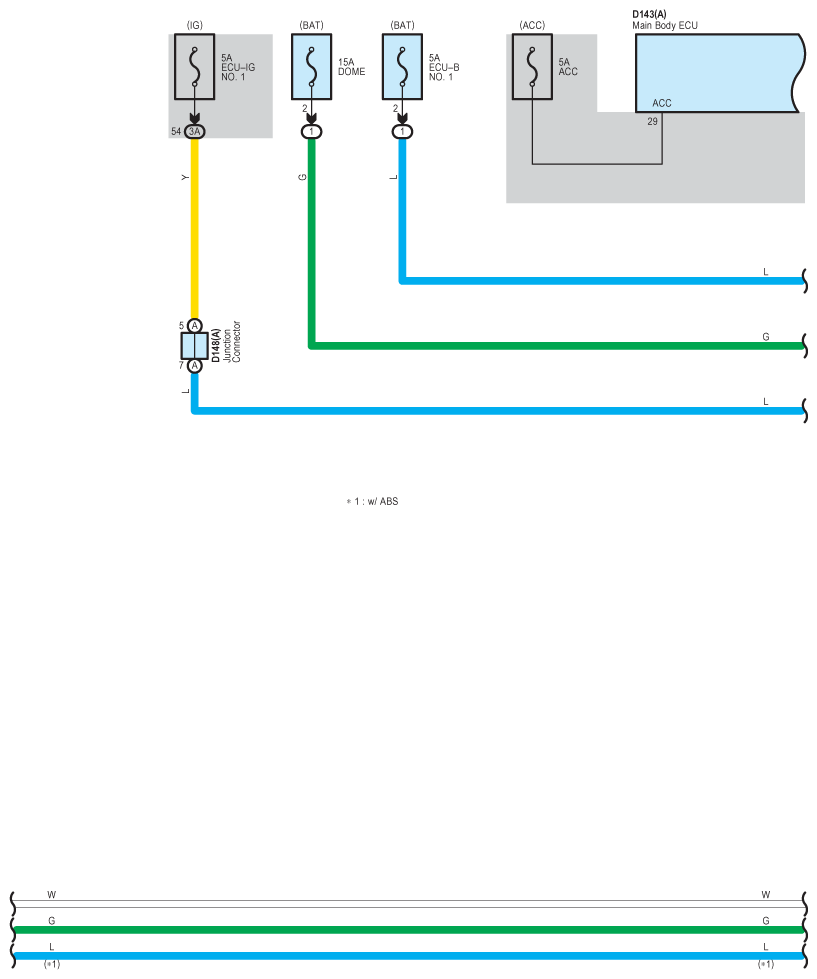

Fig 2: Combination Meter (H/B) - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

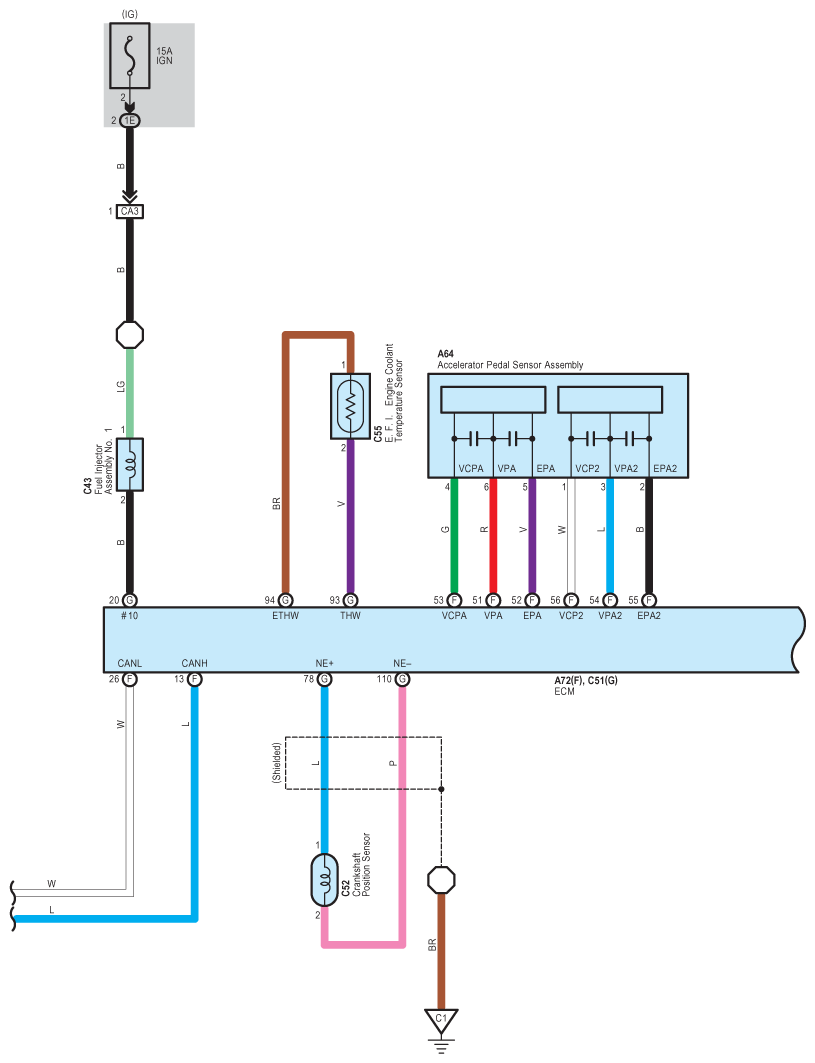

Fig 3: Combination Meter (H/B) - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

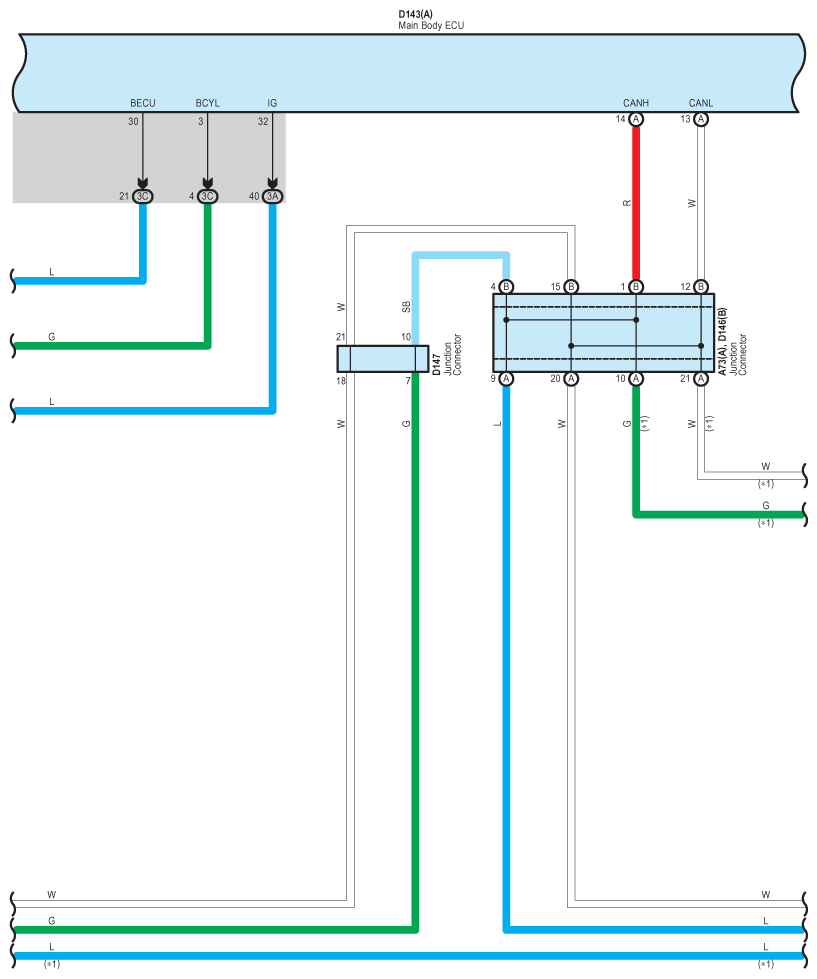

Fig 4: Combination Meter (H/B) - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

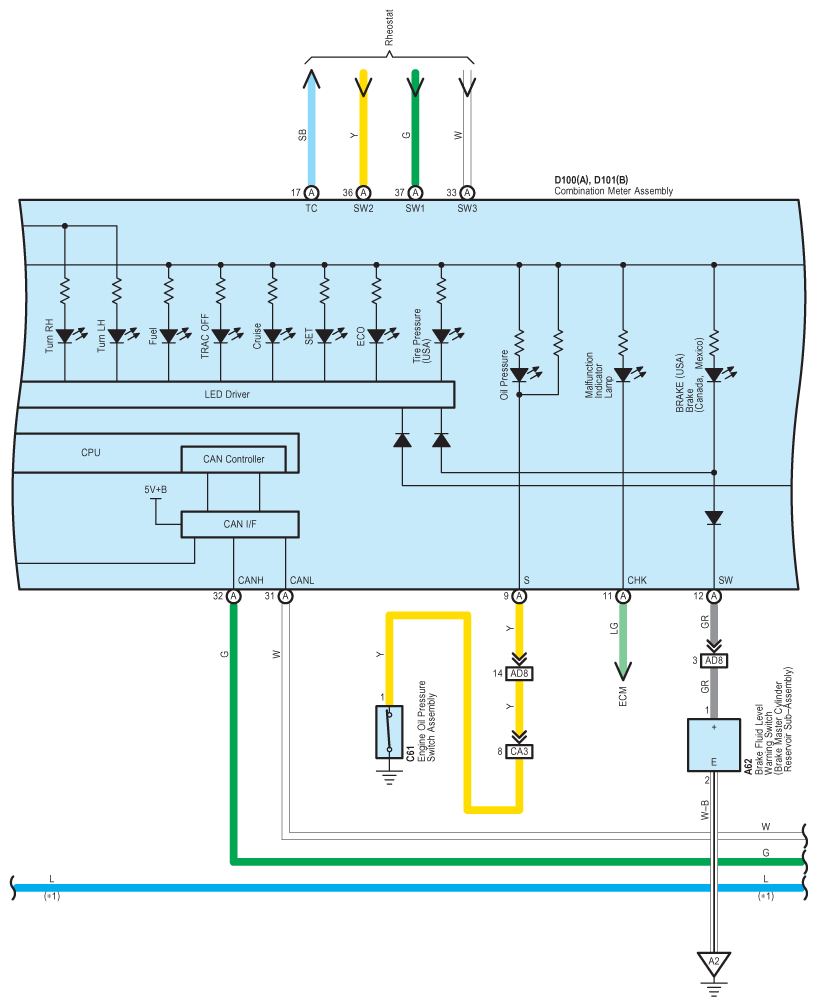

Fig 5: Combination Meter (H/B) - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

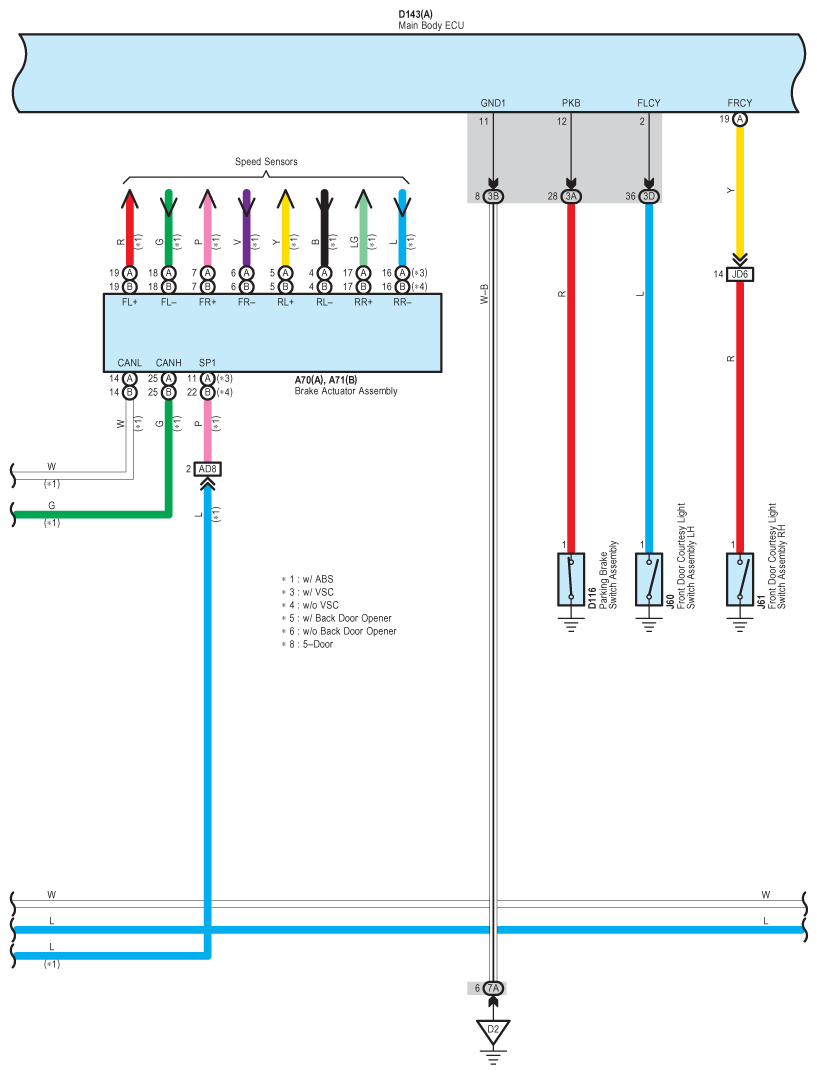

Fig 6: Combination Meter (H/B) - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

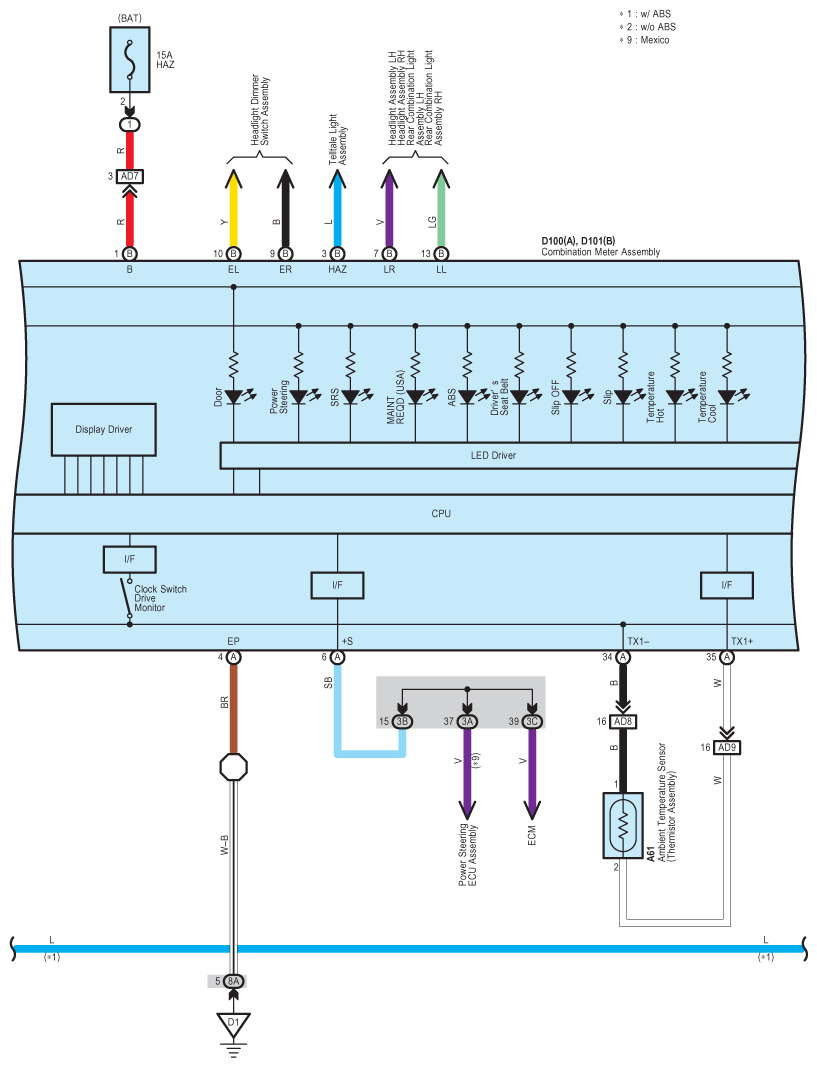

Fig 7: Combination Meter (H/B) - Circuit Diagram (7 Of 10)

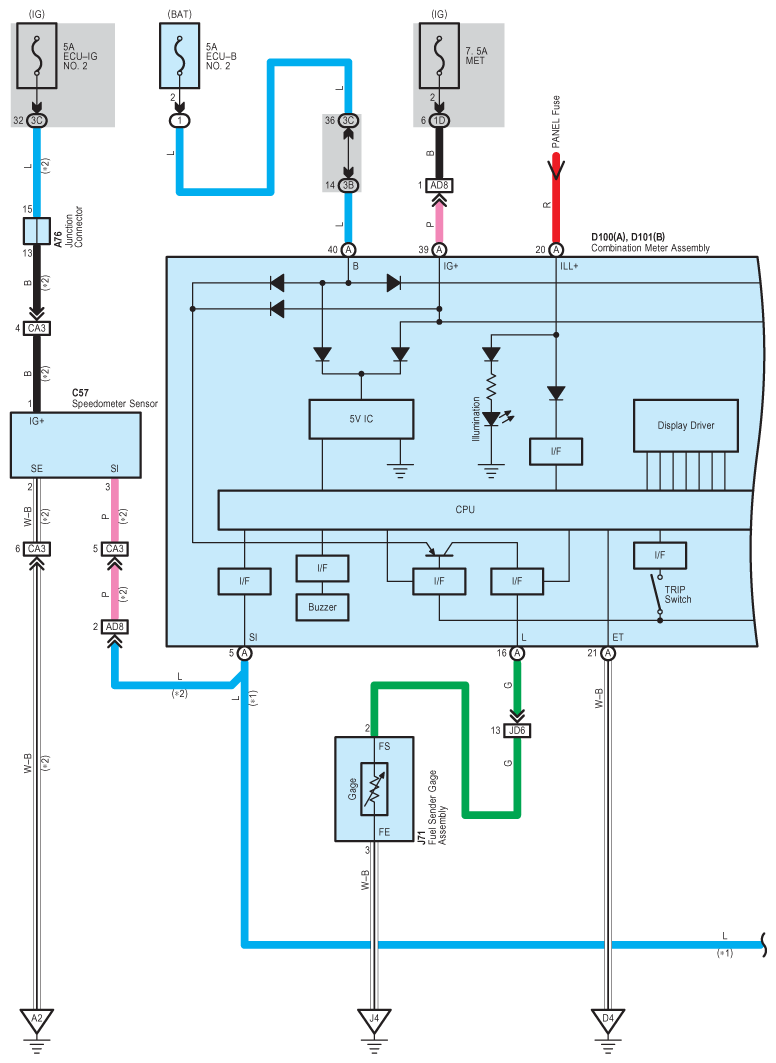

Fig 8: Combination Meter (H/B) - Circuit Diagram (8 Of 10)

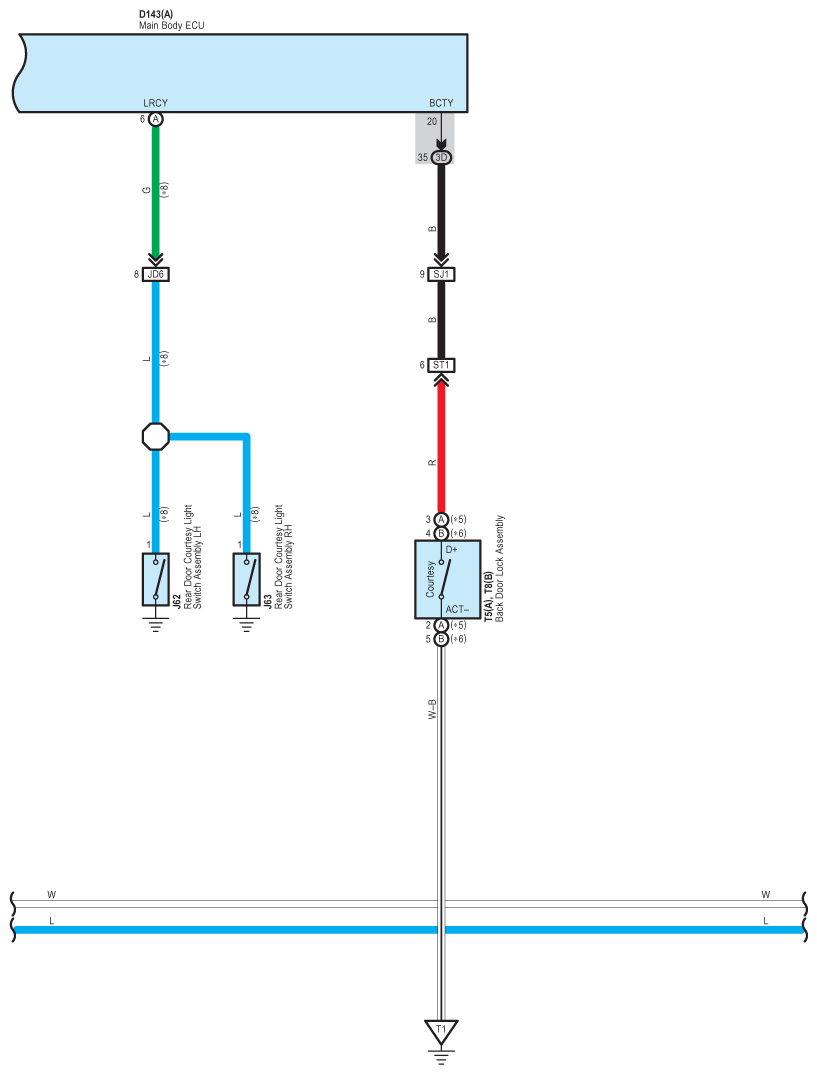

Fig 9: Combination Meter (H/B) - Circuit Diagram (9 Of 10)

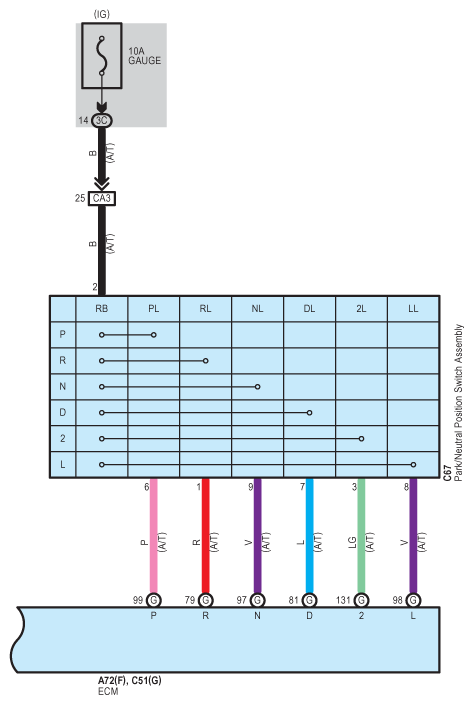

Fig 10: Combination Meter (H/B) - Circuit Diagram (10 Of 10)
