Data Link Connector 3 (S/D): Notes

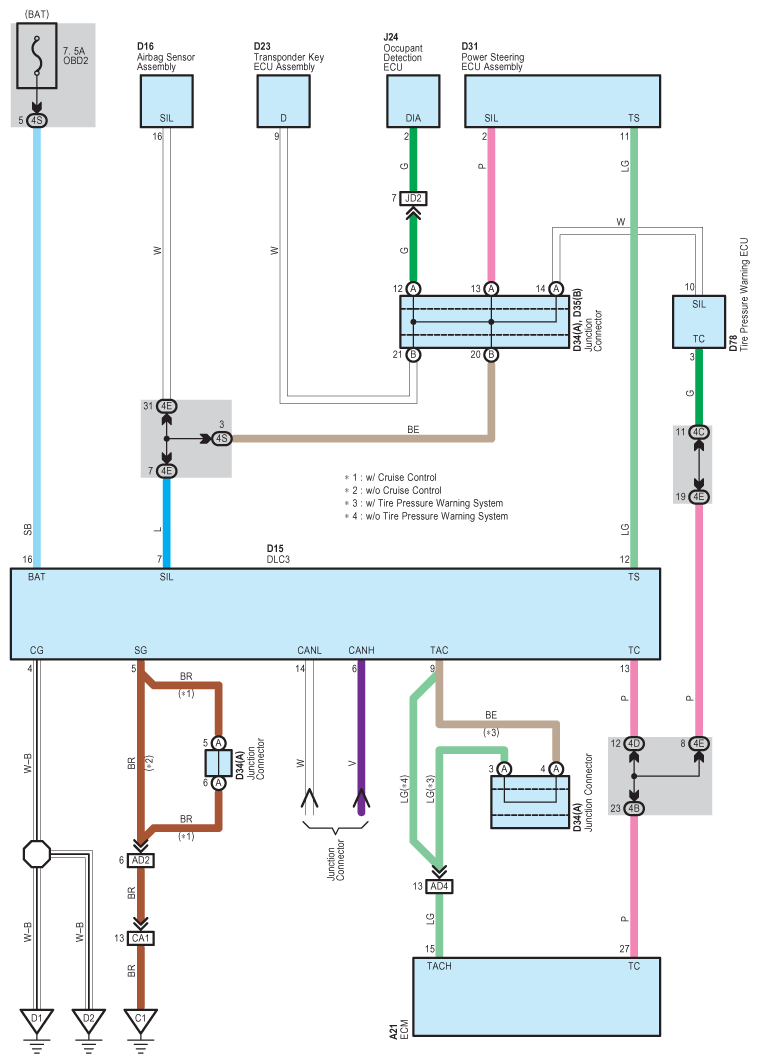

Fig 1: Data Link Connector 3 (S/D) - Circuit Diagram
G08949403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
