Horn (S/D): Notes

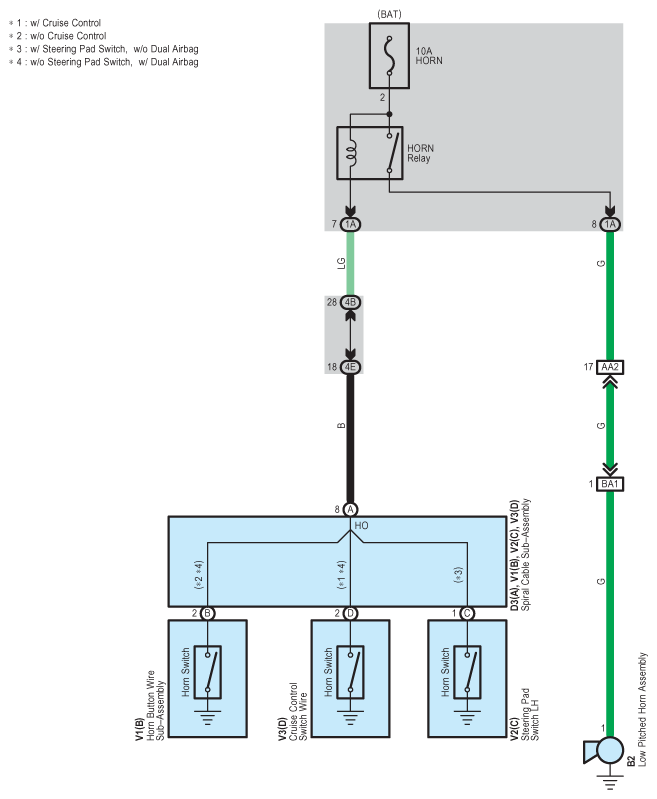

Fig 1: Horn (S/D) - Circuit Diagram
G08949468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
