Starting (H/B): Notes

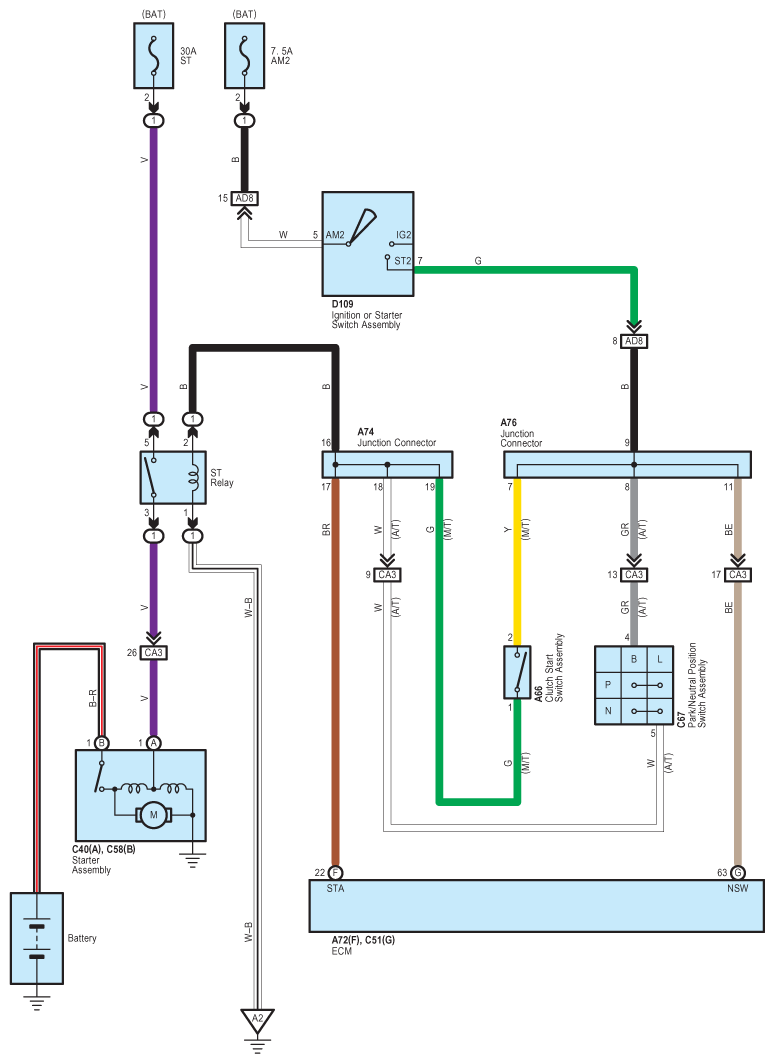

Fig 1: Starting (H/B) - Circuit Diagram
G08949243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
