MASS AIR FLOW METER (for Hatchback): Components: Illustration

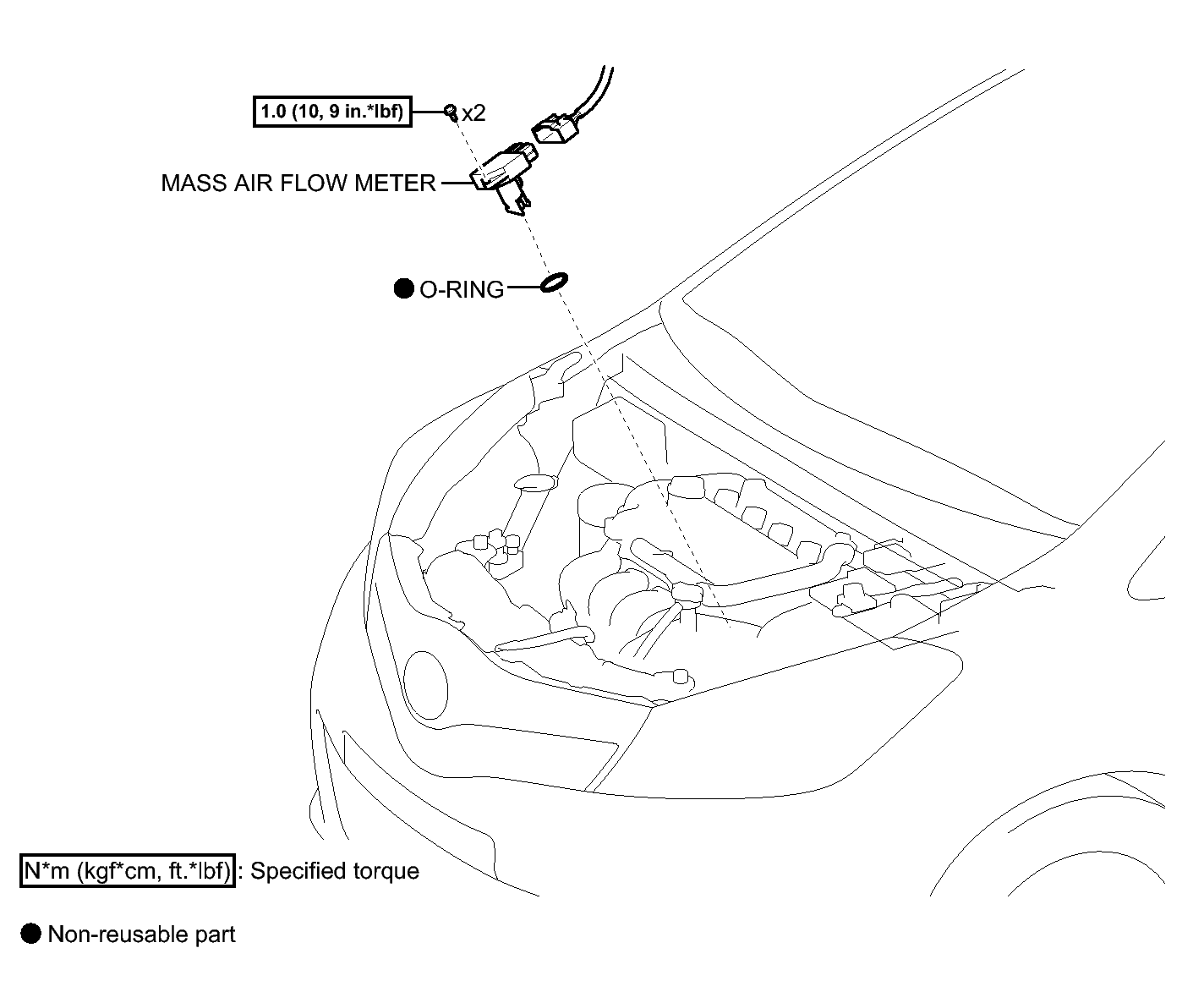

Fig 1: Identifying Mass Air Flow Meter (For Hatchback) Replacement Components With Torque Specifications
GTY326744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
