Vehicle Identification And Serial Numbers
- VEHICLE IDENTIFICATION NUMBER

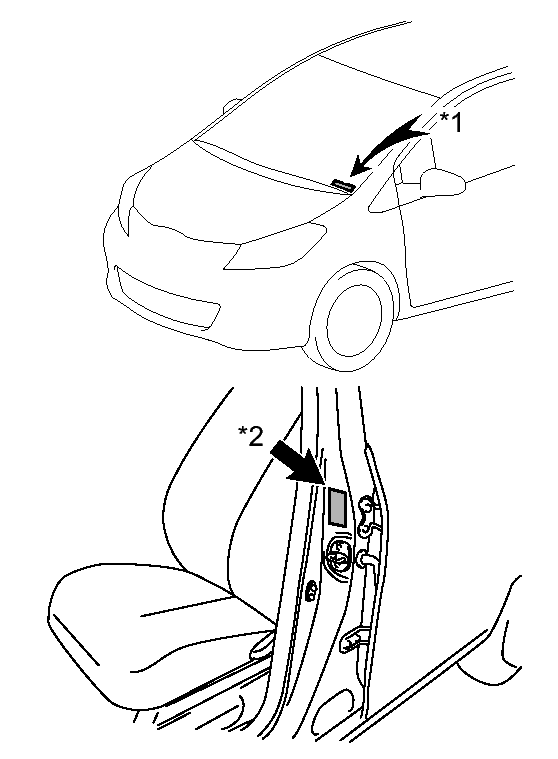

- The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *1 |
Vehicle Identification Number |
| *2 |
Certification Label |
- ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

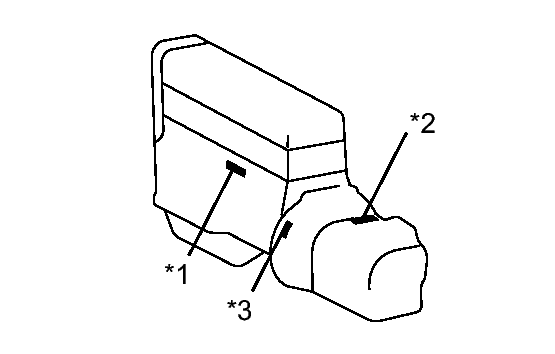

- The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *1 |
Engine Serial Number |
| *2 |
Transaxle Serial Number (C50) |
| *3 |
Transaxle Serial Number (U340E) |
