OCCUPANT CLASSIFICATION ECU (for Hatchback): Installation: Installation

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Refer to PRECAUTION .

INSTALL OCCUPANT DETECTION ECU
1. Engage the claw to install the occupant detection ECU.

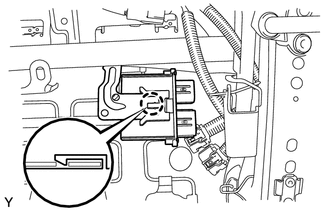

  Fig 1: Installing The Occupant Detection ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.
2. Connect the 2 connectors.
  NOTE:
  When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.
INSTALL FRONT SEAT ASSEMBLY RH
Refer to REMOVAL
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to INITIALIZATION
