KNOCK SENSOR (for Hatchback): Removal: Removal

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL

  2. REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.

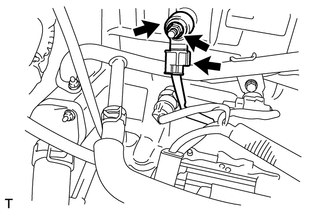

      Fig 1: Identifying Knock Sensor Connector And Nut
      GTY331651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and knock sensor.
