System Diagram

FUEL FLOW DIAGRAM

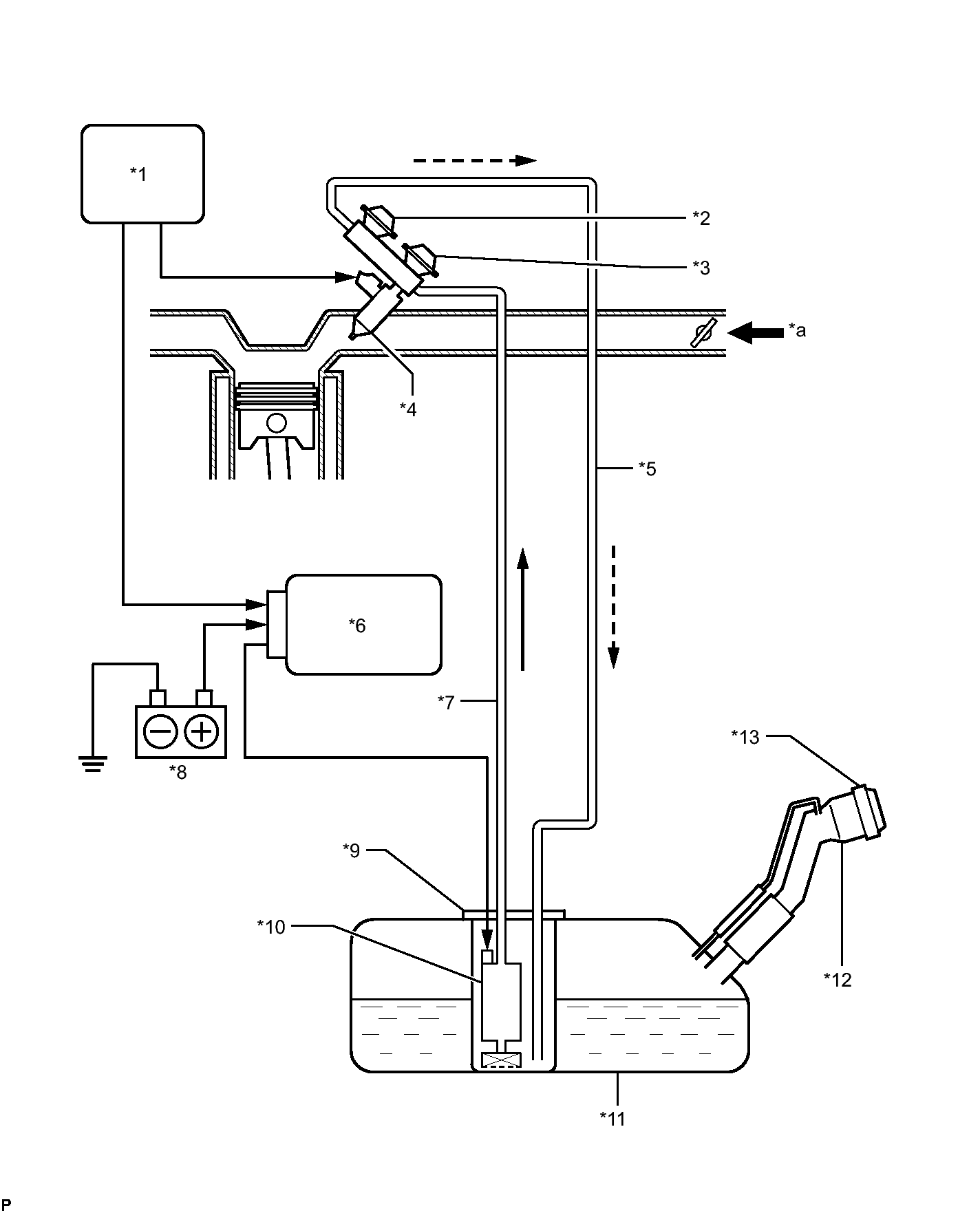

Fig 1: Identifying Fuel Flow System Diagram

GTY371601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	ECM	*2	Fuel Pressure Regulator Assembly
*3	Fuel Pressure Pulsation Damper Assembly	*4	Fuel Injector Assembly
*5	Fuel Return Tube Sub-assembly	*6	Fuel Pump Control ECU
*7	Fuel Main Tube	*8	Battery
*9	Fuel Suction Plate Sub-assembly	*10	Fuel Pump
*11	Fuel Tank Sub-assembly	*12	Fuel Filler Pipe
*13	Fuel Tank Cap	-	-
*a	Intake Air	-	-

ELECTRICAL CONTROL DIAGRAM

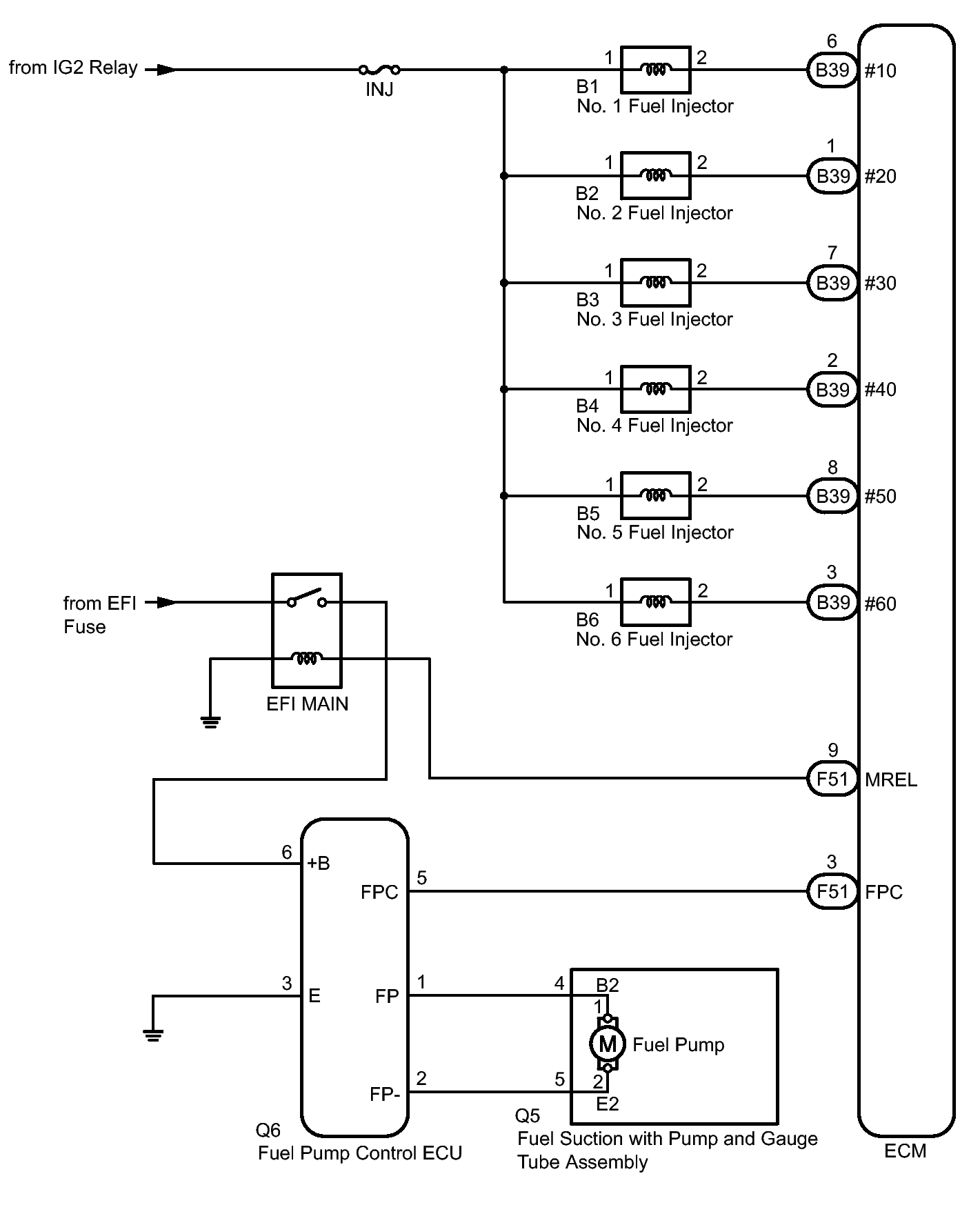

Fig 2: Identifying Fuel Electrical Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
