Section 9 (4WD Control System / Transfer Case Control System (Inspection))
>>
4WD Control System / Transfer Case Control System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram
WARNING:
This page is about a different variant/trim than selected.

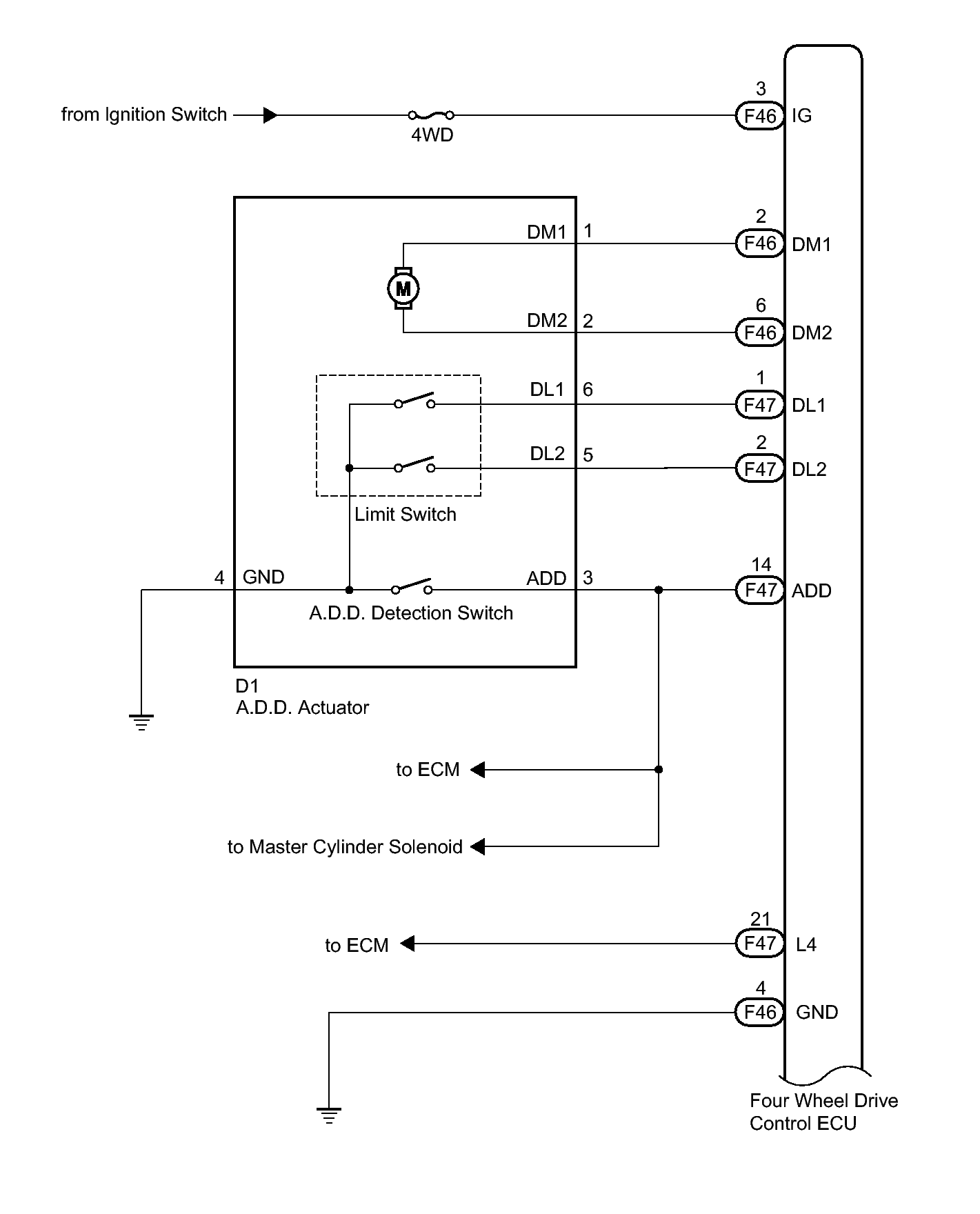

Fig 1: Identifying Touch Select 2-4 & High-Low System Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

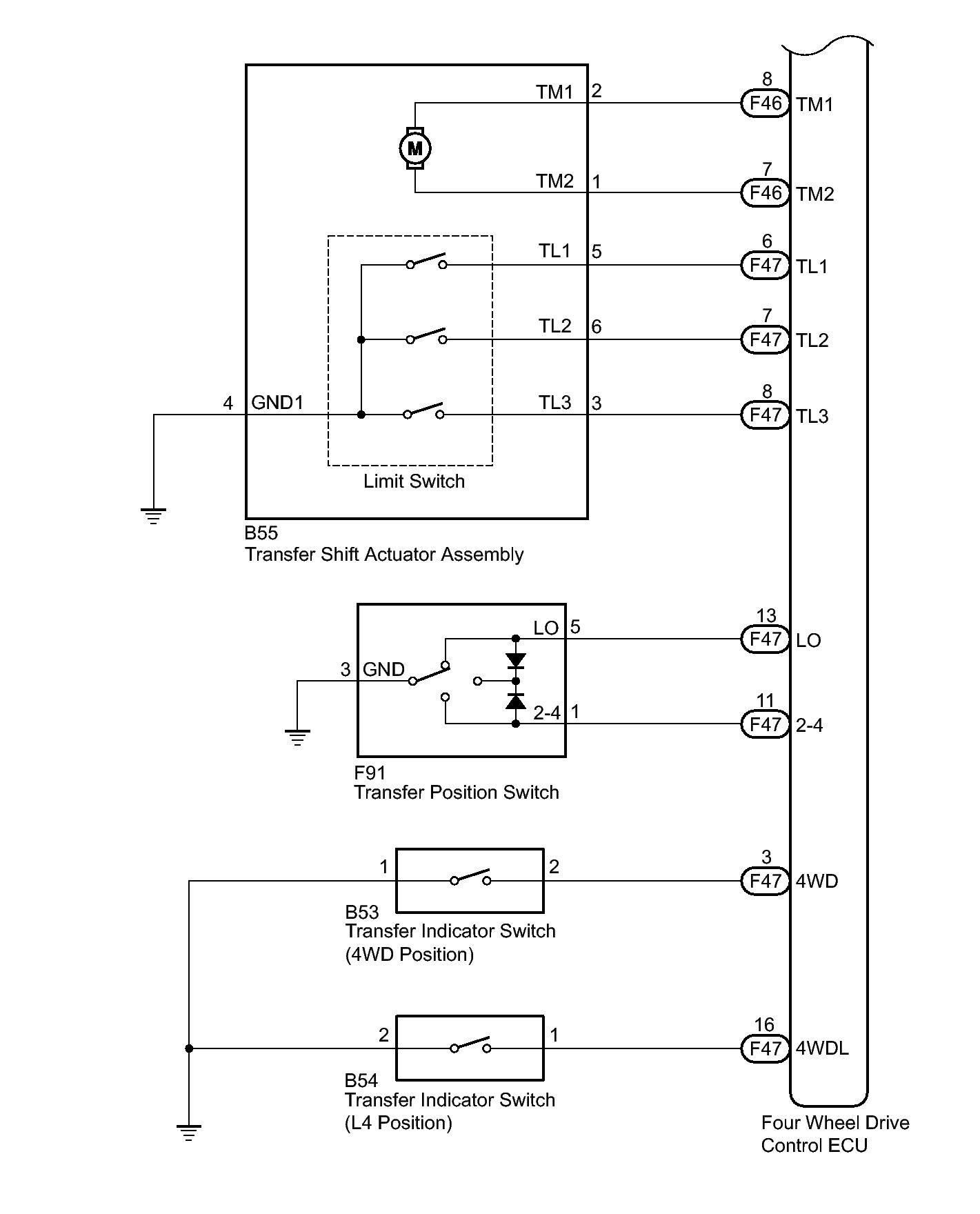

Fig 2: Identifying Touch Select 2-4 & High-Low System Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

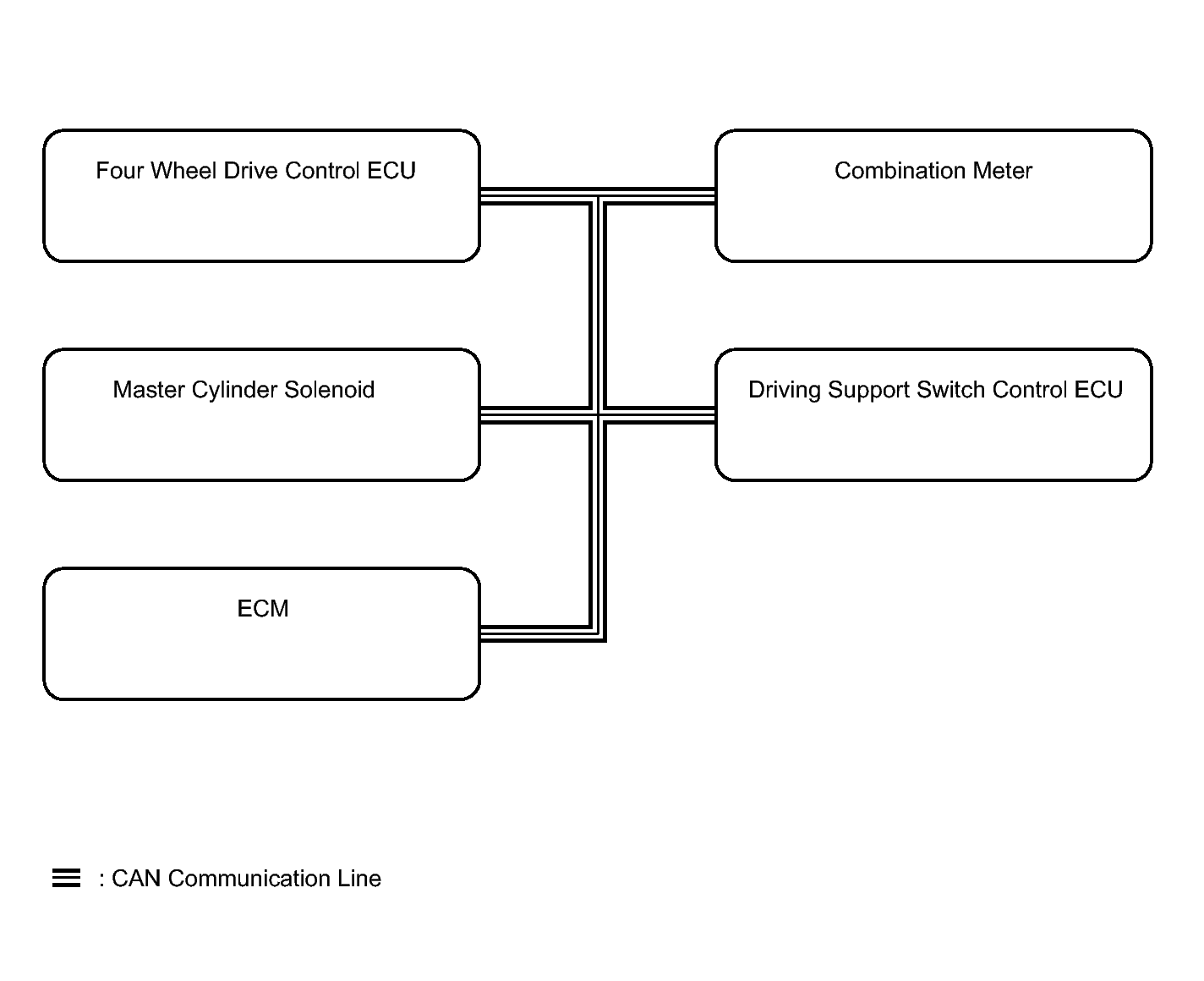

Fig 3: Identifying Touch Select 2-4 & High-Low System - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
