Navigation Receiver Assembly Communication Stop Mode: Procedure

1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and branch wire.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

NEXT: Go to next step

1. Disconnect the G20 navigation receiver connector.

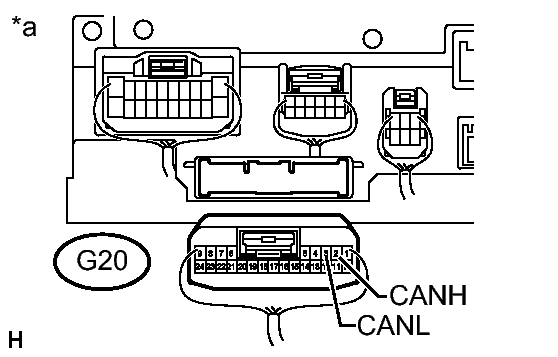

   Fig 1: Navigation Receiver Assembly Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   G20-2 (CANH) - G20-3 (CANL)	Ignition switch off	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Navigation Receiver Assembly)

NG → REPAIR OR REPLACE NAVIGATION RECEIVER ASSEMBLY BRANCH WIRE OR CONNECTOR (CANH, CANL)

OK: Go to next step

1. Connect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

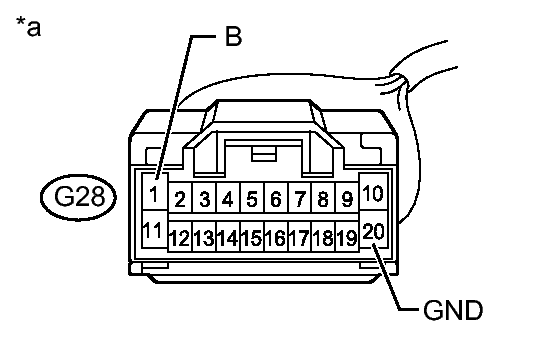

   Fig 2: Navigation Receiver Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the G28 navigation receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G28-20 (GND) - Body ground	Always	Below 1 Ω

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   G28-1 (B) - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Navigation Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
