System Diagram

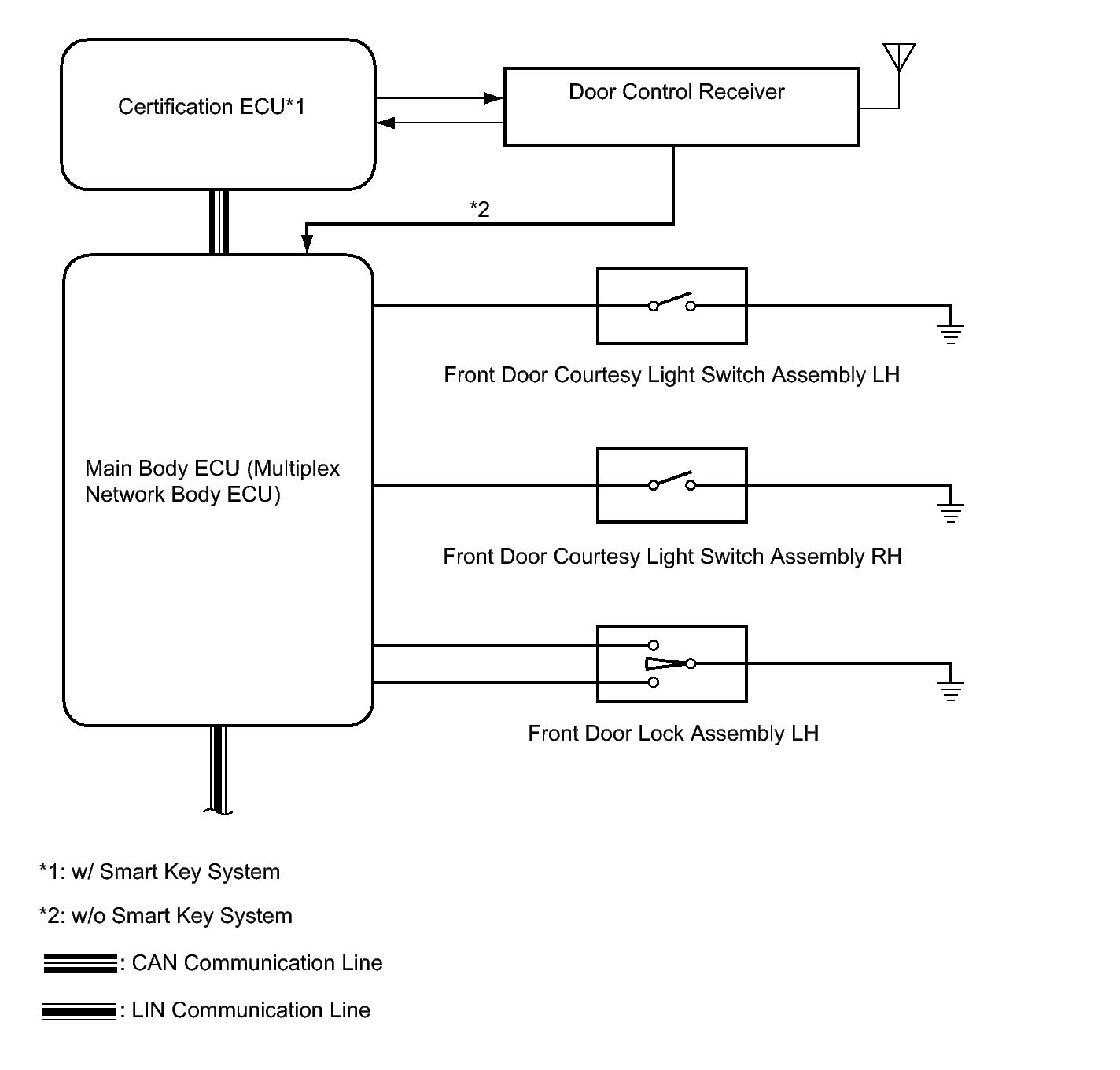

Fig 1: Identifying Power Window Control System Diagram (1 Of 3)
GTY211838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

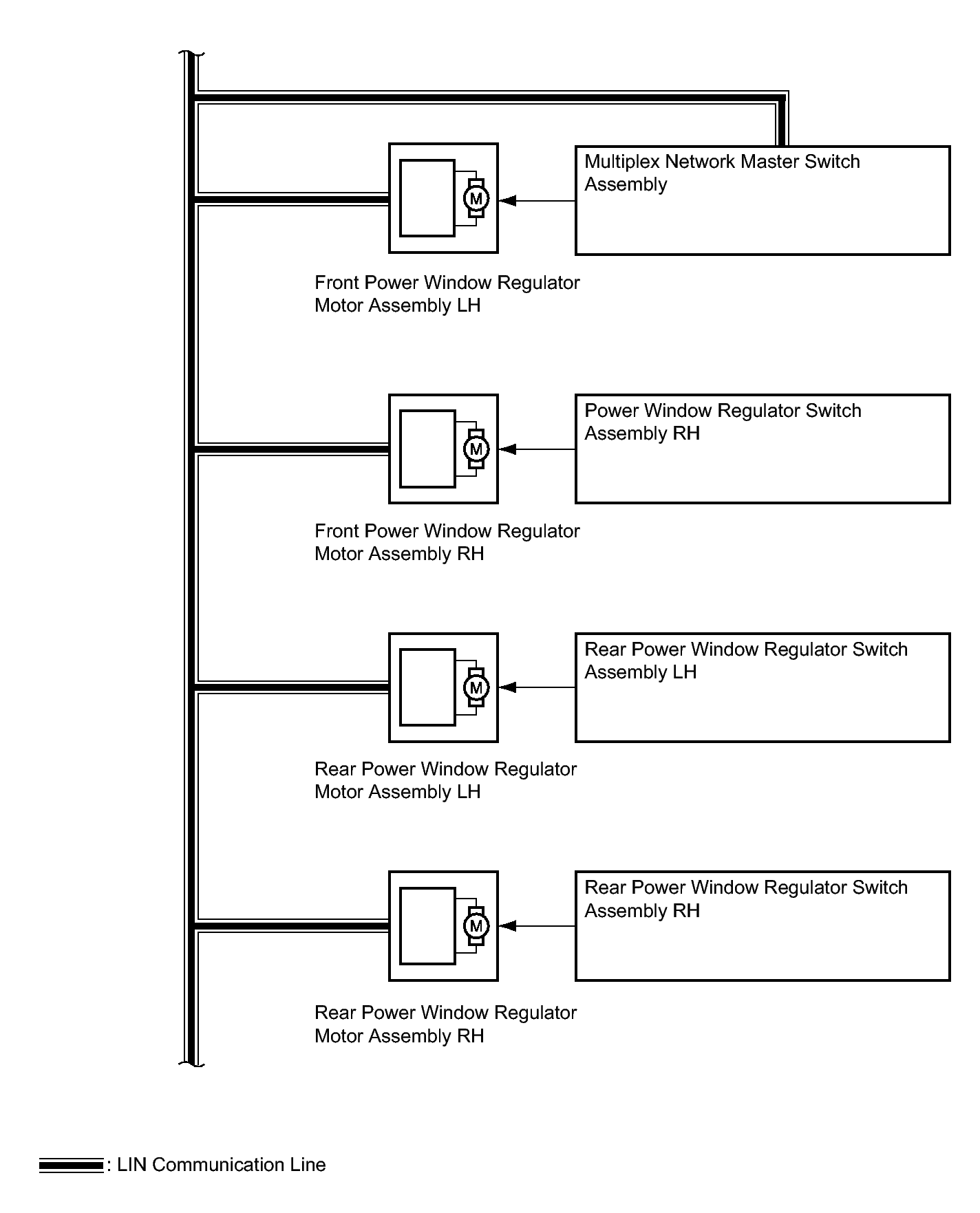

Fig 2: Identifying Power Window Control System Diagram (2 Of 3)
GTY221832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

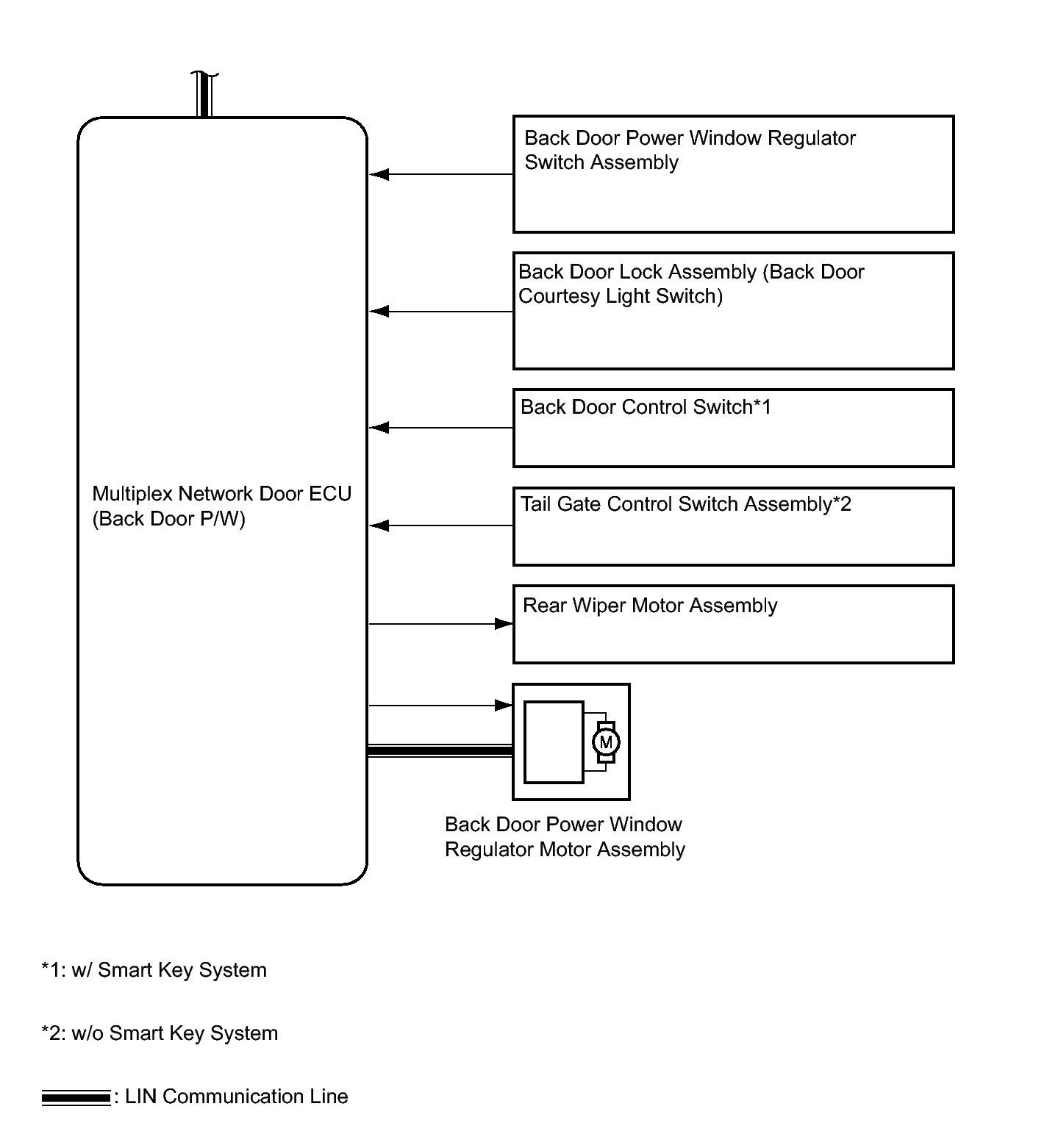

Fig 3: Identifying Power Window Control System Diagram (3 Of 3)
GTY217150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Multiplex network master switch assembly
  • Front power window regulator motor assembly LH
 Power window auto up and down signal LIN
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH
 Power window remote up and down signal LIN
Main body ECU (Multiplex network body ECU)
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH
 Power window operation permission signal LIN
Main body ECU (Multiplex network body ECU) Multiplex network door ECU (Back door P/W) Back door power window operation permission signal LIN
Multiplex network door ECU (Back door P/W) Main body ECU (Multiplex network body ECU) Power window position signal LIN
Certification ECU* Main body ECU (Multiplex network body ECU) Wireless power window up and down signal CAN
