Power Window: Notes

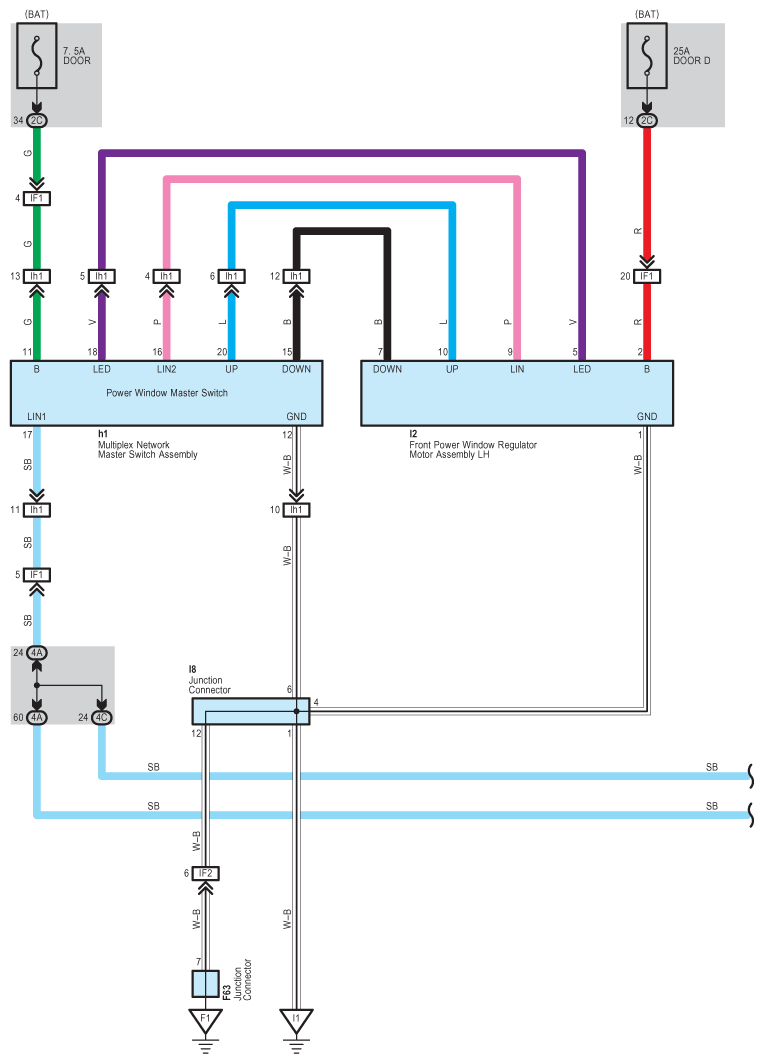

Fig 1: Power Window - Circuit Diagram (1 Of 9)

G08950362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

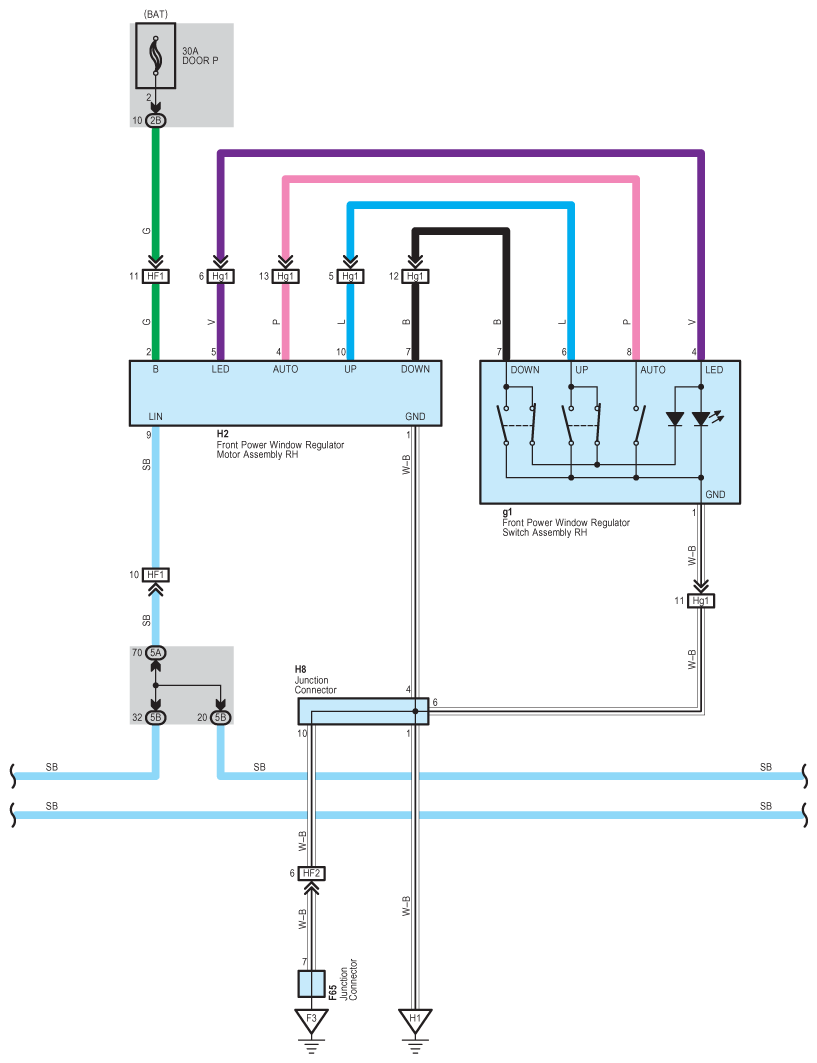

Fig 2: Power Window - Circuit Diagram (2 Of 9)

G08950363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

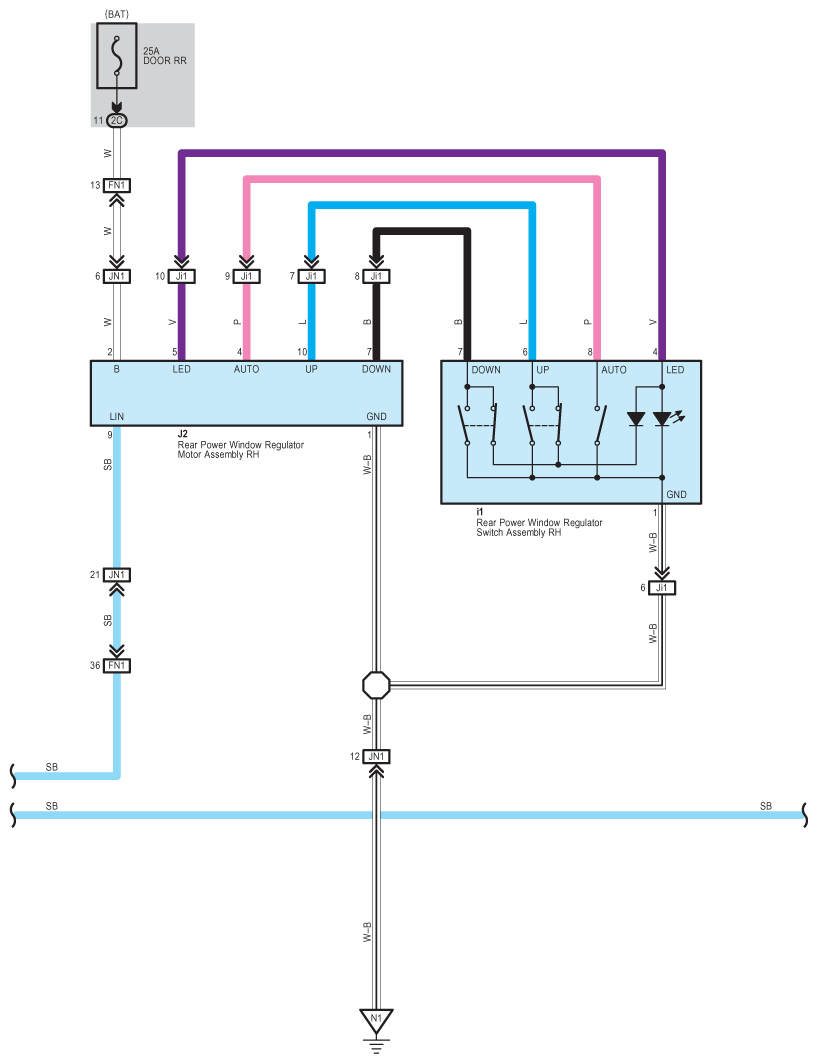

Fig 3: Power Window - Circuit Diagram (3 Of 9)

G08950364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

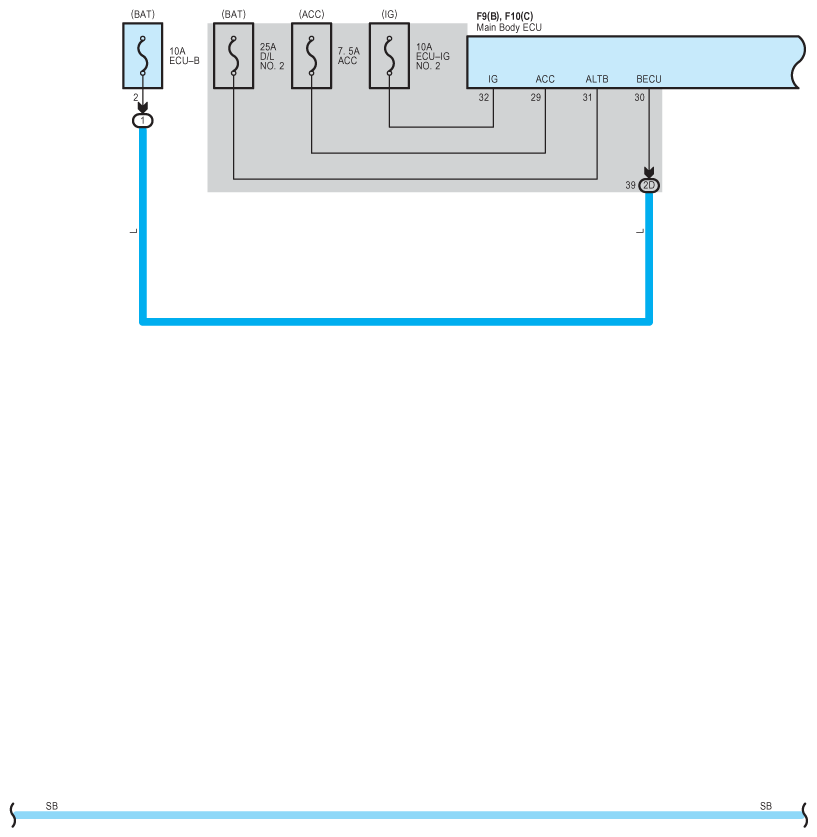

Fig 4: Power Window - Circuit Diagram (4 Of 9)

G08950365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

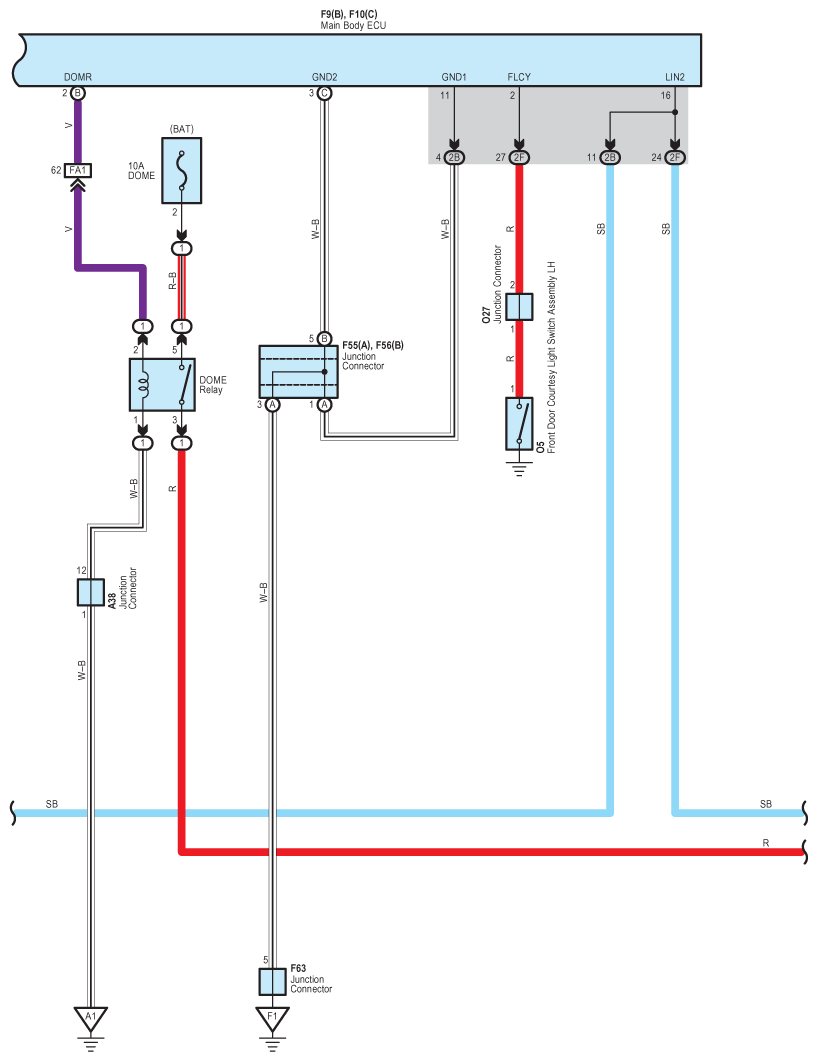

Fig 5: Power Window - Circuit Diagram (5 Of 9)

G08950366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Power Window - Circuit Diagram (6 Of 9)

G08950367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

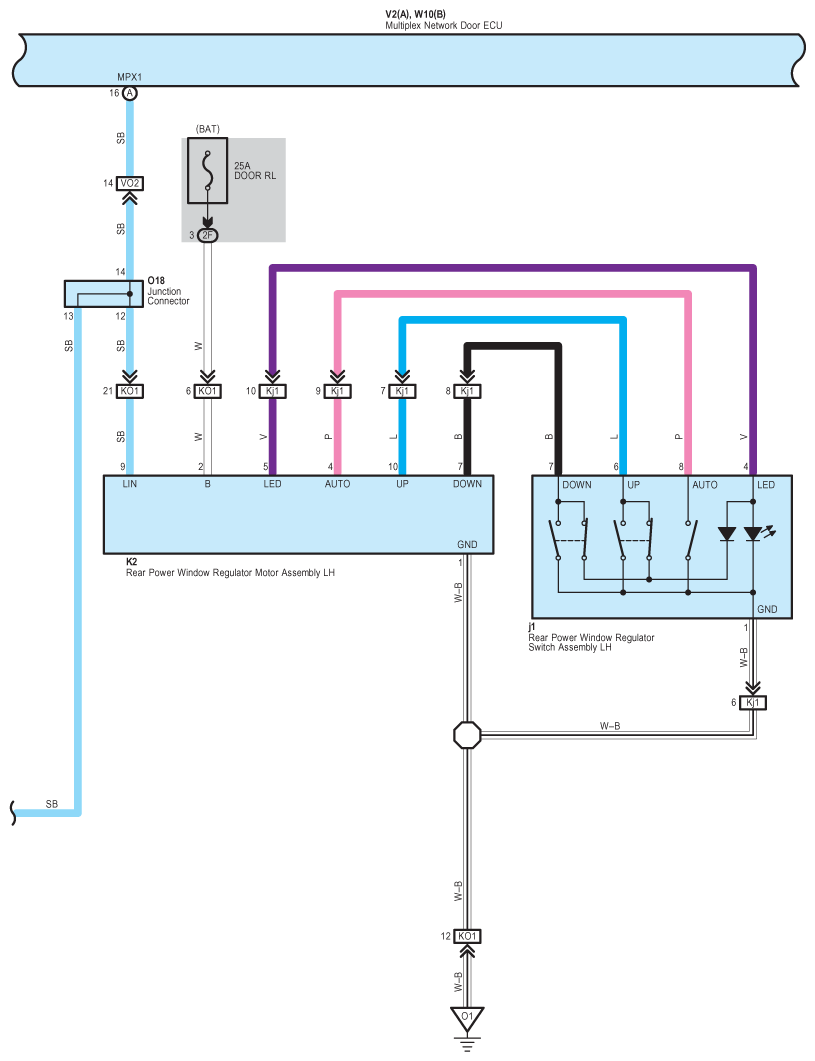

Fig 7: Power Window - Circuit Diagram (7 Of 9)

G08950368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

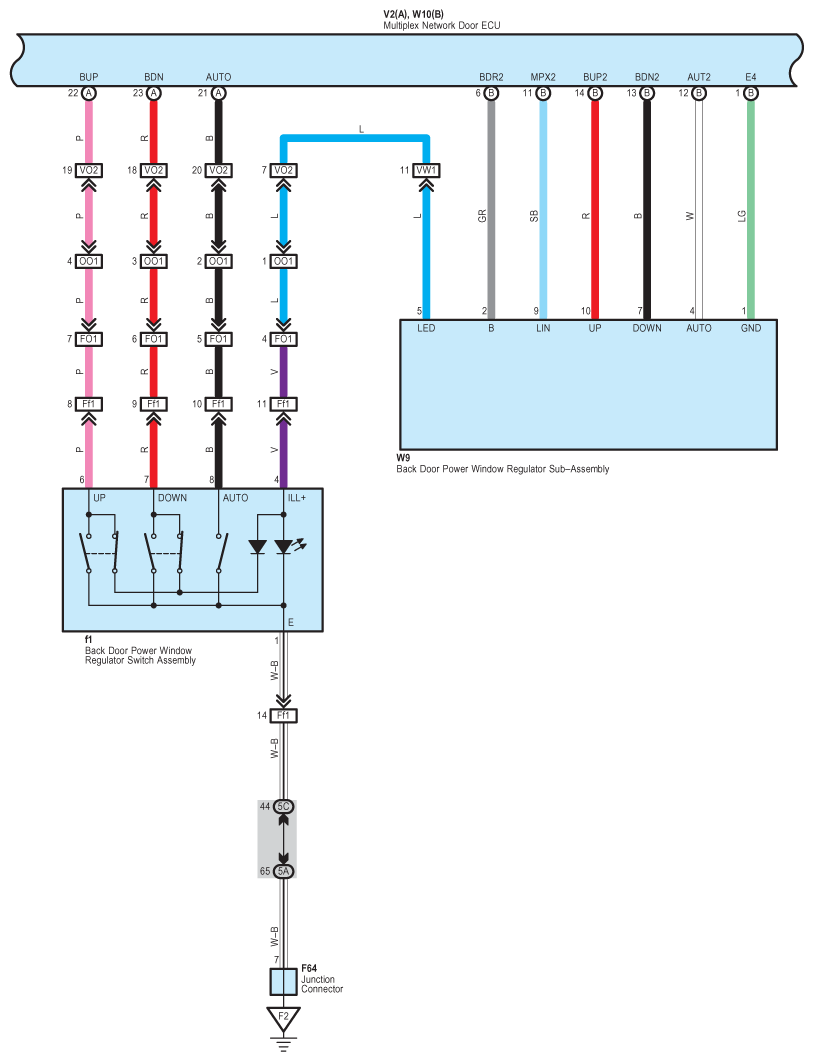

Fig 8: Power Window - Circuit Diagram (8 Of 9)

G08950369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Power Window - Circuit Diagram (9 Of 9)

G08950370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
