Engine Switch: Components: Illustration

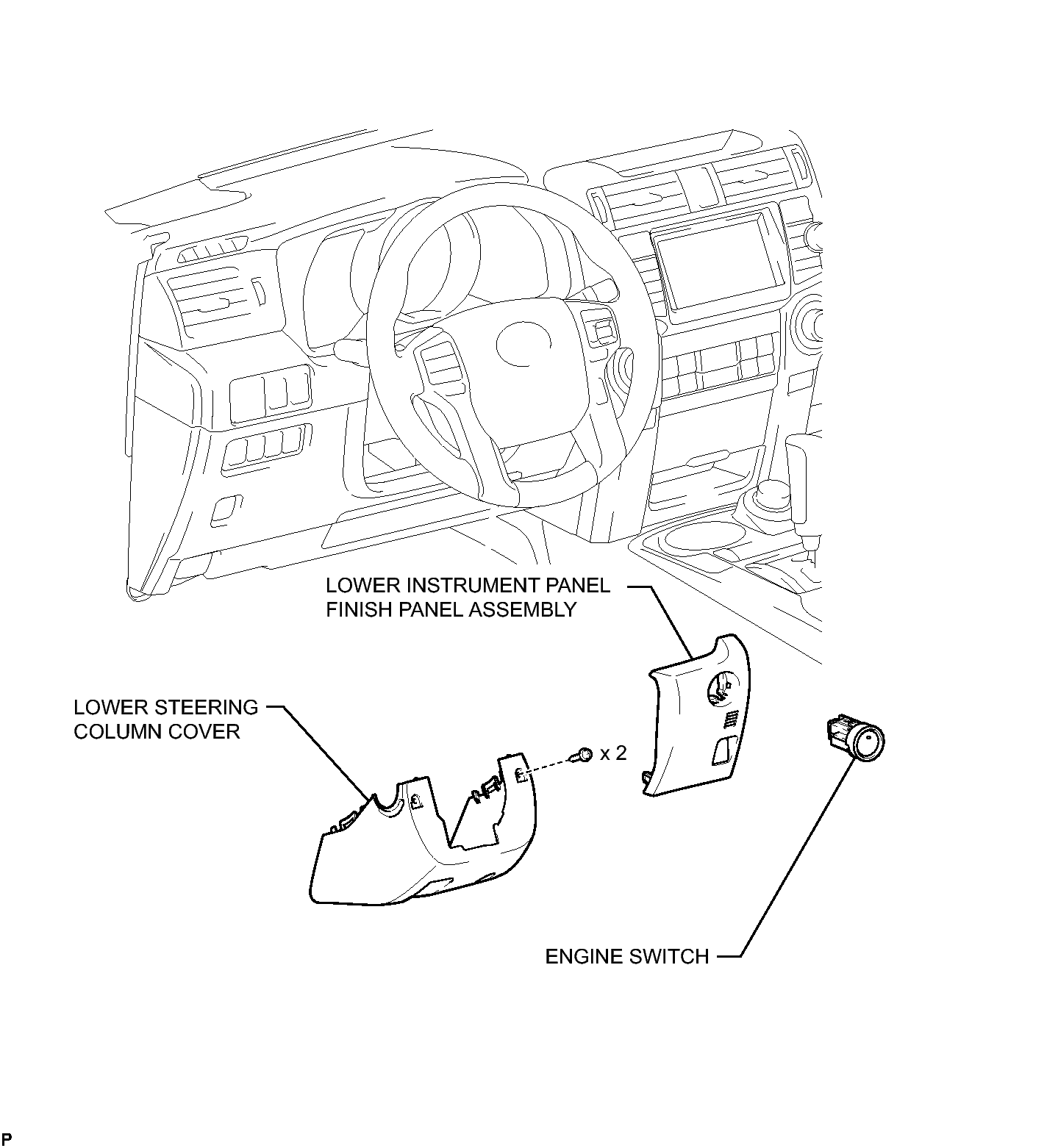

Fig 1: Identifying Engine Switch Replacement Components
GTY213372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
