Heated Oxygen Sensor: Components: Illustration

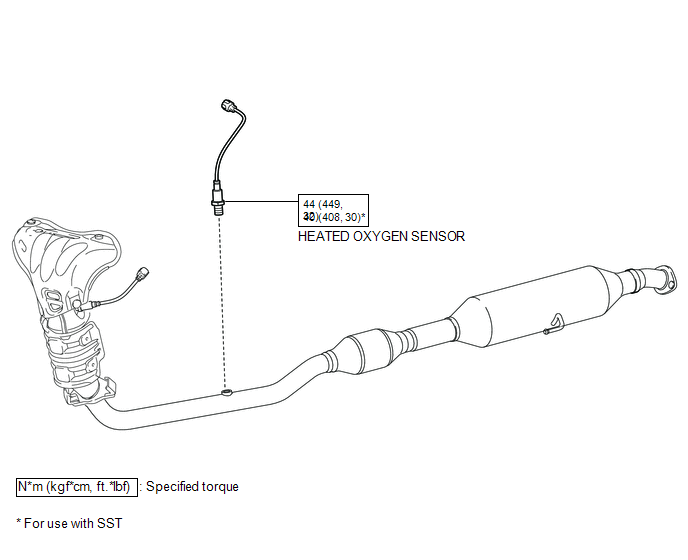

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY384380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
