Smart Key System (Entry Function) (Diagnostic Codes & Symptom Tests) (Except Hybrid)
>>
SMART KEY SYSTEM (for Entry Function)
>>
DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit: Wiring Diagram

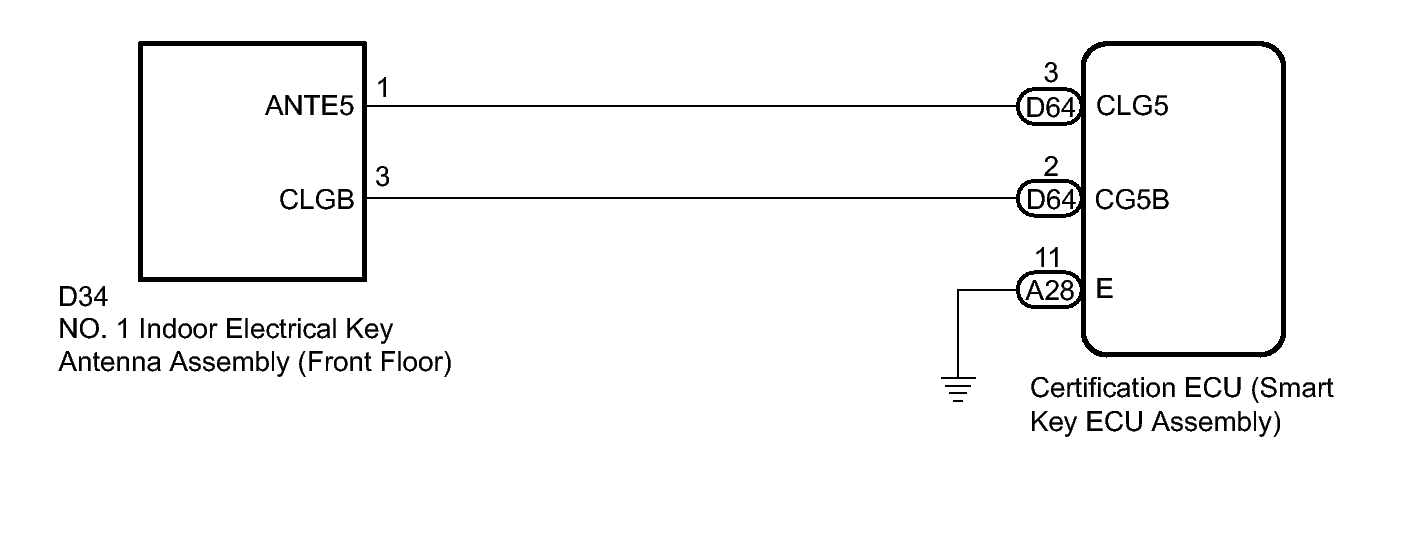

Fig 1: Identifying Certification ECU (smart key ECU assembly) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
