All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Procedure

1. Measure the voltage of the vehicle battery.

   Standard Voltage

   11 to 14 V

   HINT:

   It may be possible to tell whether the vehicle battery is discharged by operating the horn.

   • If the voltage is below 11 V, recharge or replace the vehicle battery before proceeding to the next step.

NEXT: Go to next step

1. Open the driver door using the mechanical key built into the electrical key transmitter sub-assembly.
2. Connect the Techstream and check for DTCs. Refer to DTC CHECK / CLEAR .

   HINT:

   When using the Techstream with the engine switch off, connect the Techstream to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.

   OK

   DTCs are not output.

NG → See step   38

OK: Go to next step

1. When the door control switch on the multiplex network master switch assembly on the driver door is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK .

   OK

   Door locks operate normally.

NG → See step   33

OK: Go to next step

1. Check the following antennas in key diagnostic mode. Refer to OPERATION CHECK .
2. Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.

   HINT:

   If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

   1. Check the electrical key antenna (for driver door):
      Fig 1: Identifying Transmitter Height & Distance From Door Handle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for driver door), check that the wireless door lock buzzer sounds.

   2. Check the electrical key antenna (for front passenger door): (w/ Front Passenger Door Entry Function)
      Fig 2: Identifying Electrical Key Antenna (For Front Passenger Door)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for front passenger door), check that the wireless door lock buzzer sounds.

   3. Check the NO. 1 indoor electrical key antenna assembly (front floor):
      Fig 3: Identifying Smart Key Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   4. Check the NO. 2 indoor electrical key antenna assembly (rear floor):
      Fig 4: Identifying Smart Key Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   5. Check the electrical key antenna (outside luggage):
      Fig 5: Identifying Transmitter Test Location

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

      When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage), check that the wireless door lock buzzer sounds.

      OK

      Wireless door lock buzzer sounds.

      Result

      Result	Proceed to
      Diagnostic mode inspections fail for both channels	A
      Diagnostic mode inspections succeed for both channels	B
      Diagnostic mode inspection succeeds for only one of the channels	C

B → See step   10

C → See step   23

A: Go to next step

1. Check if there is another electrical key transmitter subassembly available that is already registered to the vehicle.

   Result

   Result	Proceed to
   Another registered electrical key transmitter sub-assembly is not available	A
   Another registered electrical key transmitter sub-assembly is available	B

B → See step   7

A: Go to next step

1. Register a new electrical key transmitter sub-assembly. Refer to REGISTRATION .

NEXT: Go to next step

1. Using another registered electrical key transmitter sub-assembly, check if an entry lock/unlock operation can be performed twice in succession.

   OK

   Entry lock/unlock operate normally.

NG → See step   10

OK: Go to next step

1. Check the transmitter battery level of the electrical key transmitter sub-assembly that was checked first.
   1. Press and hold the lock switch of the transmitter for 5 seconds and check the number of times that the transmitter LED illuminates.

      Result

      Result	Proceed to
      Transmitter LED does not illuminate when switch is pressed and held	A
      Transmitter LED illuminates 3 times or more when switch is pressed and held	B
      Transmitter LED illuminates once or twice but not a third time	C

      HINT:

      • The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is being used. The certification ECU (smart key ECU assembly) displays "Yes" for the "Key Low Battery" item of the Data List when this voltage information indicates 2.2 V or less. Refer to DATA LIST / ACTIVE TEST .
      • Even if the transmitter battery is depleted, it is still possible to start the engine by holding the electrical key transmitter sub-assembly near the engine switch, depressing the brake pedal and pressing the engine switch.

B → See step   36

C → See step   35

A: Go to next step

1. Inspect the transmitter battery.
   1. Remove the transmitter battery from the electrical key transmitter sub-assembly that does not operate. Refer to REMOVAL .

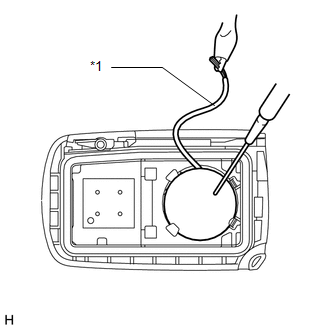

      Fig 6: Transmitter Battery From The Electrical Key Transmitter Sub-Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Attach a lead wire (0.60 mm (0.0236 in.) in diameter or less including wire sheath) with tape or equivalent to the negative terminal.
      TEXT IN ILLUSTRATION



      *1

      Lead Wire

      NOTE:

      Do not wrap the lead wire around a terminal, wedge it between terminals, or solder it. The terminal may be deformed or damaged, and the transmitter battery will not be able to be installed correctly.

   3. Carefully pull the lead wire out from the position shown in the illustration and install the previously removed transmitter battery.
   4. Measure the voltage of the transmitter battery.

      HINT:

      • When measuring the transmitter battery voltage, bring the electrical key transmitter sub-assembly within the lock entry operating range while operating the lock sensor of a door handle to perform the measurement.
      • Perform the measurement when the electrical key transmitter sub-assembly is at room temperature.
      • The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is transmitting. When this voltage is 2.2 V or less the Data List item "Key Low Battery" displays "Yes". Refer to DATA LIST / ACTIVE TEST .

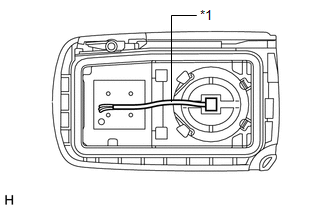

      Fig 7: Measuring Transmitter Battery Voltage

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1

      GND

      Standard Voltage

      Tester Connection	Condition	Specified Condition
      Transmitter battery positive (+) - Transmitter battery negative (-)	Engine switch off, all doors closed and lock sensor touched	2.3 to 3.2 V

NG → See step   35

OK → See step   36

1. Bring the electrical key transmitter sub-assembly near the door control and tire pressure monitoring system receiver assembly and perform a wireless and entry function operation check.

   HINT:

   • When the electrical key transmitter sub-assembly is brought near the door control and tire pressure monitoring system receiver assembly, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   Wireless and entry functions operate normally.

NG → See step   11

OK → AFFECTED BY WAVE INTERFERENCE

1. Measure the voltage according to the value(s) in the table below.

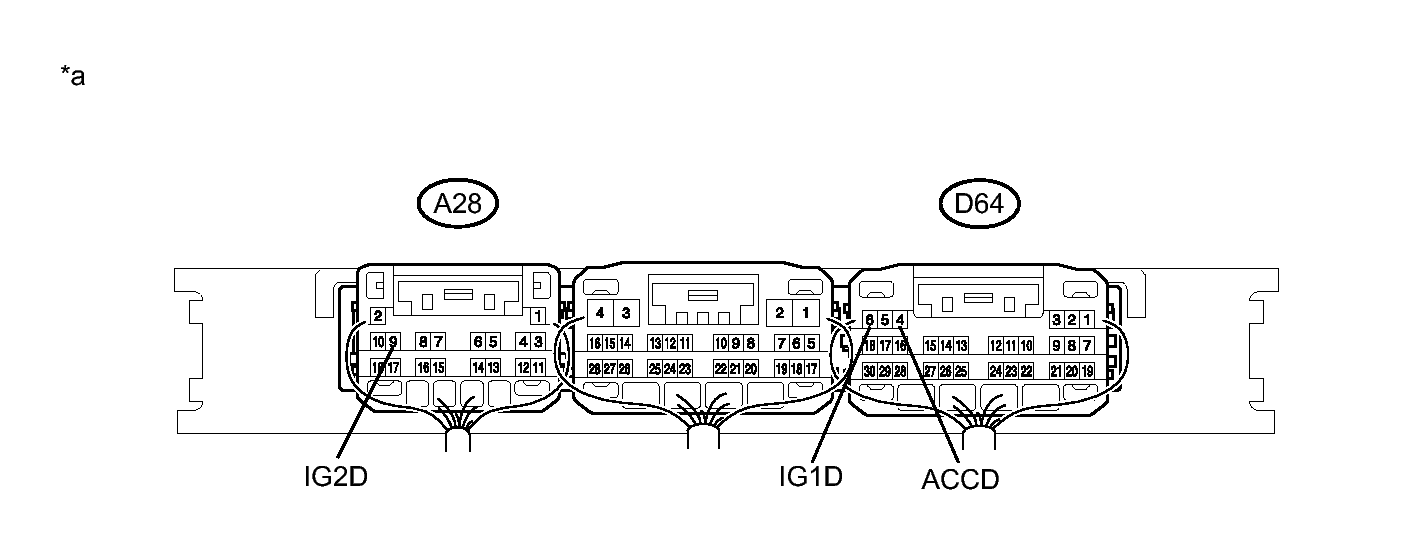

   Fig 8: Checking Certification ECU (Smart Key ECU Assembly)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Component with harness connected (Certification ECU (Smart Key ECU Assembly))

   -

   -

2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the Techstream on.
5. Enter the following menus: Body Electrical / Power Source Control / Data List.
6. Read the Data List according to the display on the Techstream.
   POWER SOURCE CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Power Supply Condition	Power supply state/IG2 ON, ST ON, All OFF, IG1 ON or ACC ON	ALL OFF: Engine switch off ACC ON: Engine switch on (ACC) (ACC relay on) IG1 ON: Engine switch on (IG) (IG1 relay on) IG2 ON: Engine switch on (IG) (IG2 relay on) ST ON: Sending engine start request signal	Since the IG1 and IG2 relays turn on at approximately the same time, IG1 ON may not be displayed (the IG1 relay turns on for a very short time).

7. Measure the voltage while checking the Data List on the Techstream.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D64-6 (IG1D) - Body ground	Engine switch off	Below 1 V
   	Engine switch on (ACC)	Below 1 V
   	Engine switch on (IG)	9 V or higher
   A28-9 (IG2D) - Body ground	Engine switch off	Below 1 V
   	Engine switch on (ACC)	Below 1 V
   	Engine switch on (IG)	9 V or higher
   D64-4 (ACCD) - Body ground	Engine switch off	Below 1 V
   	Engine switch on (IG)	9 V or higher
   	Engine switch on (ACC)	9 V or higher

   HINT:

   Using the Techstream, measure the voltage while confirming the power source mode on the Data List.

NG → See step   32

OK: Go to next step

NG → REPLACE NO. 1 INTEGRATION RELAY

OK: Go to next step

NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK: Go to next step

NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   ACC SW	Engine switch status / ON or OFF	ON: Engine switch on (ACC) OFF: Engine switch off	-
   IG SW	Engine switch status / ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-

   OK

   The Techstream display changes correctly in response to the engine switch operation.

NG → See step   37

OK: Go to next step

1. Disconnect the A28 certification ECU (smart key ECU assembly) connector.

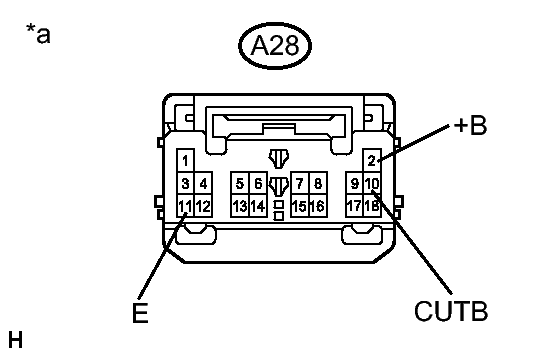

   Fig 9: A28 Certification ECU (smart Key ECU Assembly) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A28-11 (E) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A28-10 (CUTB) - Body ground	Always	11 to 14 V
   A28-2 (+B) - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the D65 certification ECU (smart key ECU assembly) connector.
2. Disconnect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D65-5 (RCO) - J26-10 (+5)	Always	Below 1 Ω
   D65-17 (RDAM) - J26-9 (DATA)	Always	Below 1 Ω
   D65-6 (CSEL) - J26-6 (CSEL)	Always	Below 1 Ω
   D65-5 (RCO) or J26-10 (+5) - Body ground	Always	10 kΩ or higher
   D65-17 (RDAM) or J26-9 (DATA) - Body ground	Always	10 kΩ or higher
   D65-6 (CSEL) or J26-6 (CSEL) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the J26 door control and tire pressure monitoring system receiver assembly connector.

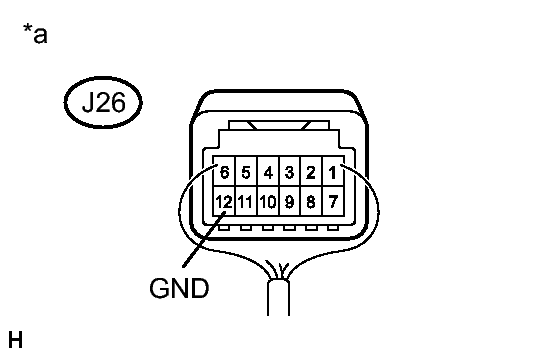

   Fig 10: J26 Door Control And Tire Pressure Monitoring System Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the D65 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J26-12 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control and Tire Pressure Monitoring System Receiver Assembly)

NG → See step   39

OK: Go to next step

1. Connect the D65 certification ECU (smart key ECU assembly) connector.
2. Connect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the voltage according to the value(s) in the table below.

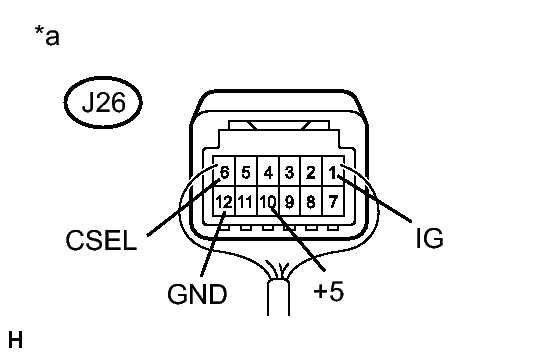

   Fig 11: J26 Door Control And Tire Pressure Monitoring System Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J26-10 (+5) - J26-12 (GND)	Procedure: Engine switch off Electrical key transmitter sub-assembly switch not pressed	Below 1 V
   	Procedure: Engine switch off Electrical key transmitter sub-assembly switch pressed	4.5 to 5.5 V
   J26-6 (CSEL) - J26-12 (GND)	Engine switch off and all doors closed	Below 1 V → 4.4 to 6.5 V → Below 1 V
   J26-1 (IG) - J26-12 (GND)	Engine switch on (IG)	10 to 16 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control and Tire Pressure Monitoring System Receiver Assembly)

NG → See step   32

OK: Go to next step

1. Connect the D65 certification ECU (smart key ECU assembly) connector.
2. Connect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the voltage according to the value(s) in the table below.

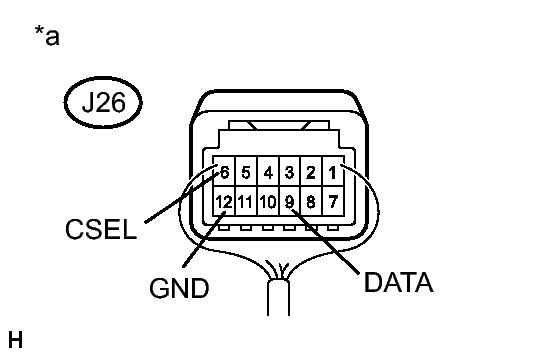

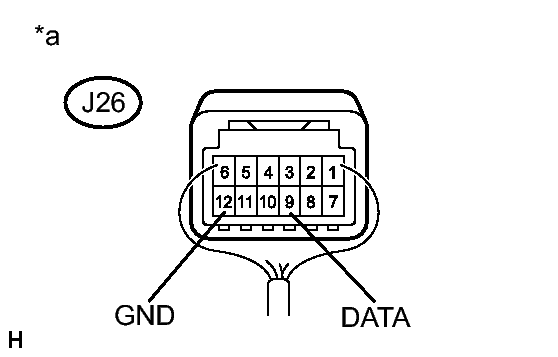

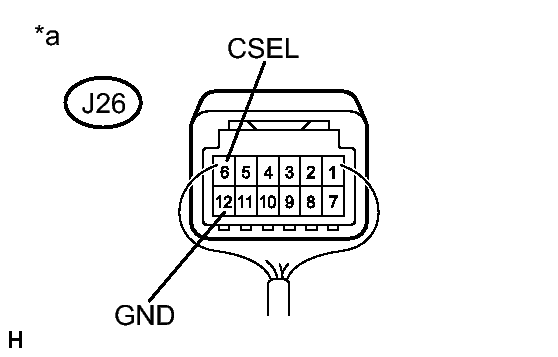

   Fig 12: J26 Door Control And Tire Pressure Monitoring System Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J26-9 (DATA) - J26-12 (GND)	Procedure: All doors closed All doors locked Electrical key transmitter sub-assembly switch pressed	Below 1 V → 10 to 16 V → Below 1 V
   J26-6 (CSEL) - J26-12 (GND)	Procedure: Engine switch off All doors closed	Below 1 V → 4.5 to 6 V → Below 1 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control and Tire Pressure Monitoring System Receiver Assembly)

NG → See step   39

OK: Go to next step

1. Temporarily replace the certification ECU (smart key ECU assembly) with a new one.

   HINT:

   • For replacement. Refer to REMOVAL .
   • For registration. Refer to REGISTRATION .

NEXT: Go to next step

1. Check that the wireless door lock functions operate normally. Refer to OPERATION CHECK .

   OK

   Wireless door lock functions operate normally.

NG → See step   34

OK → END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

1. Bring the electrical key transmitter sub-assembly that was checked first near the door control and tire pressure monitoring system receiver assembly and select the failed channel (the channel in which the buzzer did not sound) to recheck key diagnostic mode. Refer to OPERATION CHECK .

   HINT:

   • When the electrical key transmitter sub-assembly is brought near the door control and tire pressure monitoring system receiver assembly, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   Wireless door lock buzzer sounds.

NG → See step   24

OK → AFFECTED BY WAVE INTERFERENCE

1. Check if there is another electrical key transmitter subassembly available that is already registered to the vehicle.

   Result

   Result	Proceed to
   Another registered electrical key transmitter sub-assembly is not available	A
   Another registered electrical key transmitter sub-assembly is available	B

B → See step   26

A: Go to next step

1. Register a new electrical key transmitter sub-assembly. Refer to REGISTRATION .

NEXT: Go to next step

1. Bring another registered electrical key transmitter sub-assembly near the door control and tire pressure monitoring system receiver assembly and select the failed channel (the channel in which the buzzer did not sound) to recheck key diagnostic mode. Refer to OPERATION CHECK .

   OK

   Wireless door lock buzzer sounds.

NG → See step   27

OK → END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY THAT WAS INSPECTED FIRST WAS DEFECTIVE)

1. Disconnect the D65 certification ECU (smart key ECU assembly) connector.
2. Disconnect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D65-6 (CSEL) - J26-6 (CSEL)	Always	Below 1 Ω
   D65-6 (CSEL) or J26-6 (CSEL) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the D65 certification ECU (smart key ECU assembly) connector.
2. Connect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the voltage according to the value(s) in the table below.
   Fig 13: J26 Door Control And Tire Pressure Monitoring System Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J26-6 (CSEL) - J26-12 (GND)	Engine switch off and all doors closed	Below 1 V → 4.5 to 6 V → Below 1 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control and Tire Pressure Monitoring System Receiver Assembly)

NG → See step   32

OK: Go to next step

1. Connect the D65 certification ECU (smart key ECU assembly) connector.
2. Connect the J26 door control and tire pressure monitoring system receiver assembly connector.
3. Measure the voltage according to the value(s) in the table below.

   HINT:

   Inspection should be performed while the electrical key antenna check in key diagnostic mode is being performed on the failed channel (the channel in which the buzzer did not sound).

   Fig 14: J26 Door Control And Tire Pressure Monitoring System Receiver Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J26-9 (DATA) - J26-12 (GND)	Procedure: All doors closed All doors locked Electrical key transmitter sub-assembly switch pressed*	Below 1 V → 10 to 16 V → Below 1 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Door Control and Tire Pressure Monitoring System Receiver Assembly)

   • *: While the electrical key antennas are being inspected in key diagnostic mode. Refer to OPERATION CHECK .

NG → See step   39

OK: Go to next step

1. Temporarily replace the certification ECU (smart key ECU assembly) with a new one.

   HINT:

   • For replacement. Refer to REMOVAL .
   • For registration. Refer to REGISTRATION .

NEXT: Go to next step

1. Check that the wireless door lock functions operate normally. Refer to OPERATION CHECK .

   OK

   Wireless door lock functions operate normally.

NG → See step   34

OK → END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)
